Wilwood Pedal Assembly Floor Mount-Brake Clutch & Throttle - #340-12410
Wilwood Pedal Assembly Floor Mount-Brake Clutch & Throttle - #340-12410
Couldn't load pickup availability

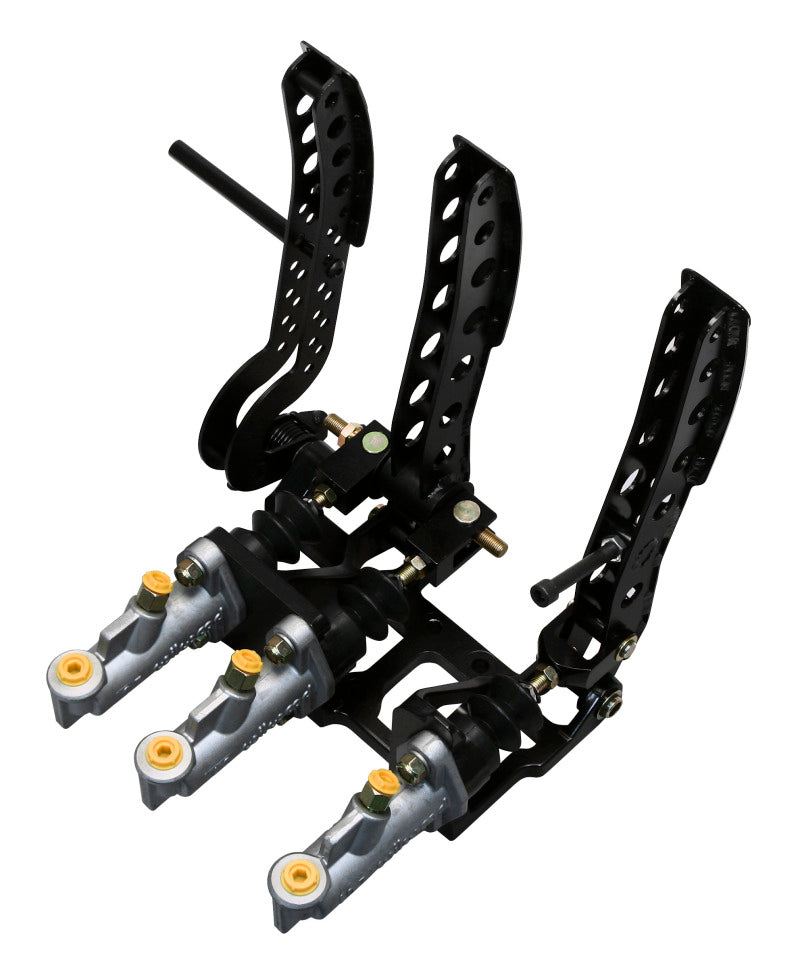

Wilwood’s new floor mount pedal assembly has a brake / clutch / throttle triple pedal design. There are three individual fabricated steel pedals with non-slip pedal pads to control brake, clutch and throttle. Pedal assembly part number 340-12410 is for rear engine cars and does not include a throttle bell crank and linkage. This unit features an aluminum frame with strong lightweight fabricated steel pedal arms. The frame and the pedal arms have a black e-coat finish for protection and an attractive appearance. Also included with the pedal assembly are mounting studs, clevises, and balance bar assembly that is designed to provide smooth and accurate settings of the brake pedal bias. The balance bar can be set and locked down with the jam nut, or attached to a remote cable for quick on-track adjustments. The pedal assembly provides a 5.25 to 1 nominal ratio.
Details
- Manufacturer Part Number: 340-12410
Universal / application-specific component — please verify specifications and compatibility with your brake system before ordering.
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Image shown is a representative product from the same Wilwood series; it is for reference only and the actual product will differ. Refer to the part number and specifications above.
Share
🛡️
Manufacturer's Warranty — Wilwood
▾
Manufacturer's Warranty — Wilwood
Wilwood Engineering publishes a formal Disclaimer of Warranty for its disc brakes, hubs, and racing components (datasheet DS-237). Because these parts are exposed to widely varying installation and operating conditions, Wilwood sells them “as is” and “with all faults,” and makes no warranty of any kind — expressed or implied, including no warranty of merchantability and no implied warranty of fitness for a particular purpose. Purchasers are expected to rely on their own skill and judgement to select the correct part, and it is the installer's responsibility to determine a component's suitability for the application. Racing equipment and brakes must be maintained and checked regularly for fatigue, damage, and wear. If a part arrives with a suspected manufacturing defect, contact us and we'll help you take it up with Wilwood.
Warranty terms are set by the manufacturer and may change. Contact us if you need help with a warranty claim.
