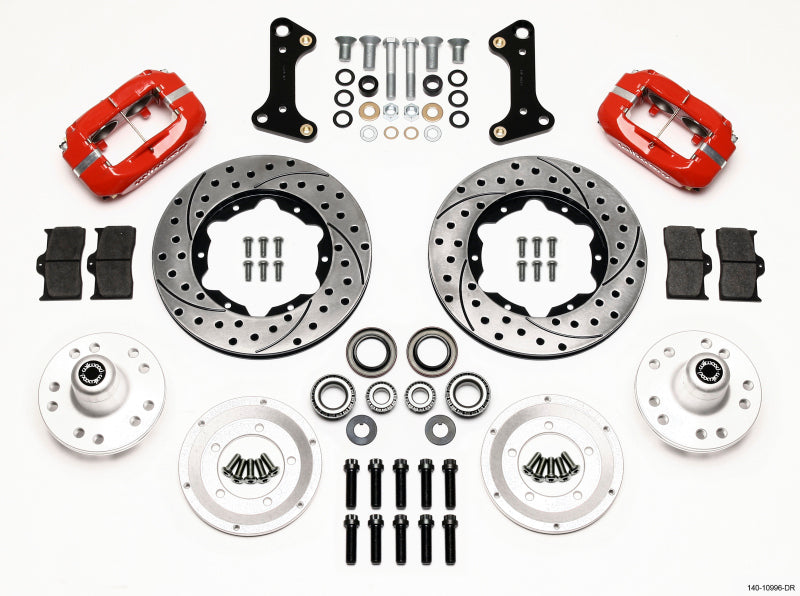

Wilwood Forged Dynalite Front Kit 11.00in Drill-Red 67-69 Camaro 64-72 Nova Chevelle - #140-10996-DR

Wilwood's new limited offset FDL Pro-Series Front Hub Kits for GM 1967-1969 F-Body and 1964-1974 A-Body vehicles offer disc brake upgrade solutions for both OEM Disc & Drum spindles. We have completely redesigned our Pro Series line of brake kits using a larger 11" rotor and new forged aluminum hubs with the express purpose of maintaining the factory wheel position. This new kit widens the track by only +.19" from original drum brake position or narrows by -.31" from the original disc brake rotor assembly. Based on the venerable forged billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. Most vehicle applications require no modifications for installation, and provide plenty of clearance inside popular 15" wheels. FDL Pro-Series kits can be used with either manual or power boost master cylinders. Kits come complete with calipers, rotors, hub assembly, brackets and hardware. Installation requires purchase of additional brake lines shown below.

Fitment & Installation Details

Forged Dynalite Pro Series Front Brake Kit Assembly Schematic

*NOTE: Some applications for this kit have the steering arm to the rear of the spindle and others to the front. Also, some applications have room to mount the bracket and caliper on the steering arm side of the spindle while the steering arm may interfere in other applications. The brackets in this kit may be mounted on either the front or rear side of the spindle. If mounting to the front of the spindle, the right hand bracket will be used on the left hand side of the vehicle and vice versa. This drawing shows a typical 1967-1969 Camaro left side application where the steering arm is to the rear and there is room to mount the caliper on the steering arm side as shown. Determine which way the bracket and caliper will fit best on your application.

Compatible Vehicles for this Brake Kit

This Brake Kit is Compatible with the Following Vehicle Makes:

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

THIS BRAKE KIT HAS A HUB OFFSET OF:

This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle

Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.

• Kit Components & Specifications
• Forged Dynalite Internal Caliper - Red Powder Coat
• SRP Drilled Rotor - Iron - Black Electro Coat
• Hat Offset Dimension (in):
• Hub - Vented Rotor Offset
• Hub - Vented Rotor Offset - Aluminum - Bare
• Products commonly used with this item:
• Length: 14.00 in Size: -3" style="border-width:0px;width:300px;max-width: 300" />
• Length: 14.00 in Size: -3

Please verify exact fitment for your vehicle before ordering.
