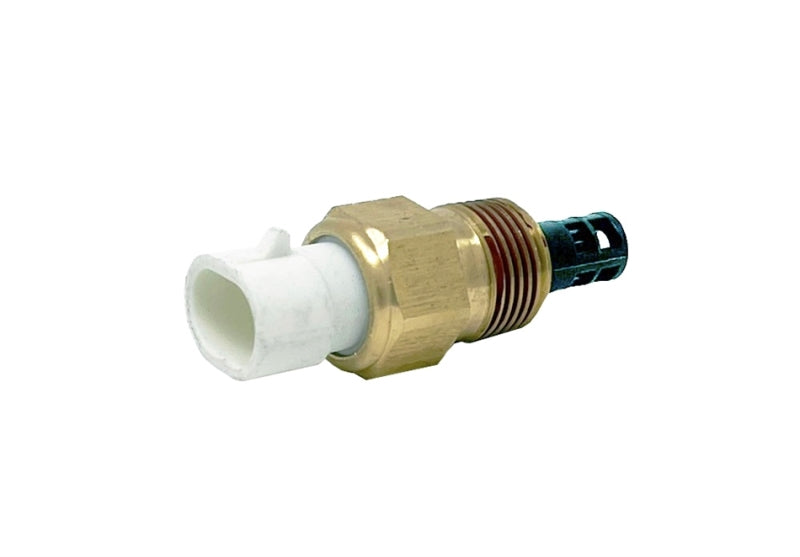

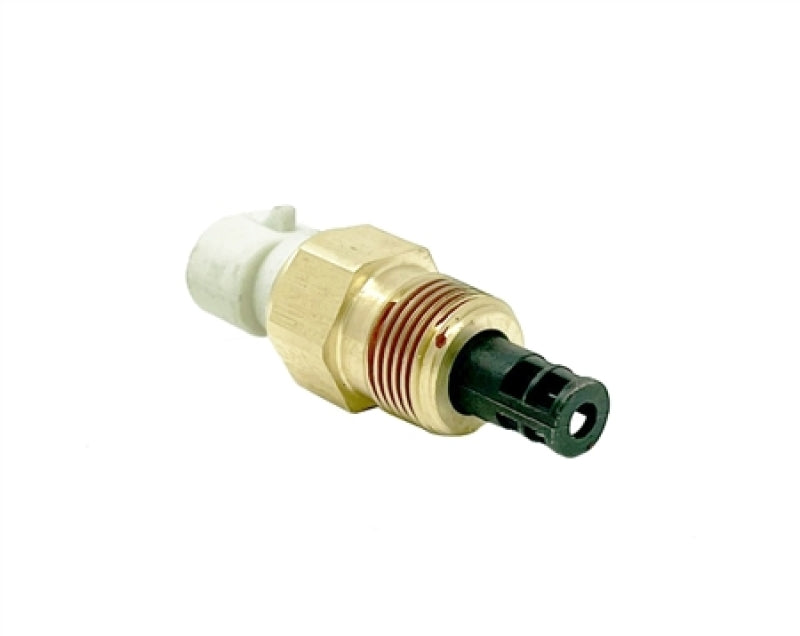

Torque Solution Fast Response IAT Sensor Universal GM Style

Torque Solution Fast Response IAT Sensor is the perfect choice when converting to a speed density setup or just needing to replace your existing GM IAT sensor. Pair this with 1 of our compatible wire harness solutions and weld-on 3/8" bungs for the complete package.

• Fast Response
• Direct Fit for GM Style IAT Sensor
• 1 Year Warranty

Sensor Specifics:

• Typical Voltage Supply: 5V DC
• Operating Temperature: -40 C to 135 C
• Sensor Body Material: Brass
• Hex Size: 18.90 mm (3/4")
• Thread Size: 3/8" - 18 NPTF w/ Thread Sealing Compound
• Sealing Pressure: 200 kPa
• Interchangeable With The Below Part Numbers:
• AC Delco / GM Part #'s: 25036751, 5S1007, AJ0005, TS10077, 213-190, 25037334, 213190, 213192, 25037034, 25037225, 5744430, 8250373340, SU107, 8250367510, 213191, 25036950, 25095187, 3854527, 38545273
• AEM 30-2010
• Haltech HT-010204
• Other GM Style IAT Sensors
• The
• calibration data for TS IAT sensors follows a standard GM-style thermistor
• curve.
• Typical
• resistance values change non-linearly with temperature:
• Temperature (°C)
• Temperature (°F)
• Sensor Resistance (Ω)
• 40°C
• 40°F
• 100,700
• Ω
• 20°C
• 4°F
• 27,240
• Ω
• 0°C
• 32°F
• 9,398
• Ω
• 20°C
• 68°F
• 3,520
• Ω
• 40°C
• 104°F
• 1,459
• Ω
• 60°C
• 140°F
• 667
• Ω
• 80°C
• 176°F
• 332
• Ω
• 100°C
• 212°F
• 177
• Ω
• Key
• Sensor Specifications
• Operating
• Range: -40°C to 135°C (-40°F to 275°F)
• <span style="font-size:11.0pt;mso-ascii

Application: Universal GM Style IAT Sensor — verify fitment for your setup.

Manufacturer Part Number: TS-ES-IAT-GM
