Torque Solution Extended Port Matched Oil Drain Flange: -10AN for T3/T4 PTE / Turbonetics
Torque Solution Extended Port Matched Oil Drain Flange: -10AN for T3/T4 PTE / Turbonetics
Couldn't load pickup availability

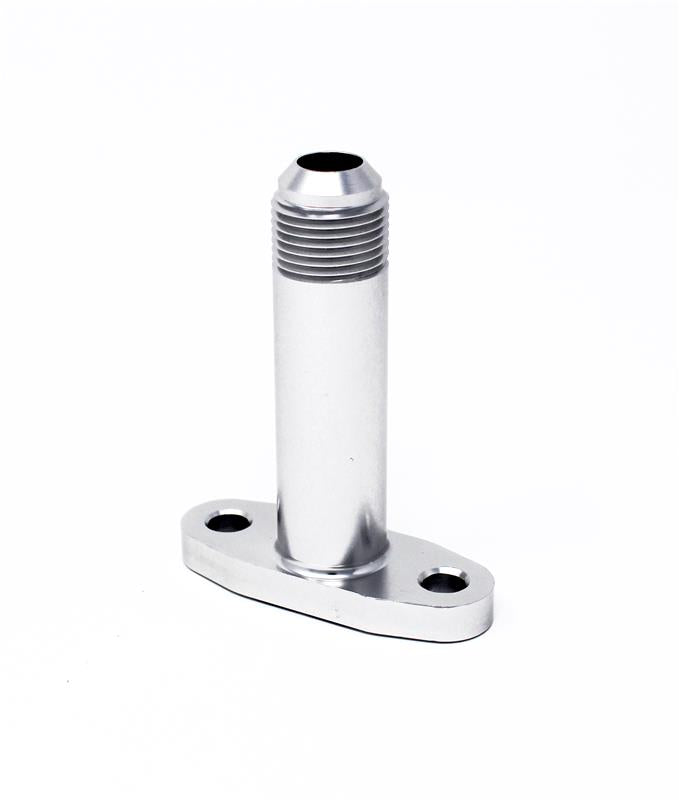

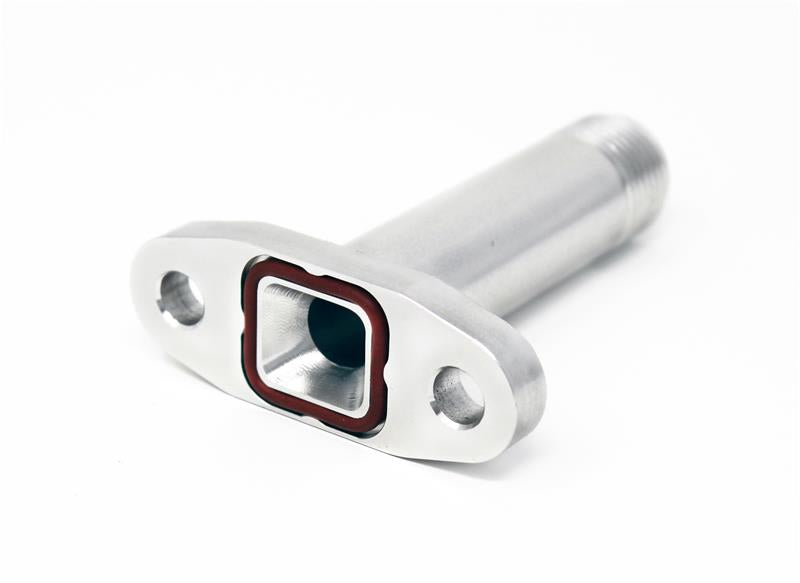

Torque Solution Extended Port Matched Oil Drain Flange is designed to give you extra clearance from the turbo housings making for an easier install on T3/T4 PTE, Borg Warner, Turbonetics, Comp, etc turbos. Made from CNC 6061 billet aluminum and integrated with a -10AN flare fitting. The bottom of the flange is also port matched with a tapered bore to promote the oil flow and to prevent oil pooling in the turbo. We have also incorporated a recess with an o-ring gasket for a leak proof seal.
- Integrated -10AN Flare Fitting
- 2.5" / 60mm Extended Height
- 3 1/8" / 80mm Overall Length
- Port Matched Drain Hole
- High Temp O-ring Gasket
- CNC'd Billet Aluminum
- Limited Lifetime Warranty
Application: -10AN Flare for T3/T4 PTE, Turbonetics, Comp, Borg Warner (except EFR Series) — verify fitment for your setup.
Manufacturer Part Number: TS-UNI-588
Images are for illustrative purposes only. Actual product may vary.
