Torque Solution Billet MAC Valve Mount Bracket - For 3/4 Port MAC Solenoid Valves

Torque Solution Billet MAC Valve Mount Bracket - For 3/4 Port MAC Solenoid Valves

Regular price $ 31.65
Regular price $ 34.82 Sale price $ 31.65
Free shipping on orders over $99 (contiguous U.S.) — flat $10.99 under $99. Shipping details
Quantity
✓ In Stock Ready to Ship

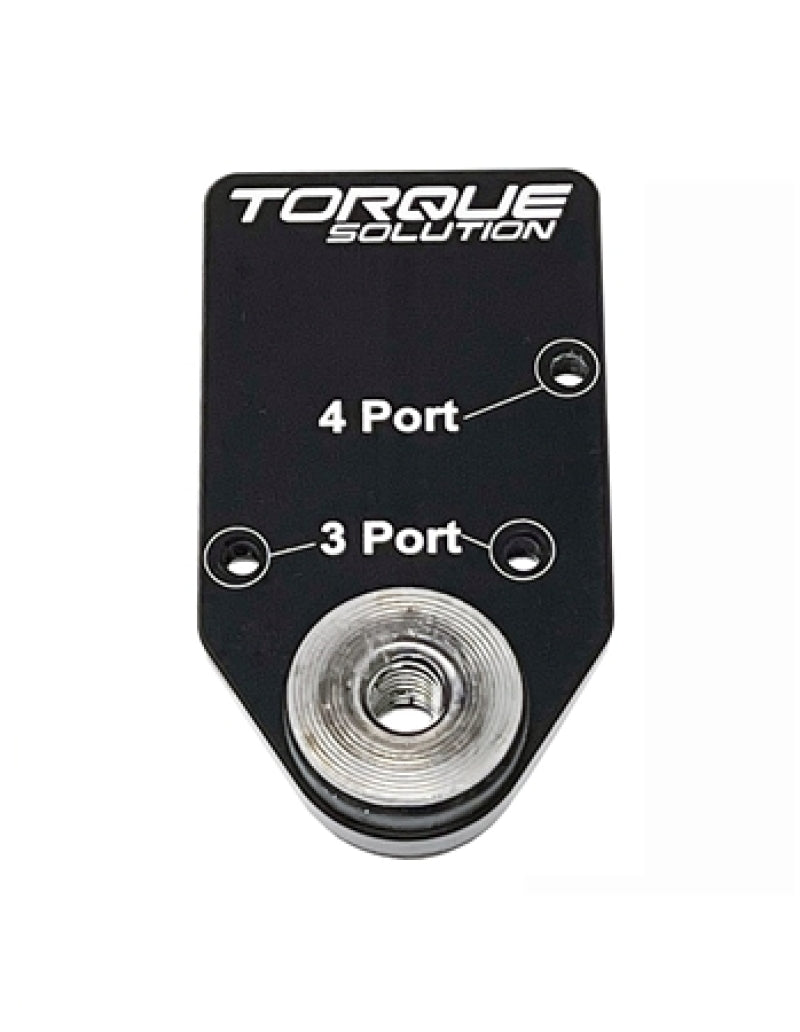

Torque Solution Billet MAC Valve Mount Bracket was designed to fit either a 3 or 4 Port MAC Solenoid Valve. Our unique design adds a rubber insulator to protect against vibration. Our design also provides multiple mounting options: 1. Mount from the front directly to an existing M6 threaded hole on your vehicle; 2. Mount to a plate from the front with the M6 hardware; 3. Mount to a plate from the back using the supplied M6 hardware.

  • CNC Billet Aluminum
  • Black Anodized w/ Torque Solution Logo
  • Rubber Insulated Mounting Point
  • Fits 3 or 4 Port MAC Solenoid Valves
  • Stainless Steel Hardware
  • Limited Lifetime Warranty

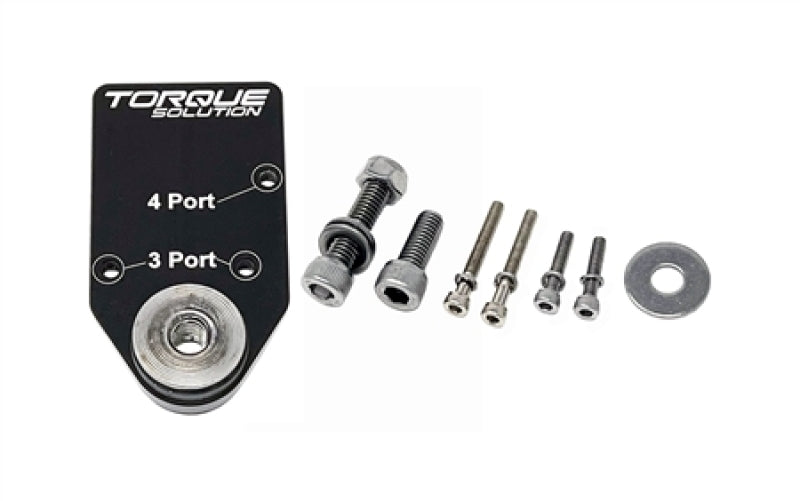

Includes:

  • Billet Mounting Bracket w/ Rubber Insulator/Stainless M6 Insert
  • Black Powder Coated Steel Mounting Bracket (3)
  • M3 x 25 Stainless Socket Cap Bolt (2) (for 4 port)
  • M3 x 20 Stainless Socket Cap Bolt (2) (for 3 port)
  • M3 Stainless Split Ring Lock Washer (2) (for 4 port)
  • M6 x 16 Stainless Socket Cap Bolt (1) (Used to mount from the back with threaded insert)
  • M6 Stainless Fender Washer (1) (Used to mount from the back with threaded insert)
  • M6 x 26 Stainless Socket Cap (1) (Used to mount from the front to M6 bolt hole or a mount plate)
  • M6 Stainless Flat Washer (2) (Used to mount from the front to a mount plate)
  • M6 Stainless Nyloc Nut (1) (Used to mount from the front to a mount plate)

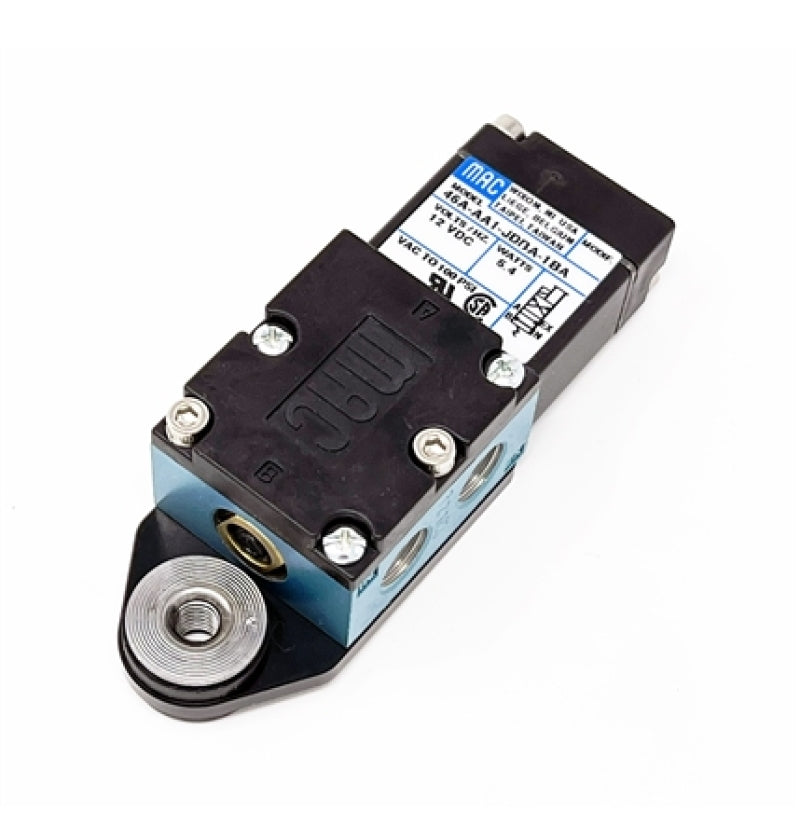

  • *Note: MAC Valve is not included. Fits newer style MAC valves only, which are part #'s: 36A-AAA-JDBA-1BA & 46A-AA1-JDBA-1BA.

Application: Fits 3 or 4 Port MAC Solenoid Valves — verify fitment for your setup.

Manufacturer Part Number: TS-UNI-646
