• Torque Solution 06-21 Subaru STI / 08-14 Subaru WRX Big Bore 76mm Throttle Body Adapter - Black
1 1

Torque Solution

Torque Solution 06-21 Subaru STI / 08-14 Subaru WRX Big Bore 76mm Throttle Body Adapter - Black

Torque Solution 06-21 Subaru STI / 08-14 Subaru WRX Big Bore 76mm Throttle Body Adapter - Black

$ 62.42
$ 68.67 $ 62.42
✓ In Stock • Ready to Ship
Shipping calculated at checkout.

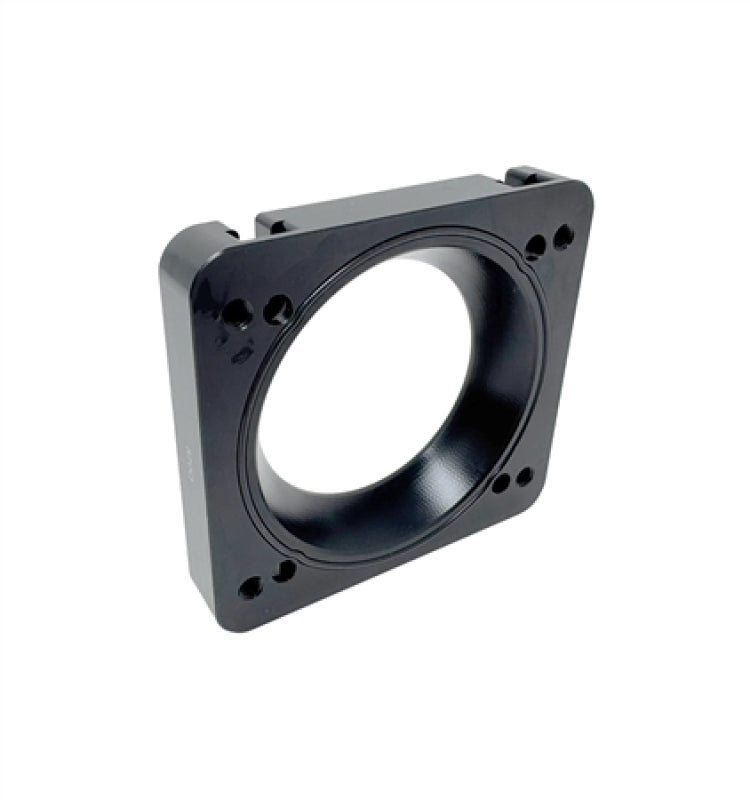

Torque Solution Big Bore 76mm Throttle Body Adapter for Subaru EJ engines using a standard bore intake manifold. Our adapter allows you to swap to a Toyota 76mm big bore throttle body which provides a 25% increase in size over OEM. Made from CNC billet aluminum that we anodize for corrosion resistance, provide o-ring gaskets for a leak free seal, and all the necessary hardware to complete the install.

  • CNC'd 6061 Billet Aluminum
  • Anodized For Added Corrosion Resistance
  • O-ring Gaskets For A Leak Free Seal
  • Limited Lifetime Warranty

Includes:

  • Billet Spacer (1)
  • Large O-ring (2)
  • Small O-ring (4) (holds m6x20 screws in place on spacer)
  • M6-1.0 x 20 Low Profile Zinc Socket Cap Bolt (4) (bolts spacer to IM)
  • M6-1.0 x 50 Stainless Steel Socket Cap Bolt (4) (bolts the TB to the spacer)
  • M6 Zinc Flat Washer (4) (For TB to spacer)
  • Rivet (7) (to rivet the OEM TB motor to the big bore TB)
  • M4 Nylock Nut (used as rivet spacer tool for center of motor cover near harness plug to TB)
  • Confirmed To Fit The Following Intake Manifolds:
  • Subaru STI OEM Intake Manifold
  • Torque Solution Intake Manifold
  • Cosworth Intake Manifold
  • AMS Intake Manifold
  • Confirmed to work the Big Bore TB Part #'s:
  • Toyota 22030-0S010 / 220300S010
  • Toyota 22030-0F010 / 220300F010
  • May work with other Toyota TB's, but the 2 above are confirmed.

Fits:

  • Subaru STI 2004-2005 (Requires 2006+ riveted throttle body)
  • Subaru STI 2006-2021
  • Subaru WRX 2006-2007
  • Subaru WRX 2008-2014 (must swap to a confirmed fit intake manifold)
  • Subaru Forester XT 2004-2008

Important Install Notes:

  • Intended for high HP builds.
  • First consult with your tuner to ensure they will be able to make this TB setup work for you.
  • You must swap over the motor from a Subaru DBW throttle body found on a 2006-21 STI, 2006-07 WRX, and 2004-08 Forester XT.
  • Must have FMIC piping. (piping modification may be necessary)
  • You will need a new transition coupler and clamp to fit the big bore TB (3.5") to your piping.
  • You will need an aftermarket MAP sensor and relocate it to the intake manifold or a vacuum block.
  • You will need to have your tuner adjust your tune for the big bore TB and aftermarket MAP sensor.

Vehicle Fitment

  • 2004-2008 Subaru Forester XT
  • 2004-2011 Subaru Impreza WRX STI
  • 2012-2014 Subaru WRX
  • 2013-2021 Subaru WRX STI

Please verify exact fitment for your trim and engine before ordering.

Manufacturer Part Number: TS-SU-870O-BK

Images are for illustrative purposes only. Actual product may vary.

Emissions Note: This product is not CARB approved and is not legal for sale or use on pollution-controlled motor vehicles in California, or in states that have adopted California emission standards. It is intended for off-road / racing use only. It is the responsibility of the installer/end-user to ensure compliance with all applicable federal, state and local emissions regulations.

⚠ WARNING (California Proposition 65): This product can expose you to chemicals which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Manufacturer's Warranty — Torque Solution

Torque Solution states a Limited Lifetime Warranty on its manufactured billet aluminum and polyurethane parts — engine, transmission and differential mounts, shifter and suspension bushings, blow off valve adapters, exhaust hangers, flanges and fittings. Its electronic parts (Fast Response IAT sensors and PNP speed-density adapter harnesses) carry a 1-year warranty instead. Wear and consumable items — turbo blankets, intake gaskets, exhaust wrap and heat tape — are sold without a stated warranty term. Coverage applies to the original purchaser against manufacturing defects; check the individual product listing for the term that applies to that part.

Warranty terms are set by the manufacturer and may change. Full details and claims are handled directly by Torque Solution. Contact us if you need help with a warranty claim.
