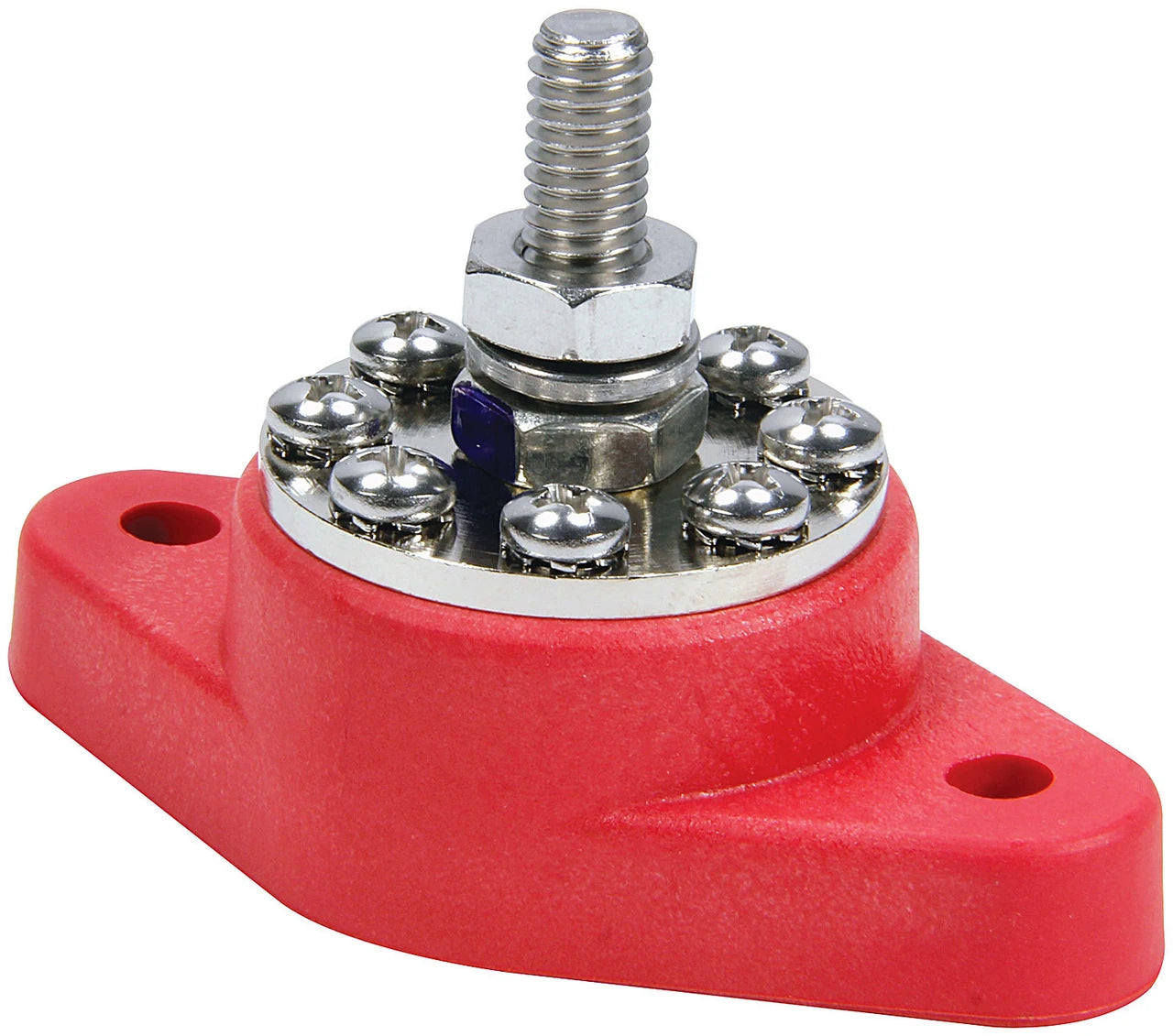

QuickCar Red 8 Point Distribution Post 57-805

QuickCar Red 8 Point Distribution Post 57-805

$ 23.78
$ 26.16 $ 23.78
Free shipping on orders over $99 (contiguous U.S.) — flat $10.99 under $99. Shipping details
✓ In Stock • Ready to Ship

Distribution Post - 8 Terminal Busbar, Red, each 57-805

Power Distribution Post Red 8 Location

Key Features

  • Contains 8 points to distribute electrical current.
  • One large inlet post accepts 5/16" ring terminals as the additional 8 posts accept #8 ring terminals.
  • Includes eight (8) #8-32 stainless steel screws.
  • All posts include locking washers.
  • Each small posts is capable of continuously withstanding 15 amps.
  • This Distribution Post has two (2) 1/4" holes used for mounting it on a flat surface, mounting bolts not included.
  • Maximum rating: 180 amps, with 20 amps per connection max.
  • Glass-filled nylon base.
  • Nickel-plated copper connection plate.
  • Available in black (57-806) or red (57-805).

Vehicle Fitment

  • Universal fitment — this QuickCar component is selected by specification rather than by vehicle. Please confirm dimensions, thread size and clearance against your application before ordering.

Specifications

  • Manufacturer Part Number: 57-805
  • Shipping Dimensions: 6.95 x 4 x 2.25 in
  • Shipping Weight: 0.275 lb
  • UPC: 810165041981

Manufacturer Part Number: 57-805

Images are for illustrative purposes only. Actual product may vary.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Manufacturer's Warranty — QuickCar

QuickCar Racing Products does not publish a fixed warranty period. Coverage is handled as a return-and-inspection process: the product must be in an unaltered, unchanged state from its original condition and no more than one (1) year old — two (2) years for scales. An RMA number must be requested from QuickCar at 800-997-7333 before anything is shipped back; write the RMA number on the outside of the box and include your contact information and a description of the problem in a note inside the box. Warranty parts are inspected on receipt and may be deemed non-returnable if the failure was caused by misuse of the part. Custom parts are not returnable for credit, though they can sometimes be repaired. Retain your proof of purchase; claims are handled by the manufacturer.

Warranty terms are set by the manufacturer and may change. Full details and claims are handled directly by QuickCar. Contact us if you need help with a warranty claim.
