QuickCar Extreme Single Ignition 5 Switch Panel 50-7731
QuickCar Extreme Single Ignition 5 Switch Panel 50-7731
Couldn't load pickup availability

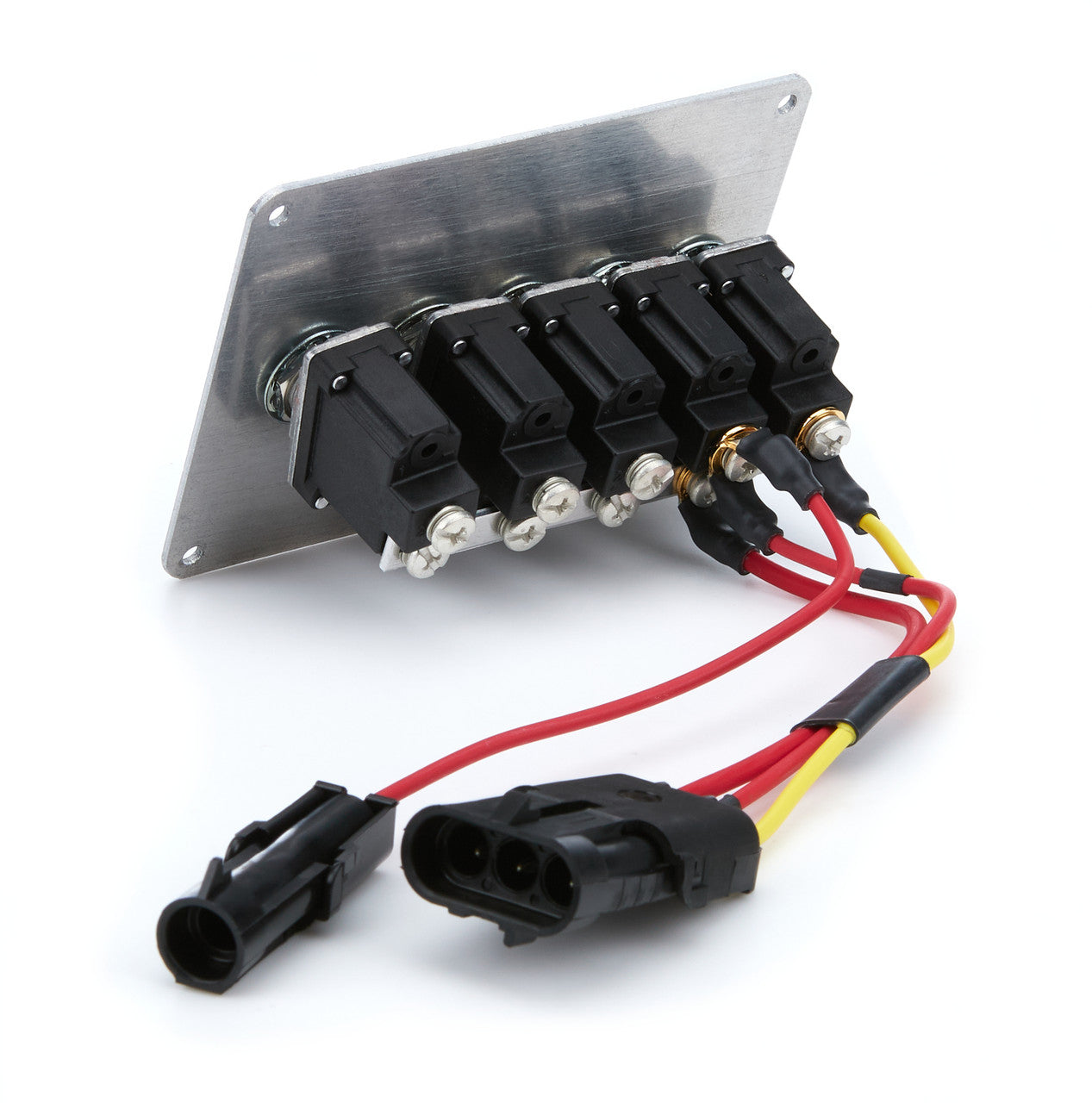

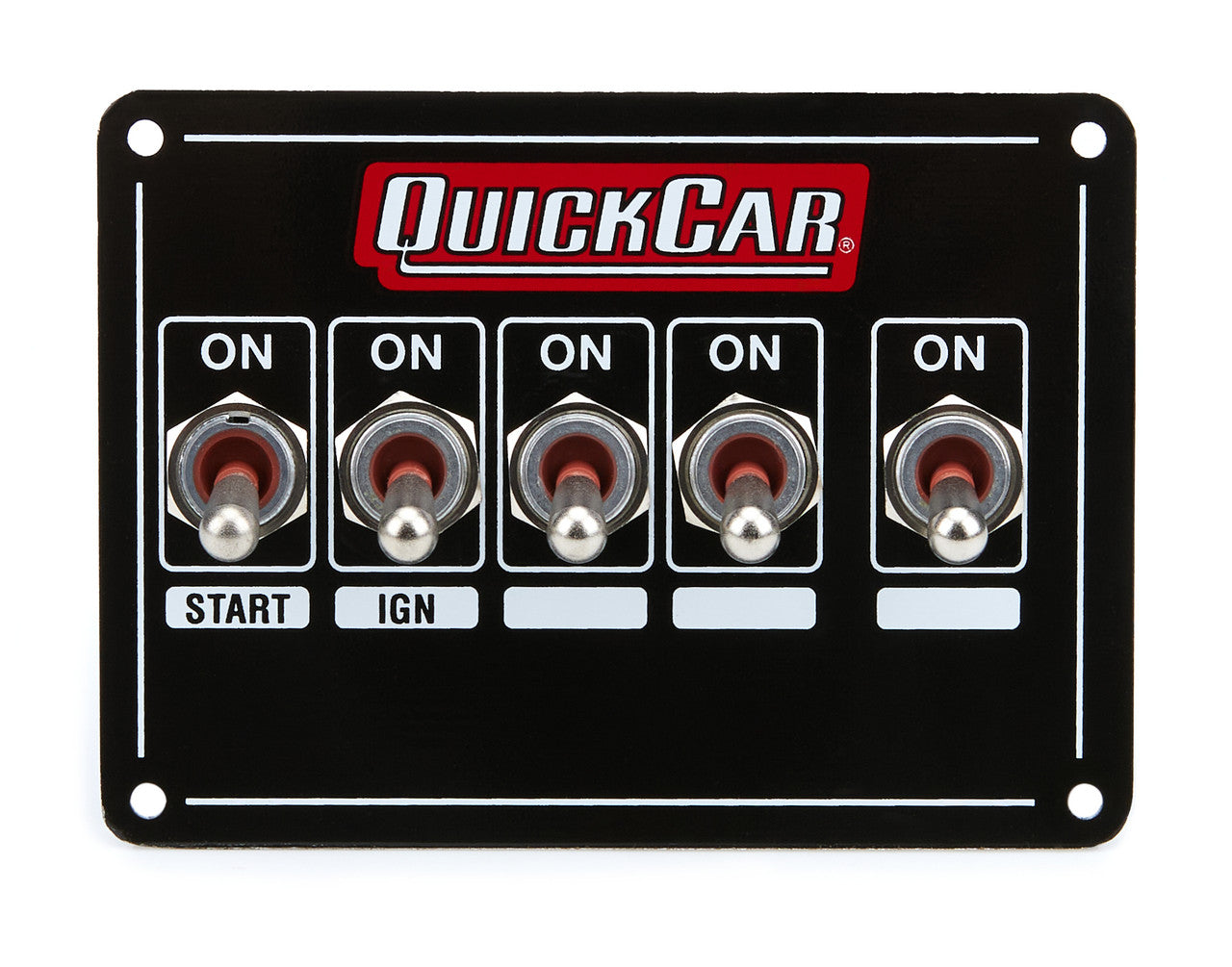

Switch Panel - Black Plate, Weatherproof Start Switch, Ignition Switch, 3 Accessory Switches 50-7731
Ignition Panel - Single Ing. with Acc Switches
Key Features
- Plug-n-Play installation: Direct fit to QuickCar wiring harnesses for Single Ignition Box Systems and HEI Systems.
- Panel Dimensions: 4-1/8" Wide x 3" Tall.
- Switch Panel includes 1 waterproof momentary starter switch, 1 single pole on/off ignition switch, and 3 on/off accessory switches.
- High current specially wound copper wiring that provide high tensile strength.
- Installed in a black plate.
- Panel comes assembled and pre-wired with mounting holes already punched out to make installation simple.
- All connectors are professionally crimped and soldered for superior quality.
- All connections are /tin plated for improved current transfer/resistance to oxidation.
- Note: Harness and installation hardware not included.
Vehicle Fitment
- Universal fitment โ this QuickCar component is selected by specification rather than by vehicle. Please confirm dimensions, thread size and clearance against your application before ordering.
Specifications
- Manufacturer Part Number: 50-7731
- Type: Switch Panel
- Shipping Dimensions: 5.8 x 5.35 x 5.25 in
- Shipping Weight: 0.62 lb
- UPC: 819616011139
Manufacturer Part Number: 50-7731
Images are for illustrative purposes only. Actual product may vary.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Share
๐ก๏ธ
Manufacturer's Warranty โ QuickCar
โพ
Manufacturer's Warranty โ QuickCar
QuickCar Racing Products does not publish a fixed warranty period. Coverage is handled as a return-and-inspection process: the product must be in an unaltered, unchanged state from its original condition and no more than one (1) year old — two (2) years for scales. An RMA number must be requested from QuickCar at 800-997-7333 before anything is shipped back; write the RMA number on the outside of the box and include your contact information and a description of the problem in a note inside the box. Warranty parts are inspected on receipt and may be deemed non-returnable if the failure was caused by misuse of the part. Custom parts are not returnable for credit, though they can sometimes be repaired. Retain your proof of purchase; claims are handled by the manufacturer.
Warranty terms are set by the manufacturer and may change. Full details and claims are handled directly by QuickCar. Contact us if you need help with a warranty claim.
