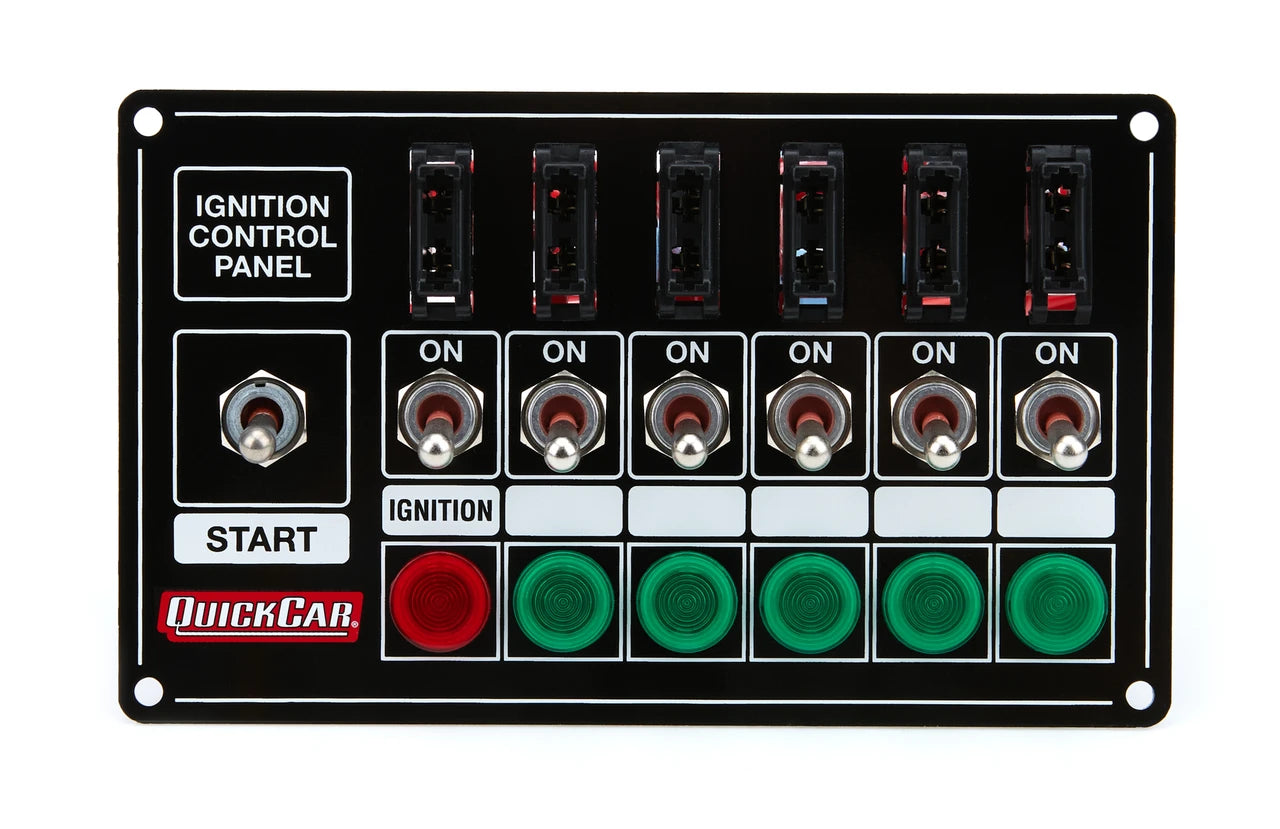

QuickCar Extreme Fused & Lit Single Ignition 7 Switch Panel 50-7164

QuickCar Extreme Fused & Lit Single Ignition 7 Switch Panel 50-7164

$ 284.95
$ 313.45 $ 284.95
Free shipping on orders over $99 (contiguous U.S.) — flat $10.99 under $99. Shipping details
✓ In Stock • Only 1 left

Switch Panel - Black Plate, Weatherproof Start Switch, Ignition Switch, 5 Accessory Switches, Lights, ATC Fused 50-7164

For different colored indicator lights, call us! 1-800-997-7333.

Ignition Panel - Extreme Fused with Lights

Key Features

  • Plug-n-Play installation: No Wiring Harness Necessary.
  • Panel Dimensions: 6-7/8" Wide x 4-1/8" Tall.
  • Switch Panel includes 1 waterproof micro momentary starter switch and 6 single pole on/off micro switches for ignition and accessories.
  • Ignition and accessory switches all have corresponding on/off indicator lights and ATC fuse holders.
  • Installed in a black plate.

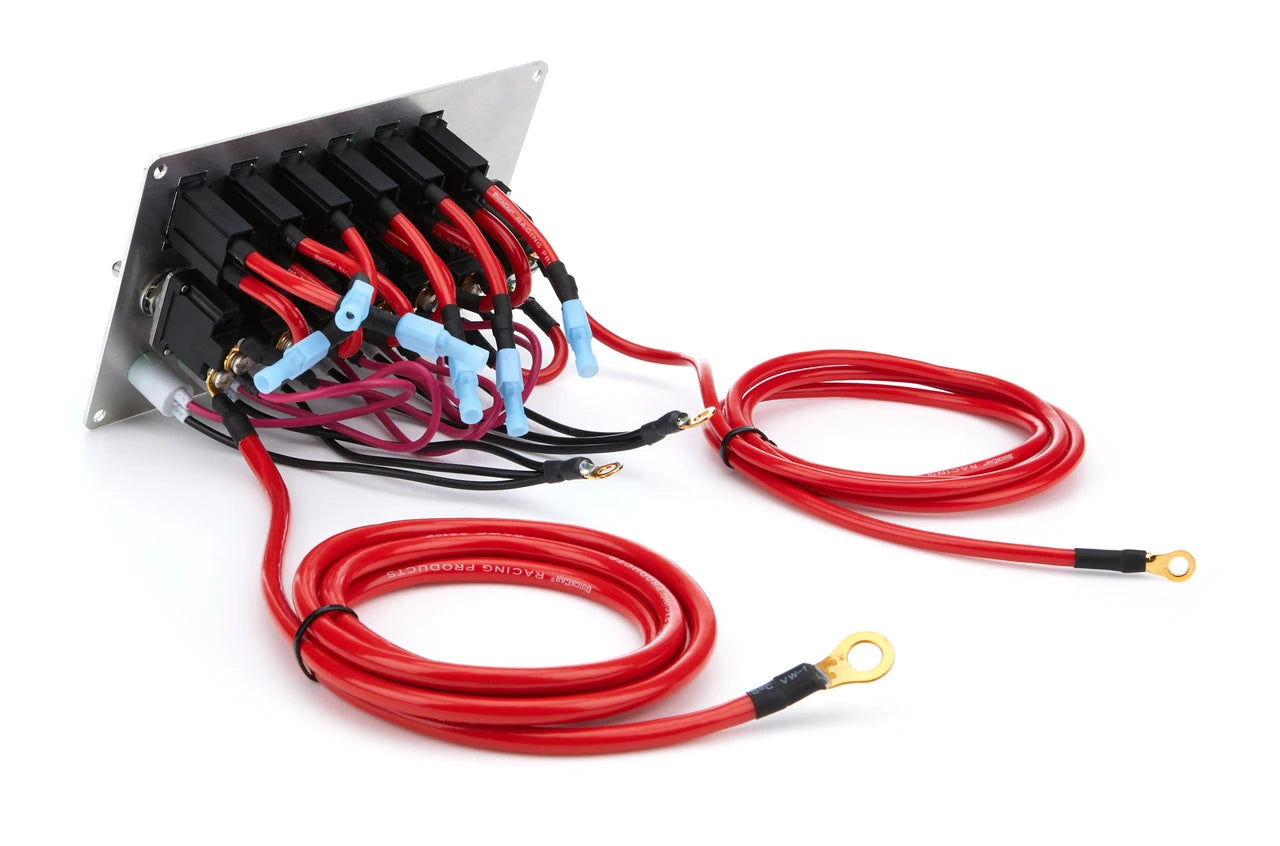

  • High current specially wound copper wiring to provide high tensile strength.
  • All connectors are professionally crimped and soldered for superior quality.
  • All connections are /tin plated for improved current transfer/resistance to oxidation.
  • Fuses not included.

Vehicle Fitment

  • Universal fitment — this QuickCar component is selected by specification rather than by vehicle. Please confirm dimensions, thread size and clearance against your application before ordering.

Specifications

  • Manufacturer Part Number: 50-7164
  • Type: Switch Panel
  • Shipping Dimensions: 7.2 x 6.6 x 6.1 in
  • Shipping Weight: 1.65 lb
  • UPC: 819616011085

Manufacturer Part Number: 50-7164

Images are for illustrative purposes only. Actual product may vary.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Manufacturer's Warranty — QuickCar

QuickCar Racing Products does not publish a fixed warranty period. Coverage is handled as a return-and-inspection process: the product must be in an unaltered, unchanged state from its original condition and no more than one (1) year old — two (2) years for scales. An RMA number must be requested from QuickCar at 800-997-7333 before anything is shipped back; write the RMA number on the outside of the box and include your contact information and a description of the problem in a note inside the box. Warranty parts are inspected on receipt and may be deemed non-returnable if the failure was caused by misuse of the part. Custom parts are not returnable for credit, though they can sometimes be repaired. Retain your proof of purchase; claims are handled by the manufacturer.

Warranty terms are set by the manufacturer and may change. Full details and claims are handled directly by QuickCar. Contact us if you need help with a warranty claim.
