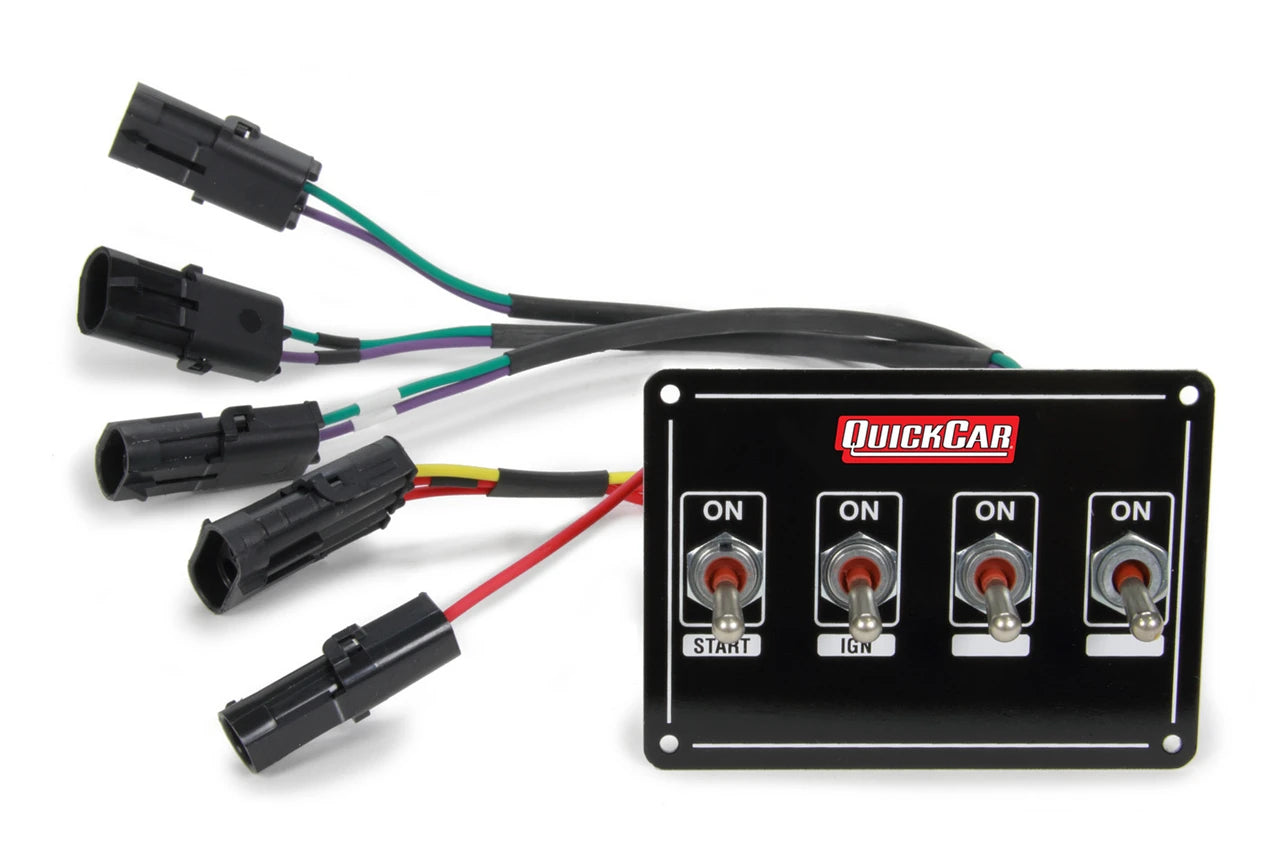

QuickCar Extreme Dual Magnetic Pickup 4 Switch Panel 50-7414

QuickCar Extreme Dual Magnetic Pickup 4 Switch Panel 50-7414

$ 189.95
$ 208.95 $ 189.95
Free shipping on orders over $99 (contiguous U.S.) — flat $10.99 under $99. Shipping details
✓ In Stock • Only 1 left

Switch Panel - Black Plate, Weatherproof Start Switch, Ignition Switch, Accessory Switch, Magnetic Pickup Switch 50-7414

Ignition Panel Extreme 4 4-Switch Dual Mag. Pckup

Key Features

  • Plug-n-Play installation: Direct fit to QuickCar Wiring Harness for Single Ignition Box with Dual Magnetic Pickup Systems (50-2034).
  • Panel Dimensions: 4-1/8" Wide x 3" Tall.
  • Switch Panel includes 1 waterproof micro momentary starter switch, 2 single pole on/off micro switches for ignition and an accessory, and a micro cross over switch to swap magnetic pickups (Distributor/Crank Trigger).
  • Installed in a black plate.
  • High current specially wound copper wiring to provide high tensile strength.
  • All connectors are professionally crimped and soldered for superior quality.
  • All connections are /tin plated for improved current transfer/resistance to oxidation.

Vehicle Fitment

  • Universal fitment — this QuickCar component is selected by specification rather than by vehicle. Please confirm dimensions, thread size and clearance against your application before ordering.

Specifications

  • Manufacturer Part Number: 50-7414
  • Type: Switch Panel
  • Shipping Dimensions: 5.8 x 5.55 x 5.25 in
  • Shipping Weight: 0.785 lb
  • UPC: 819616018701

Manufacturer Part Number: 50-7414

Images are for illustrative purposes only. Actual product may vary.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Manufacturer's Warranty — QuickCar

QuickCar Racing Products does not publish a fixed warranty period. Coverage is handled as a return-and-inspection process: the product must be in an unaltered, unchanged state from its original condition and no more than one (1) year old — two (2) years for scales. An RMA number must be requested from QuickCar at 800-997-7333 before anything is shipped back; write the RMA number on the outside of the box and include your contact information and a description of the problem in a note inside the box. Warranty parts are inspected on receipt and may be deemed non-returnable if the failure was caused by misuse of the part. Custom parts are not returnable for credit, though they can sometimes be repaired. Retain your proof of purchase; claims are handled by the manufacturer.

Warranty terms are set by the manufacturer and may change. Full details and claims are handled directly by QuickCar. Contact us if you need help with a warranty claim.
