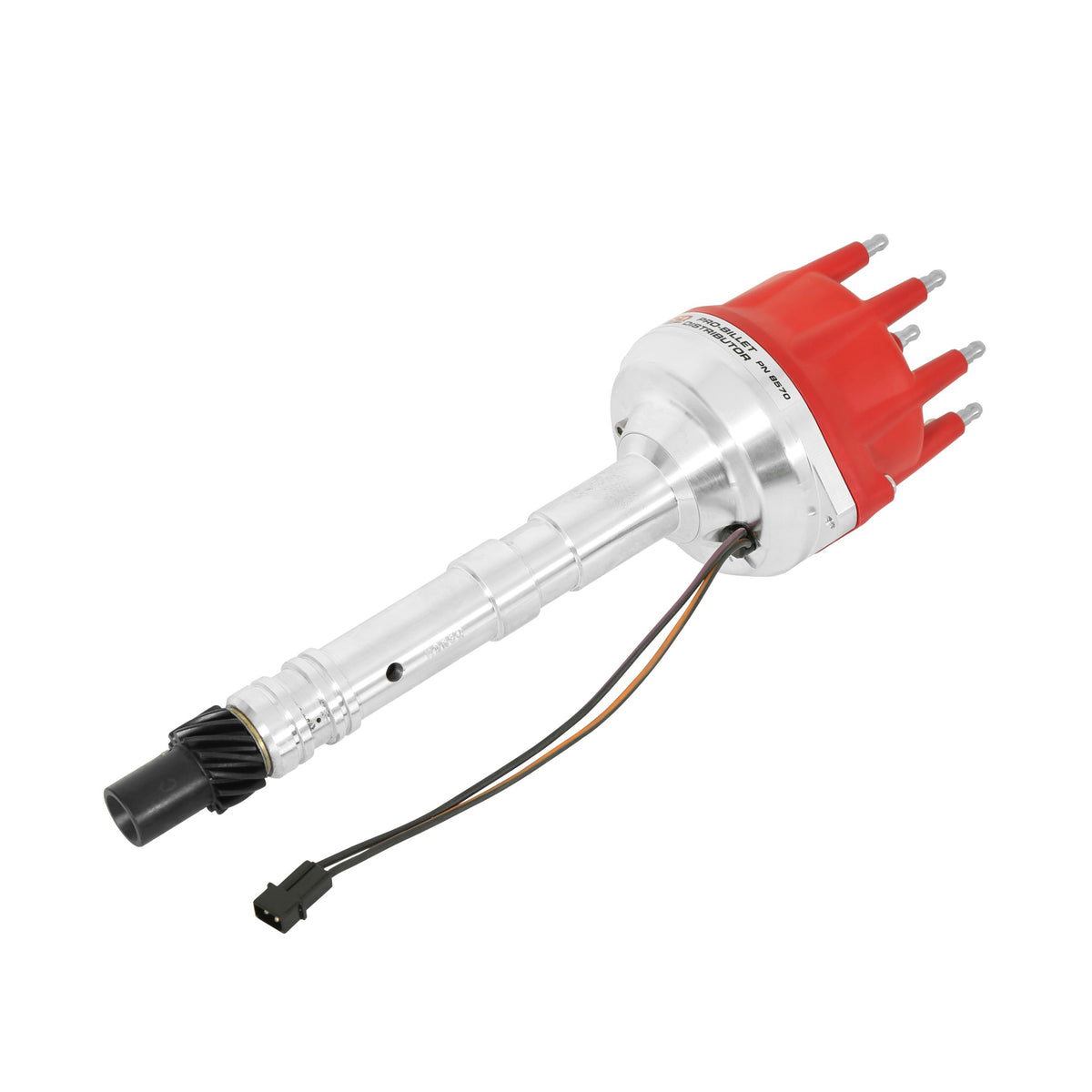

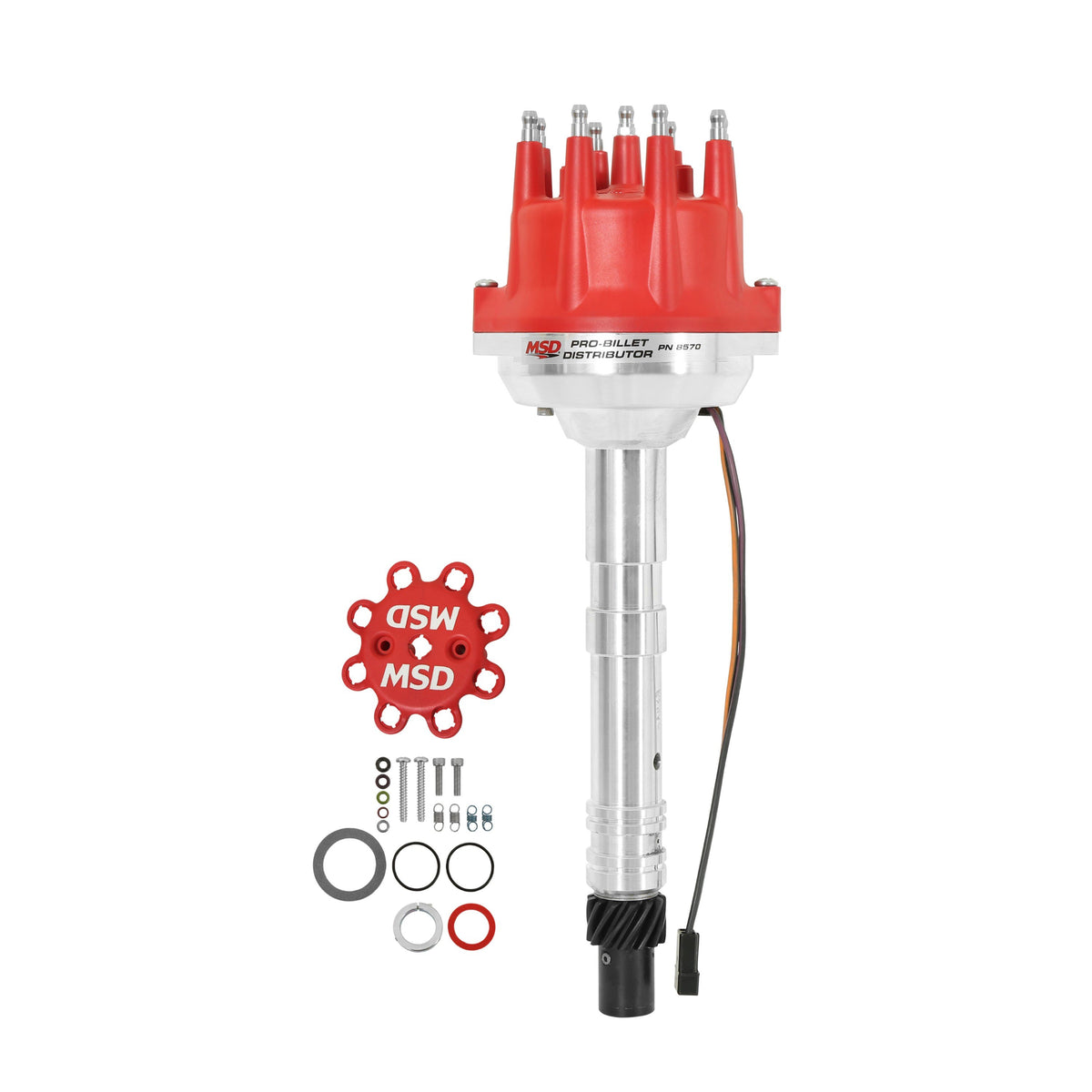

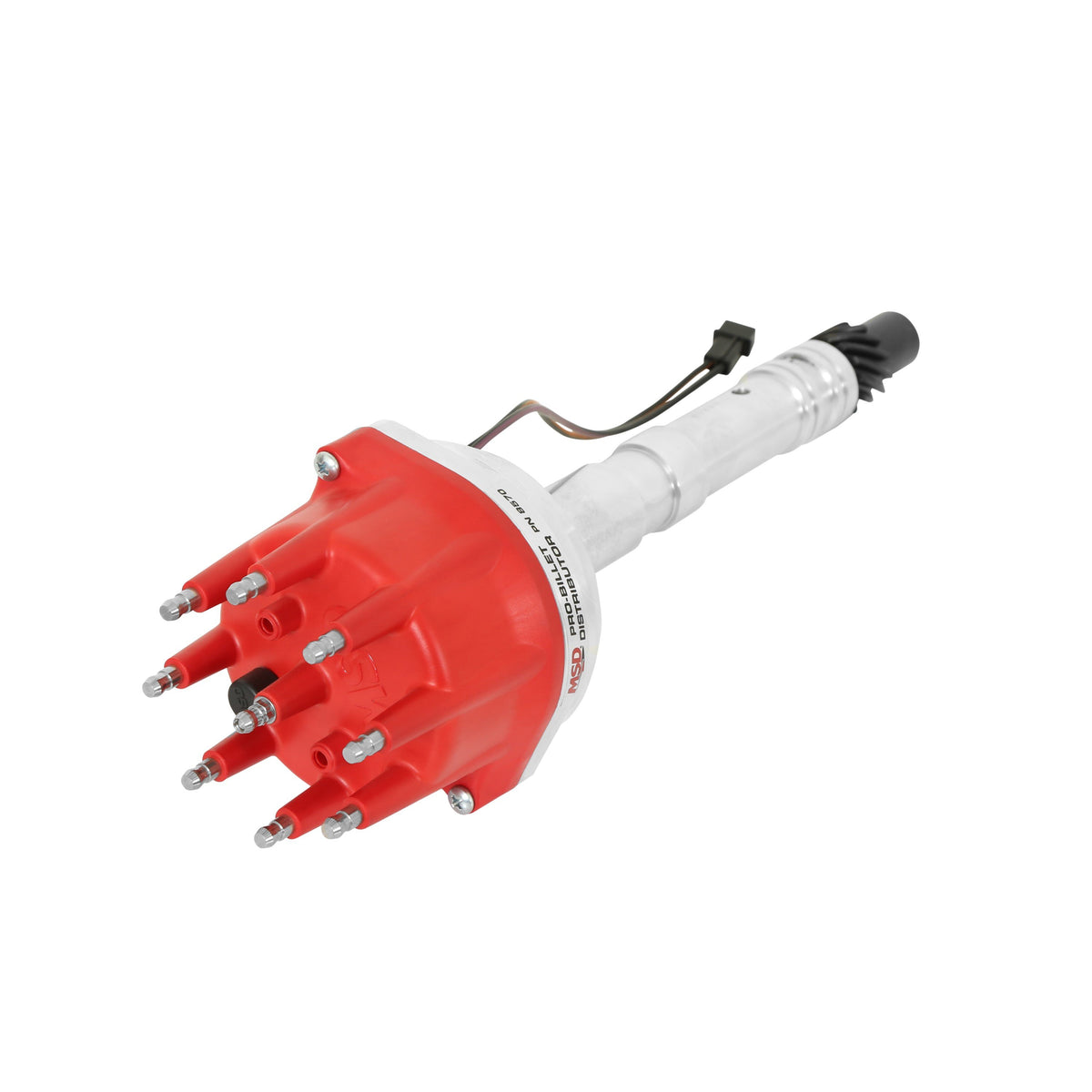

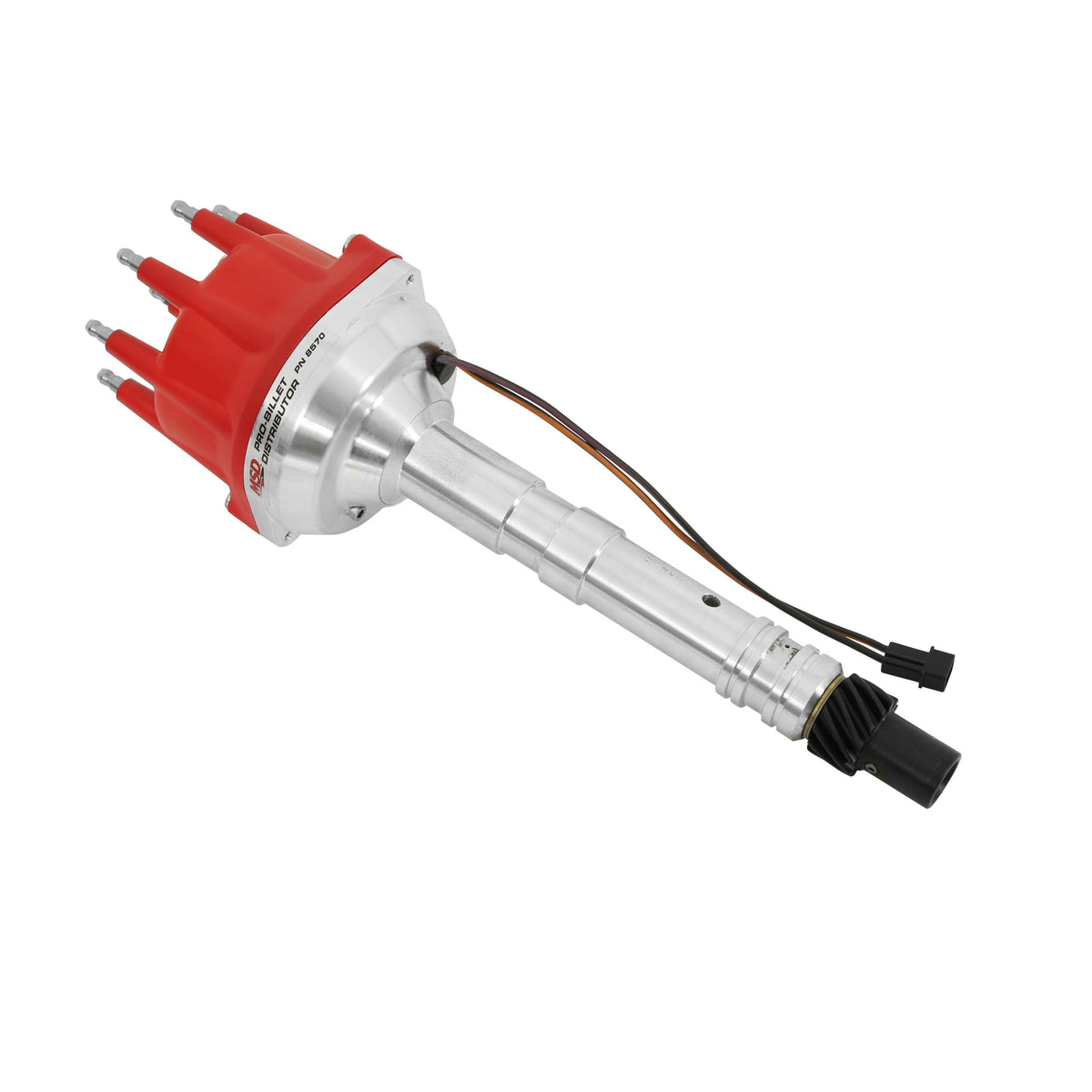

MSD 8570 for Chevy Pro-Billet Small Diameter V8 Distributor

Genuine MSD part.

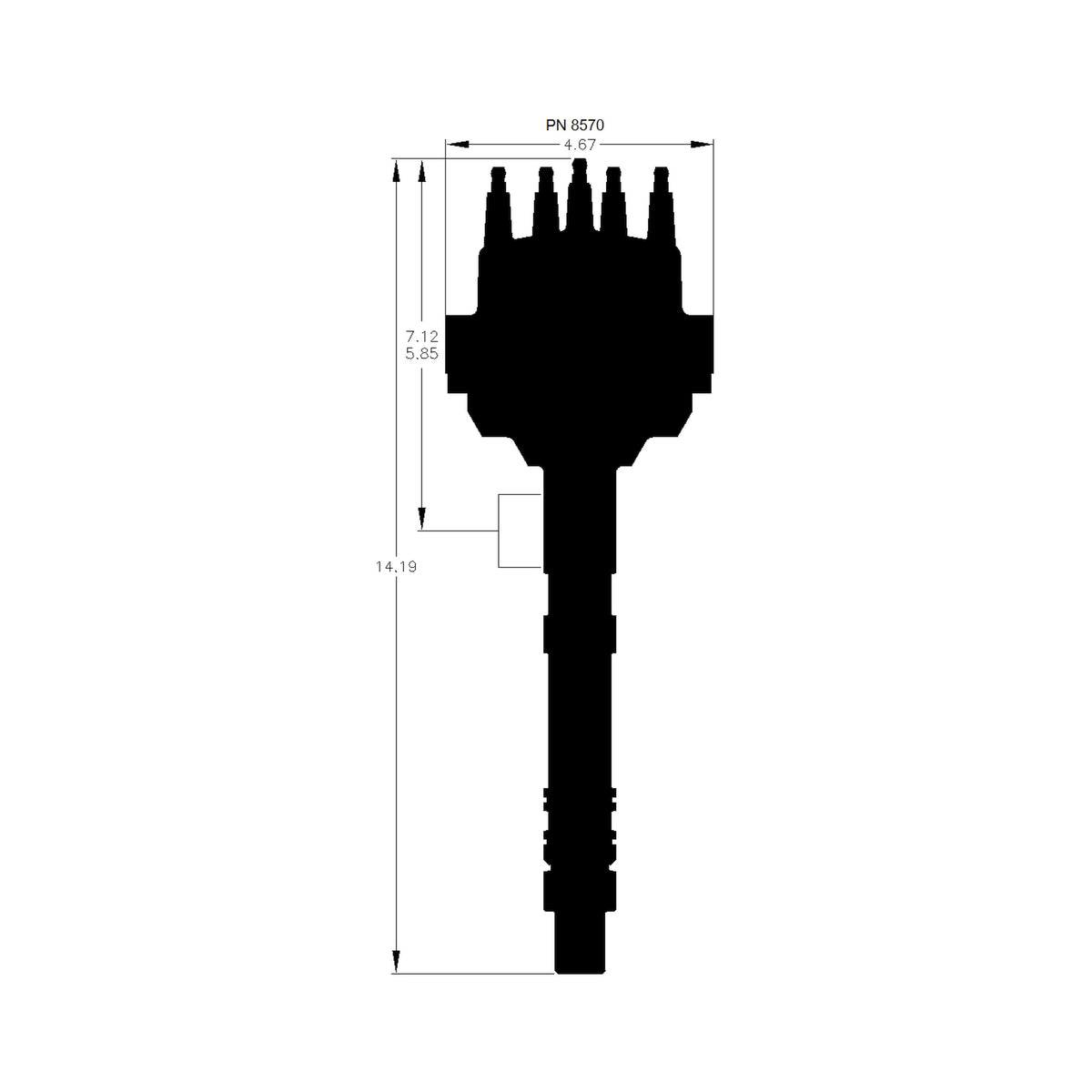

This Distributor was designed for racers and street rodders that have space limitations due to firewall interference, blowers or oversized intake manifolds such as tunnel rams. The distributor is 3/8" narrower and almost 1" shorter than a standard distributor.

MSD performance ignition distributor, part number 8570, supplied new.

Key Features

• Advance weight pins are staked and tig welded to the plate
• Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
• Special oil tract improves lubrication to the distributor and cam gear
• Will not accept a vacuum advance canister

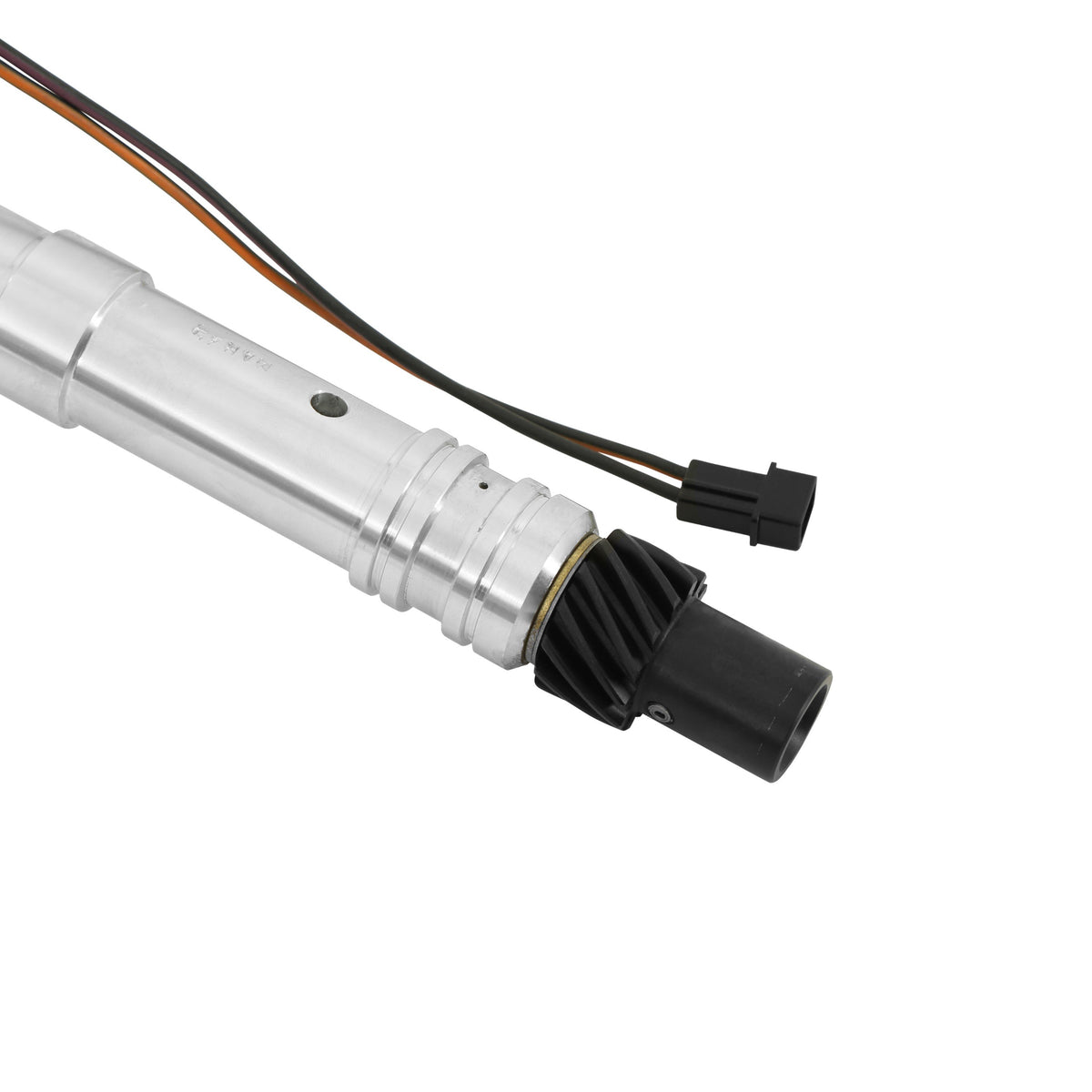

• Polished steel shaft is QPQ coated and guided by a sealed ball bearing and extra long sintered bushing
• O-ring seals can be added to modified blocks to improve oil pressure control•  Must be used with an MSD 6, 7, 8, or 10 Series Ignition

Fitment

• Universal application — check the specification below

This is a universal component sold by specification rather than by vehicle, so there is no year/make/model list for this product. Match the part number and the specification below against your own engine before ordering.

Specifications

• Brand: MSD
• Manufacturer Part Number: 8570
• Item Type: Electrical
• CARB Executive Order Number: D-40-39
• Color: Red
• Distributor Type: Magnetic Pickup
• Gear Material: Cast Iron Melonized QPQ Coated
• Grade Type: Performance
• Product Type: Distributor
• Country of Manufacture: United States
• Condition: New
• Shipping Weight: 5.0 lb

Images are for illustrative purposes. The product you receive may differ in finish or packaging from the photograph.
