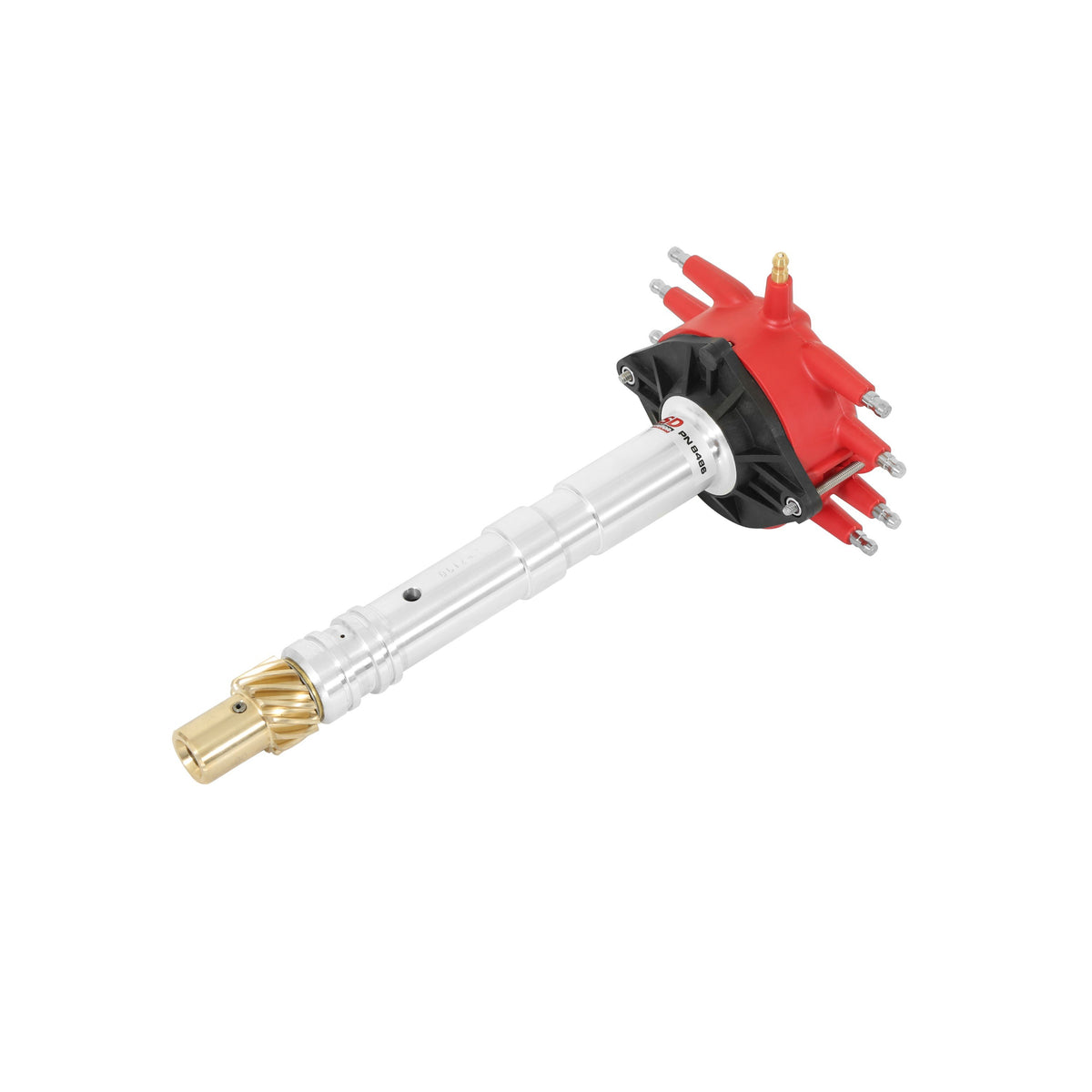

MSD 8486 Super Tall Block Crab Cap Distributor, for Chevy V8

Genuine MSD part.

The housing features two optional O-rings at the bottom that improve oil control by preventing oil pressure loss. Also, a small oil bleed hole located in the base sprays oil on the distributor and camshaft gears to prevent excessive wear. Since this is a racing distributor, there is an adjustable slip collar to make up for engines that have had the distance between the mounting surface and the gear modified.

MSD crank trigger ignition distributor, part number 8486, supplied new.

Key Features

• 0.500” taller housing for extra tall Chevrolet based engine blocks
• Shaft is guided by a sealed ball bearing and an extra long sintered bushing
• Designed to fit low in the block to clear firewall and intake combinations
• O-ring seals can be added to modified blocks to improve oil pressure control
• Supplied with small, low crab style distributor cap, rotor and bronze gear
• Must be used with an MSD Crank Trigger and MSD Ignition Control

Fitment

• Universal application — check the specification below

This is a universal component sold by specification rather than by vehicle, so there is no year/make/model list for this product. Match the part number and the specification below against your own engine before ordering.

Specifications

• Brand: MSD
• Manufacturer Part Number: 8486
• Item Type: Electrical
• Color: Red
• Distributor Type: Crank Trigger
• Gear Material: Bronze
• Grade Type: Performance
• Product Type: Distributor
• Sub Category: Distributor and Magneto
• Country of Manufacture: United States
• Condition: New
• Shipping Weight: 4.0 lb

Images are for illustrative purposes. The product you receive may differ in finish or packaging from the photograph.
