MSD 80003-8HO PRO 600 CDI Ignition and Coil Kit - Black Coils

Genuine MSD part.

Introducing the High Output version of MSD's PRO 600 CDI 8-channel Capacitive Discharge Ignition Kit (8008-8HO). Replacing the extremely capable 8232 coils, the 8280 High Output Ignition Coils take this kit even further than the tried and true 8000-8 Pro 600 Kit. Available in red or black, the 8280 coil has the goods to back up its aesthetics. With increased peak spark current, overall spark energy, and greater thermal efficiency, the 8280 is the perfect complement to the PRO 600 Ignition Box. Designed for coil-near-plug engine management systems such as Holley EFI, GM LS platforms, and most

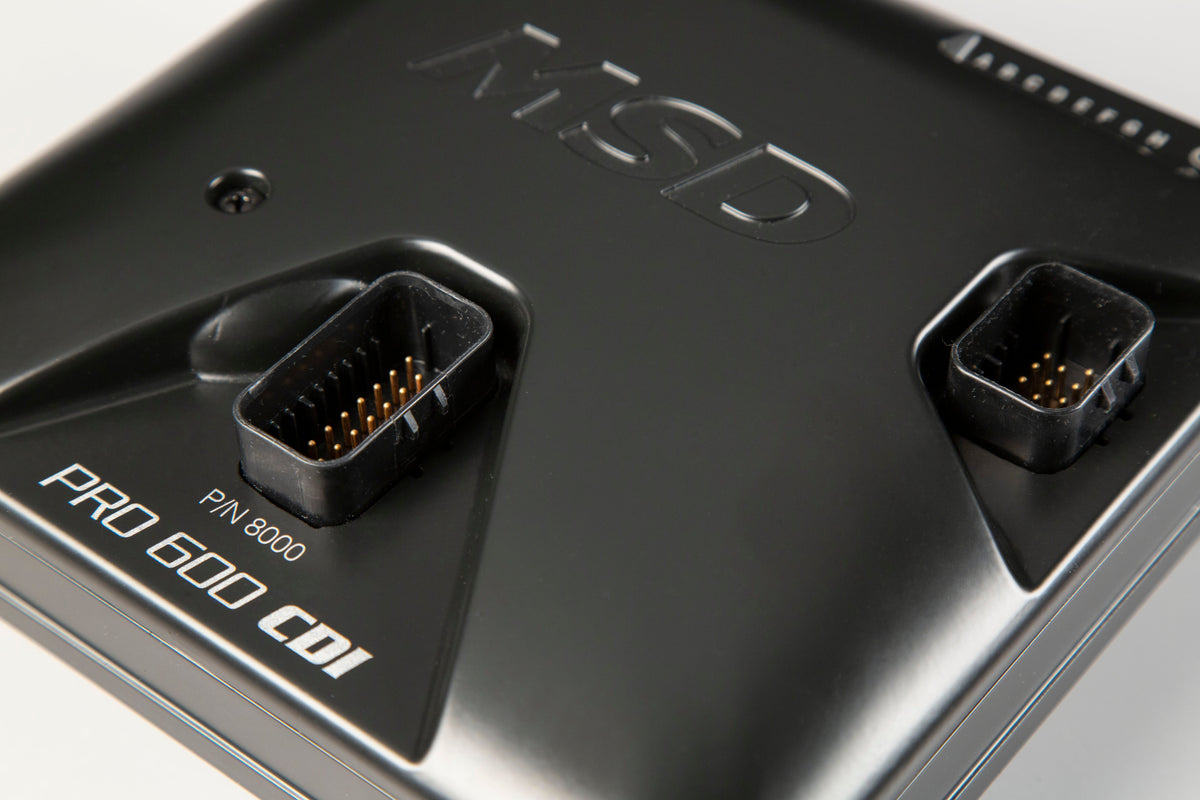

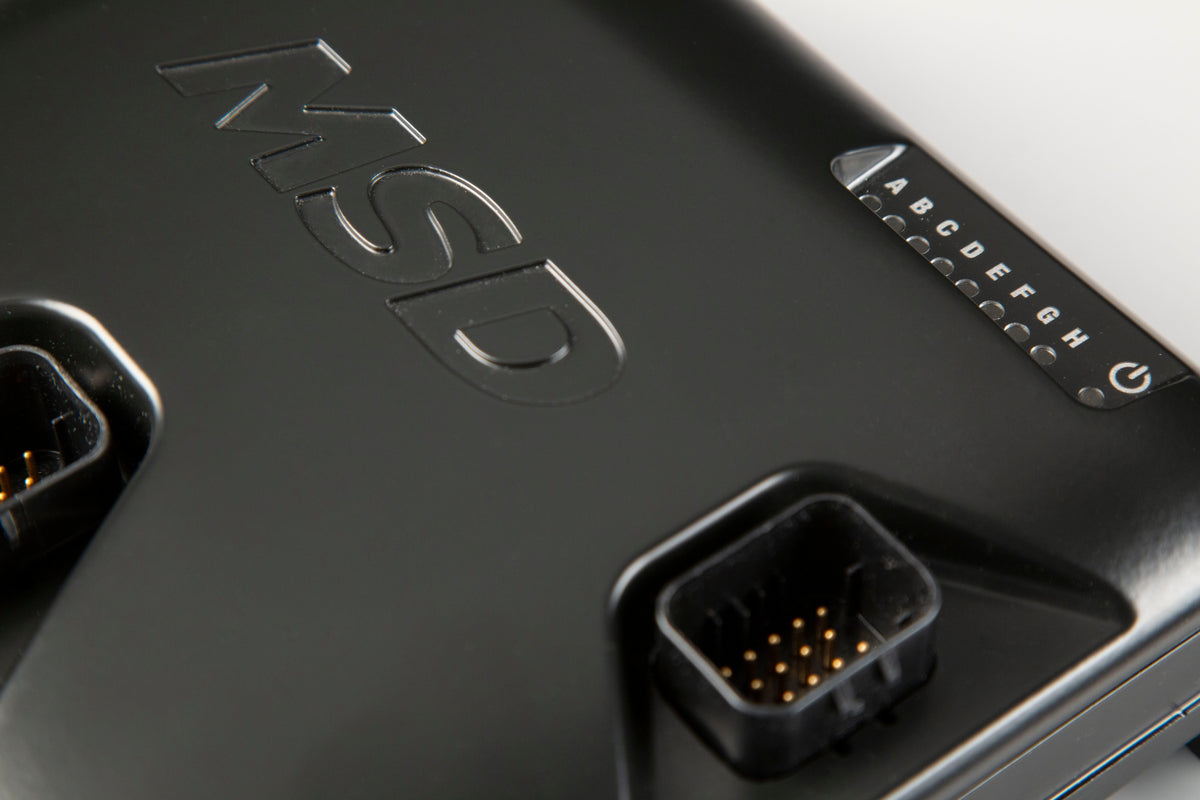

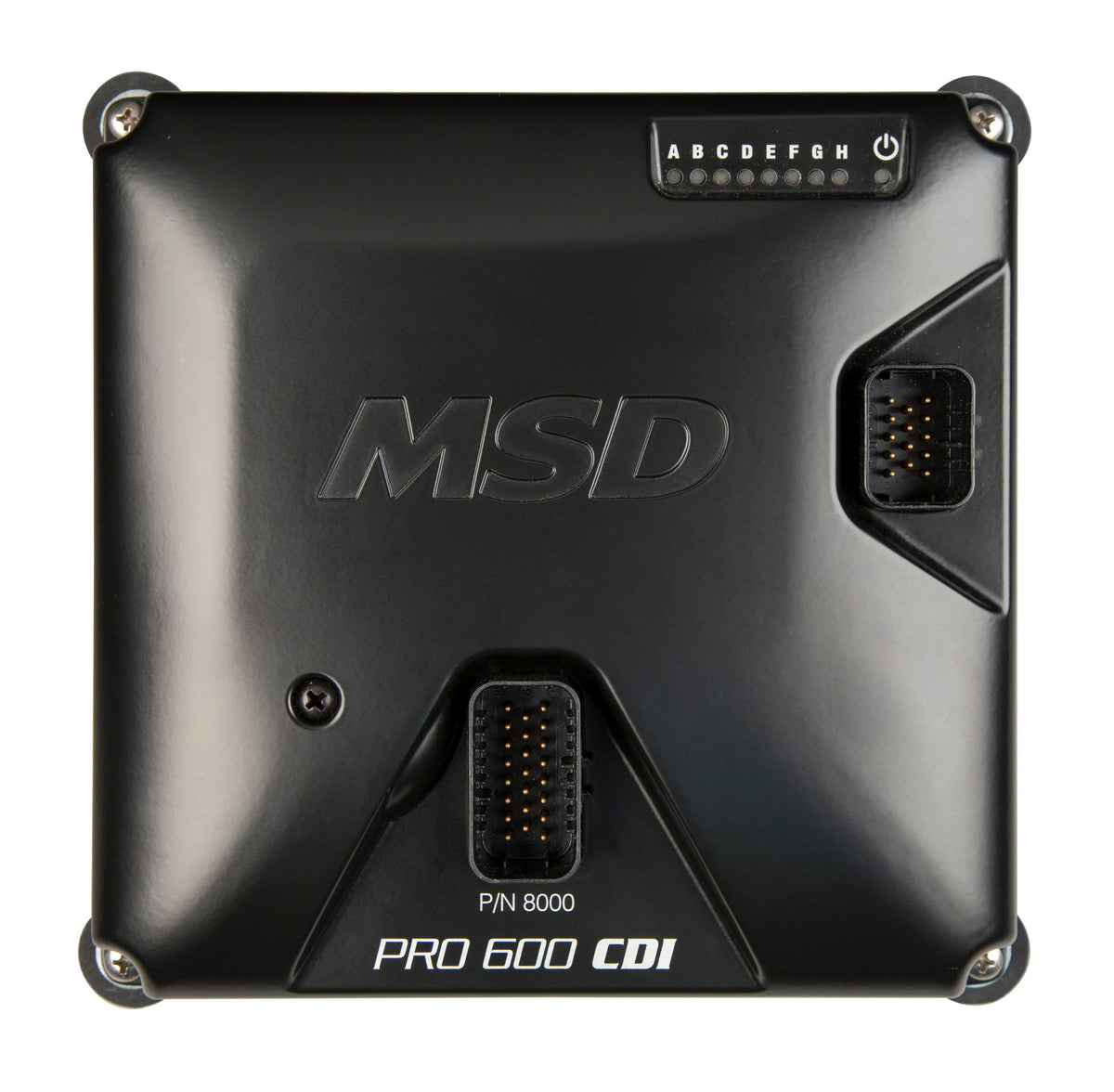

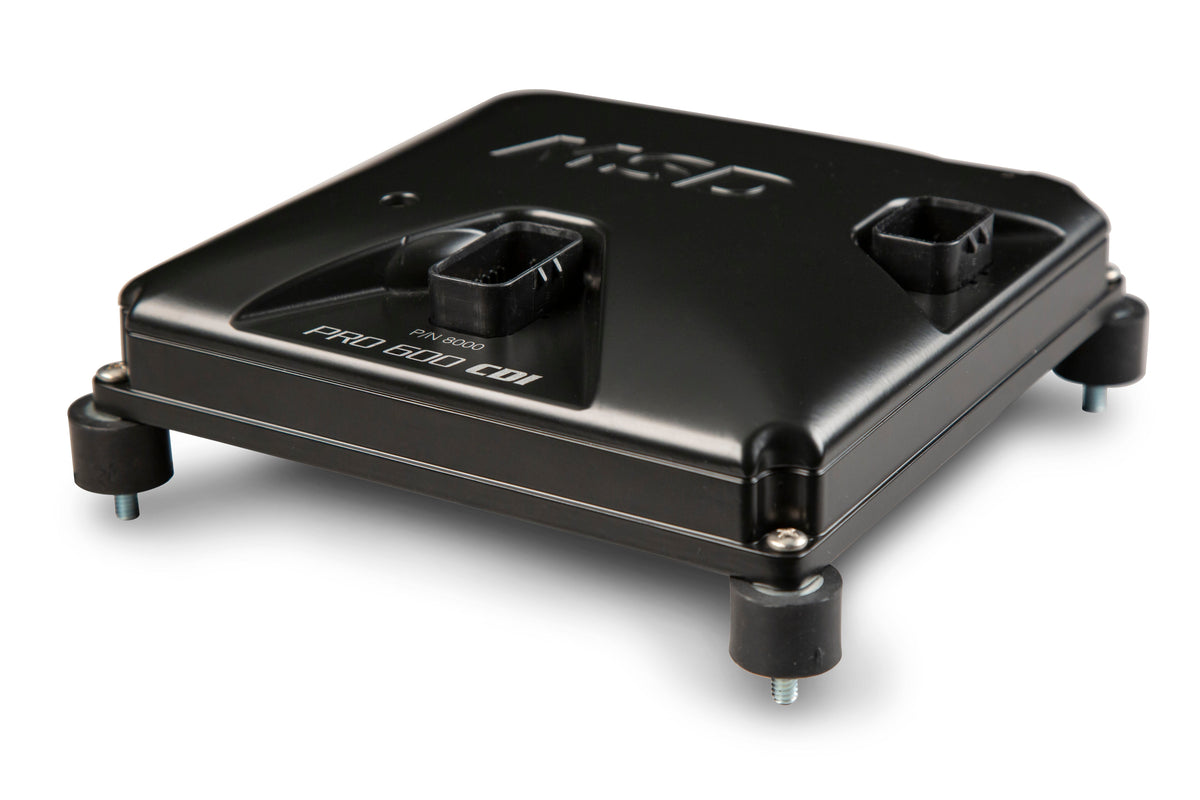

MSD ignition control box, part number 80003-8HO, supplied new.

Key Features

• Approved for NHRA Pro Mod Class
• Fits most coil-per-plug engines up to eight cylinders (Including four and six cylinders)
• 12 Volts minimum required for 600 mJ opereation
• Plug-in interface with MSD Power-Grid, Davis Profiler and OEM LS-style coil harness
• Reverse Battery Protection
• On the fly Power Output selection wire, selectable between low power and high power operation

Fitment

• Universal application — check the specification below

This is a universal component sold by specification rather than by vehicle, so there is no year/make/model list for this product. Match the part number and the specification below against your own engine before ordering.

Specifications

• Brand: MSD
• Manufacturer Part Number: 80003-8HO
• Item Type: Electrical
• Color: Black
• Connector Gender: Female
• Connector Quantity: 2
• Current Draw: 1000 RPM
• Grade Type: Race
• Ignition Type: Performance
• Maximum RPM: 15,000 RPM / 10,000 RPM at Full Power
• Mount Type: Surface Mount
• Mounting Hardware Included: Yes
• Primary Voltage: 515-520
• Product Type: Ignition Box
• Secondary Voltage: 50,000
• Spark Energy (mJ per spark): 680
• Terminal Gender: Male
• Terminal Quantity: 37
• Voltage Required: 6-22
• Country of Manufacture: United States
• Condition: New
• Shipping Weight: 18.2 lb

Images are for illustrative purposes. The product you receive may differ in finish or packaging from the photograph.
