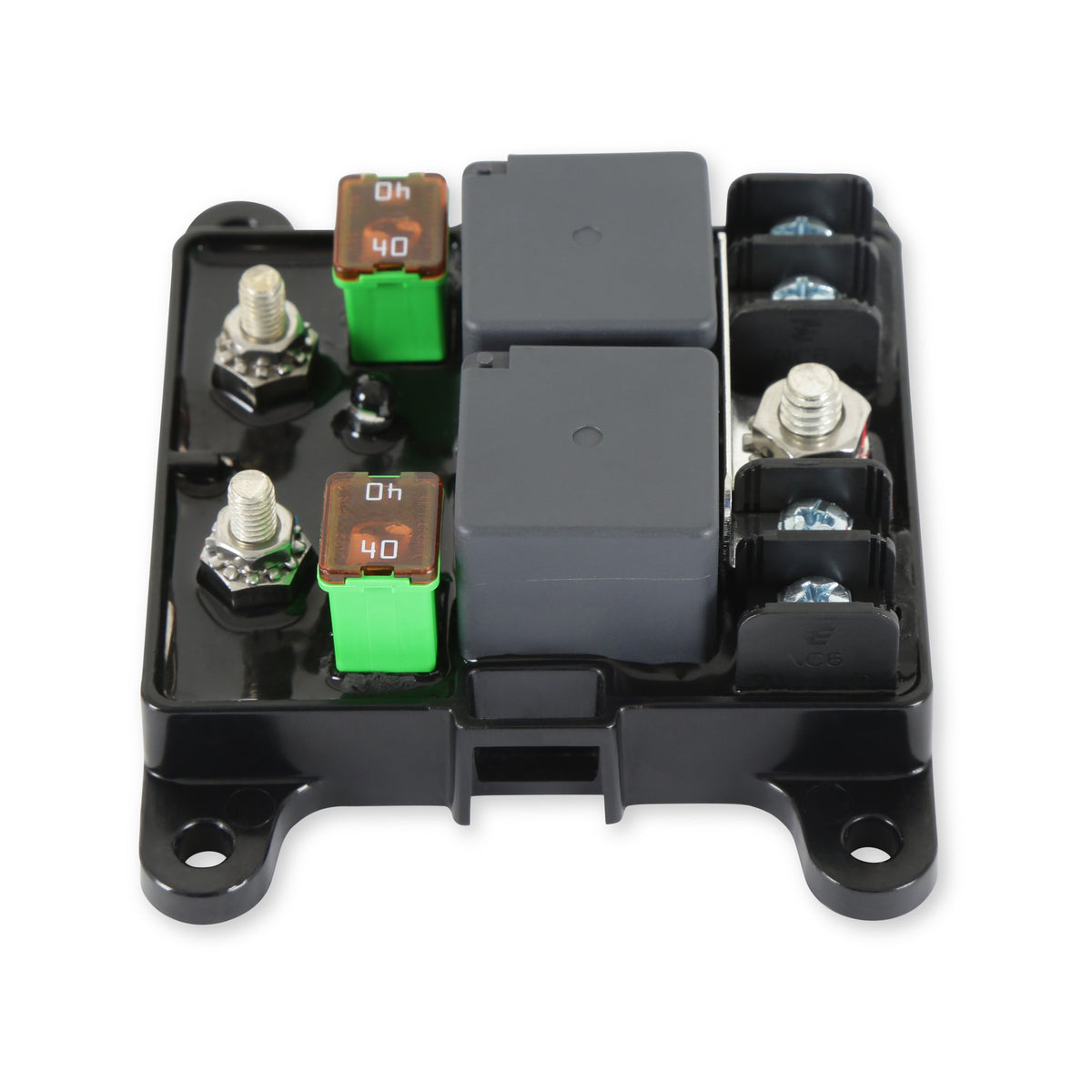

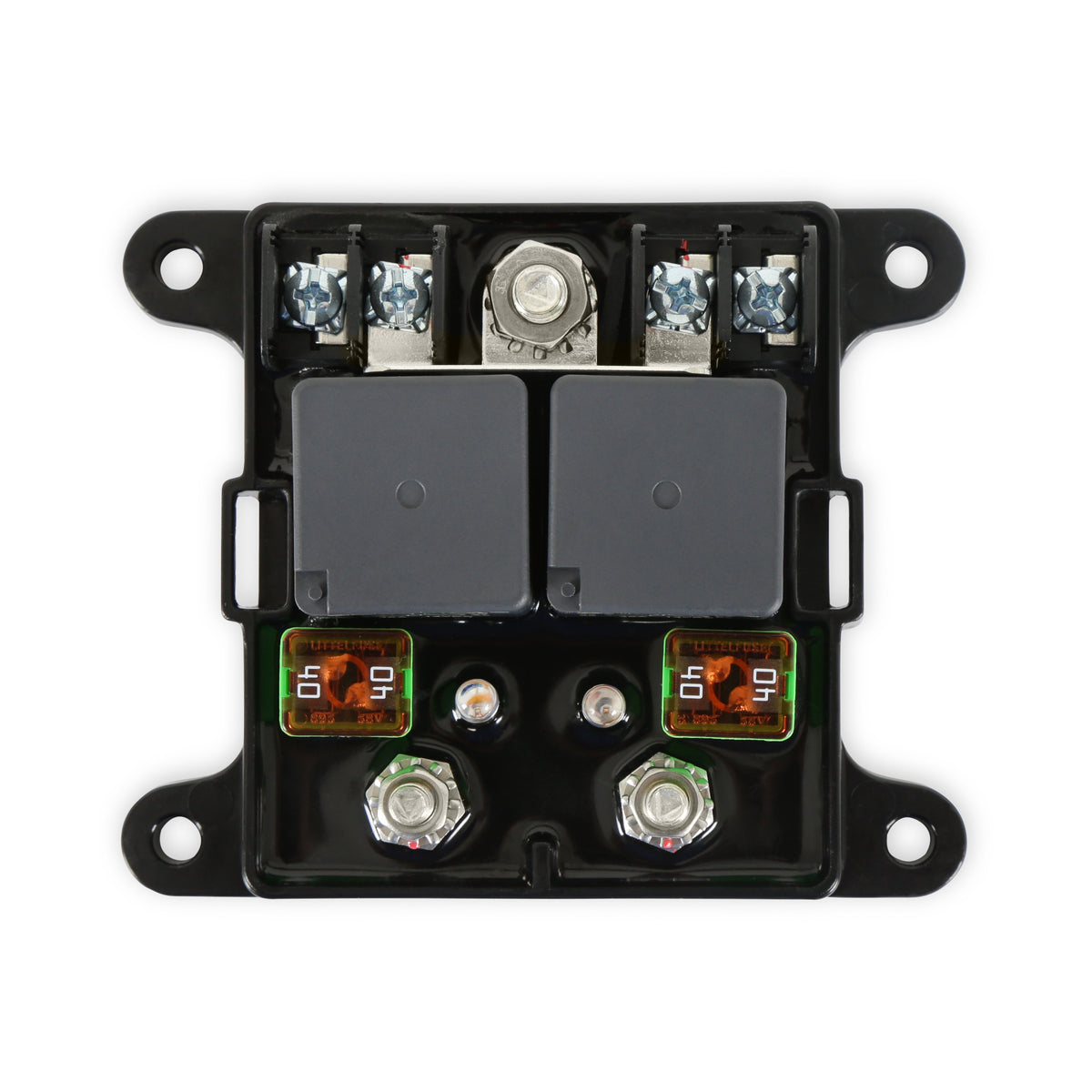

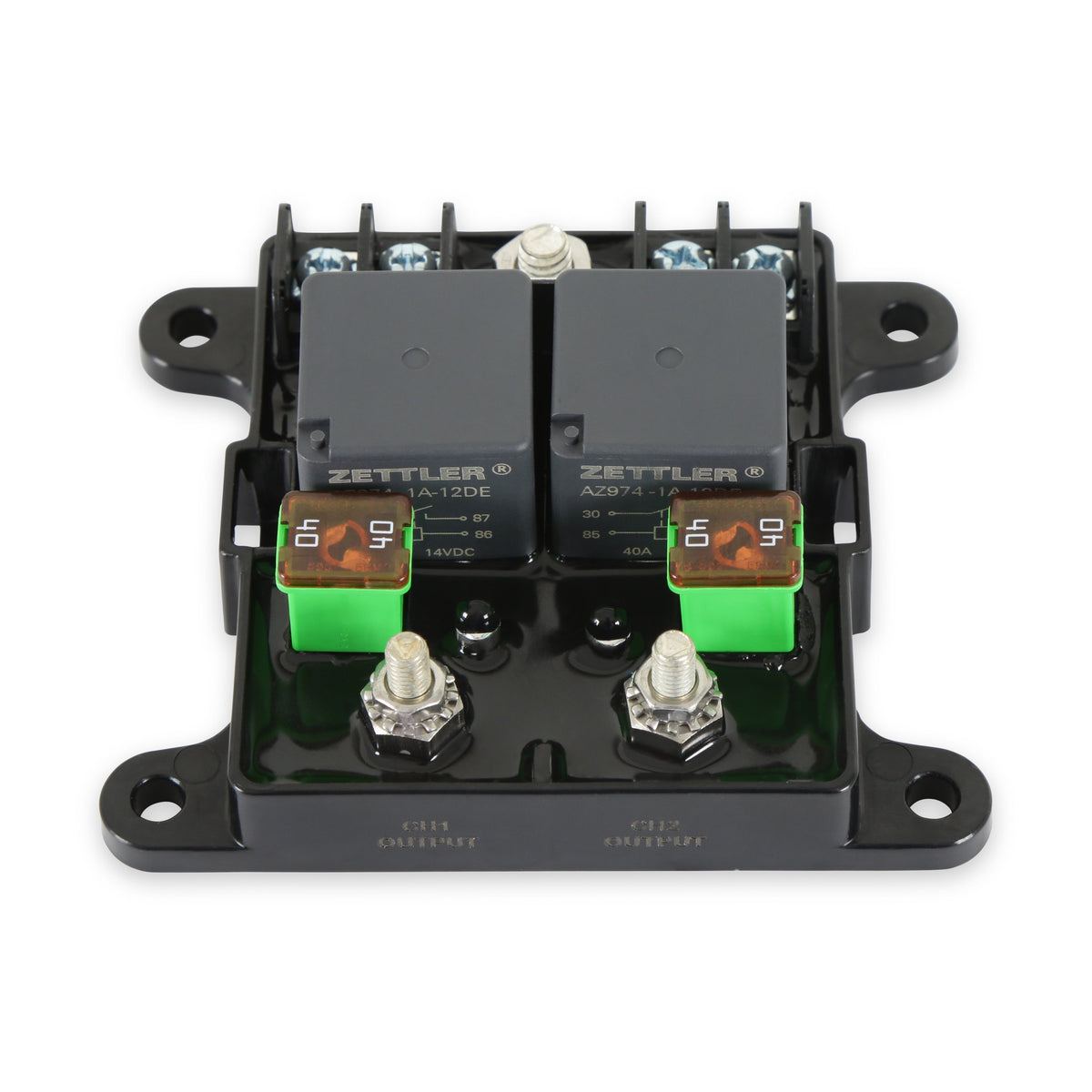

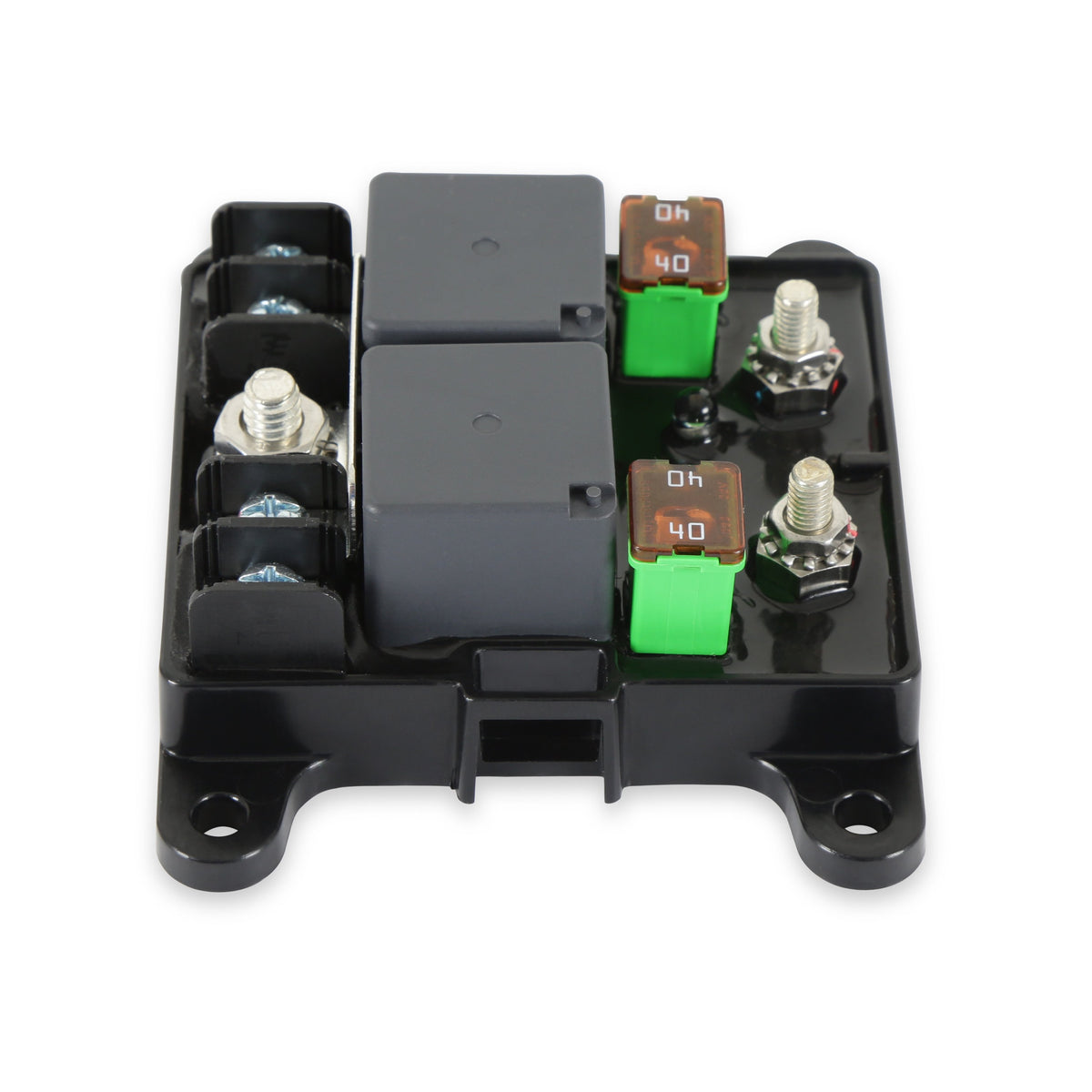

MSD 7566-2 2 Channel Relay Module

Genuine MSD part.

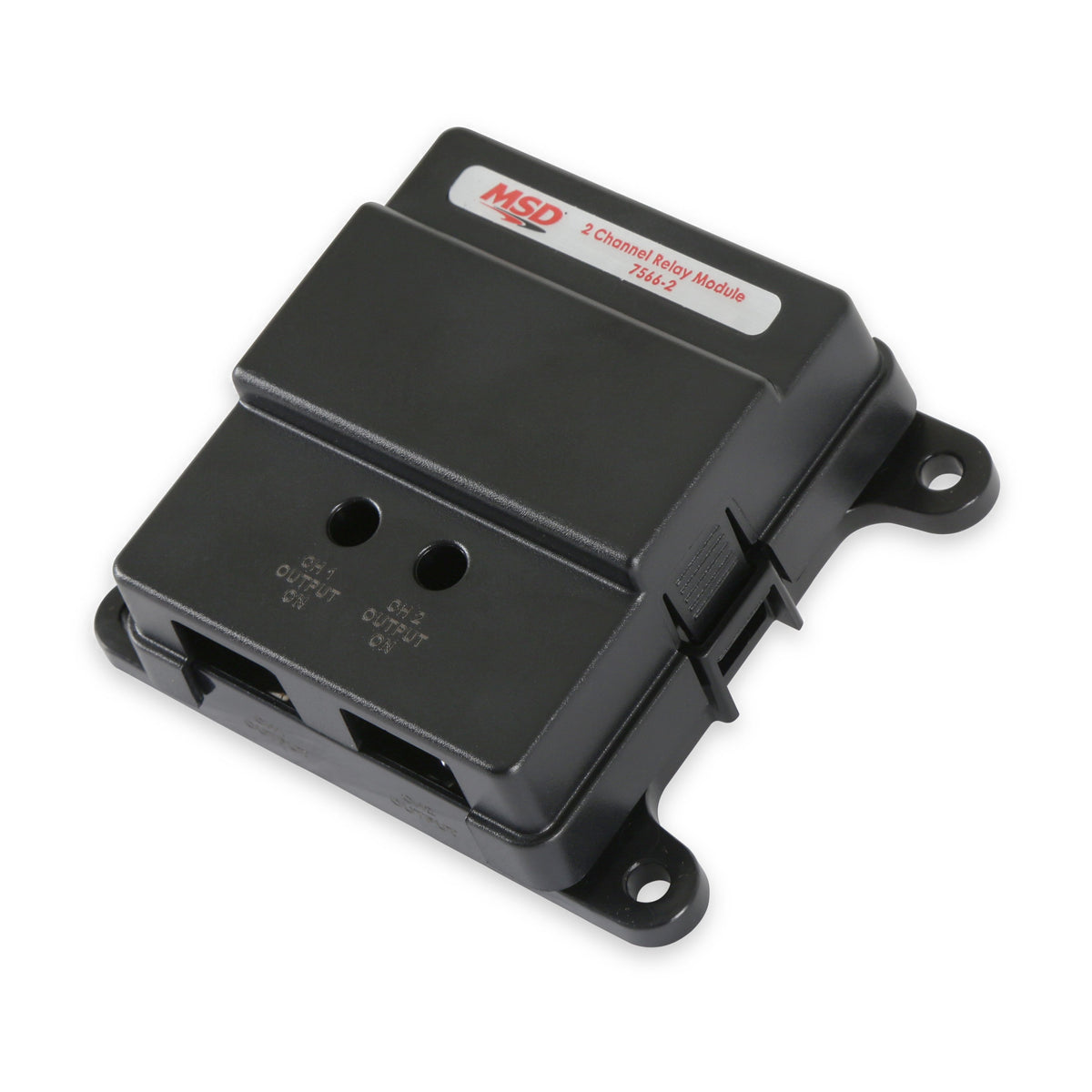

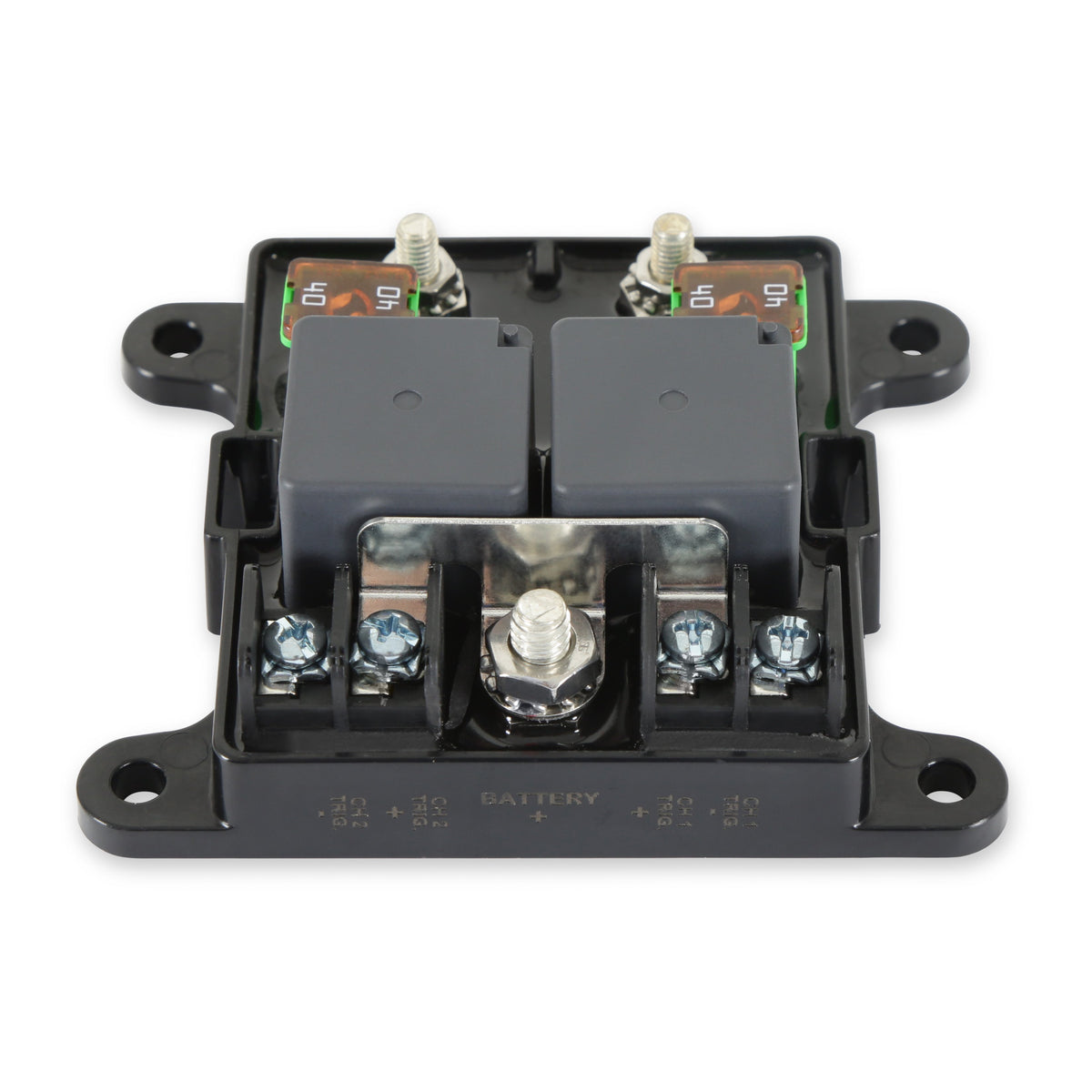

MSD relay modules are designed to be easily installed in most automotive electrical systems where a high amperage relay is needed. These relay modules are perfect use with high amperage electric fuel pumps and high CFM electric cooling fans. Each relay comes with a 40amp fuse, however lower amp fuses can be installed if required. The relay housing comes with a labeled lid that snaps into place providing a clean installation, and protecting the main power stud and triggers from contamination or accidental contact.

MSD ignition wiring connector and relay part, part number 7566-2, supplied new.

Key Features

• 7V to 20V supply to fit a wide variety of applications
• Removable cover for easy accessibility
• Configurable single-wire activation with Ground (-) input or 12V (+) input, with removal of the Tie-Bar
• Independent 40A outputs, to supply power to most aftermarket fuel pumps and electric fans
• LED status indicators, show you which channel is triggered at a glance
• Low profile JCASE fuses provide ample protection in case of a short

Fitment

• Universal application — check the specification below

This is a universal component sold by specification rather than by vehicle, so there is no year/make/model list for this product. Match the part number and the specification below against your own engine before ordering.

Specifications

• Brand: MSD
• Manufacturer Part Number: 7566-2
• Item Type: Electrical
• Product Type: Relays
• Sub Category: Control Modules
• Country of Manufacture: United States
• Condition: New
• Shipping Weight: 0.8 lb

Images are for illustrative purposes. The product you receive may differ in finish or packaging from the photograph.
