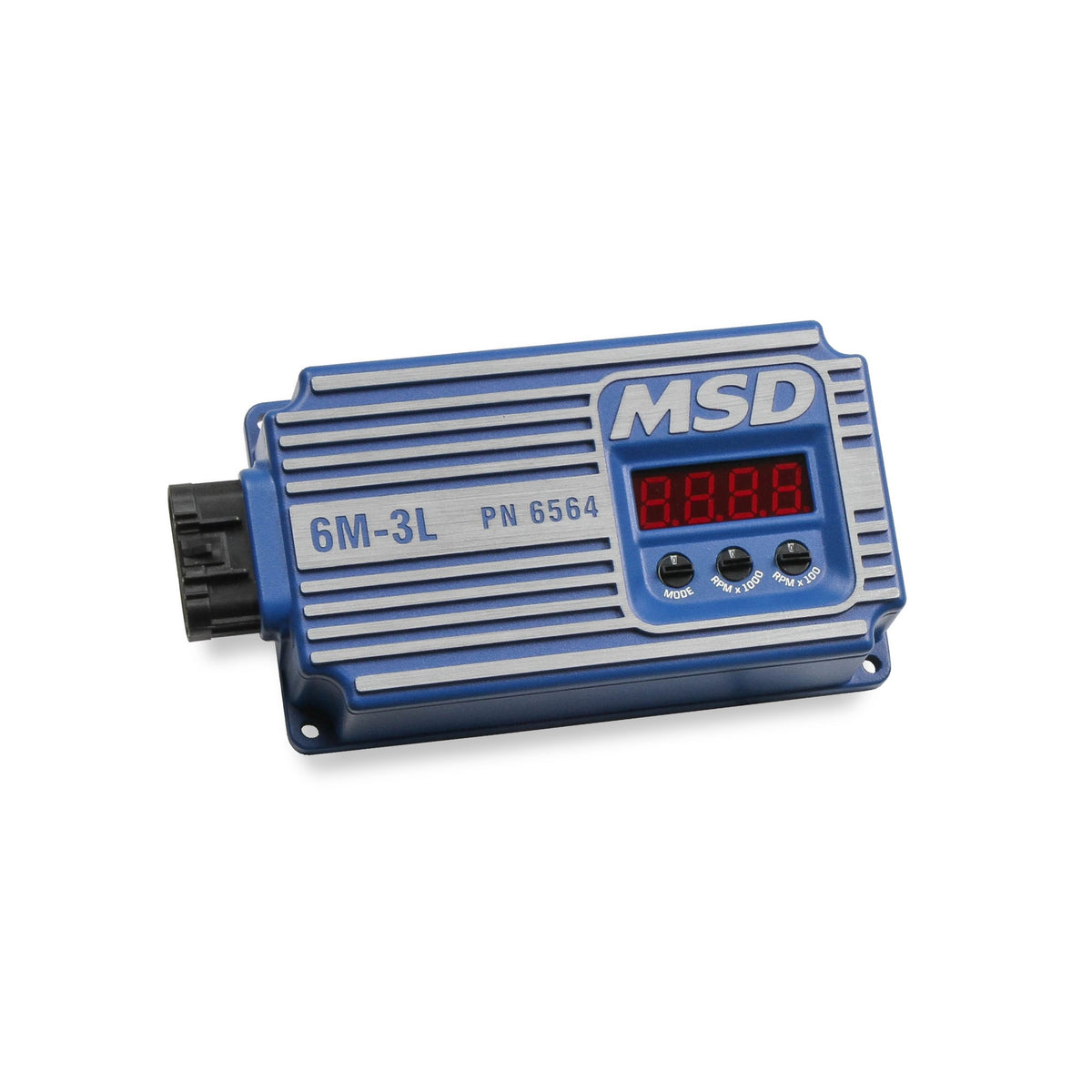

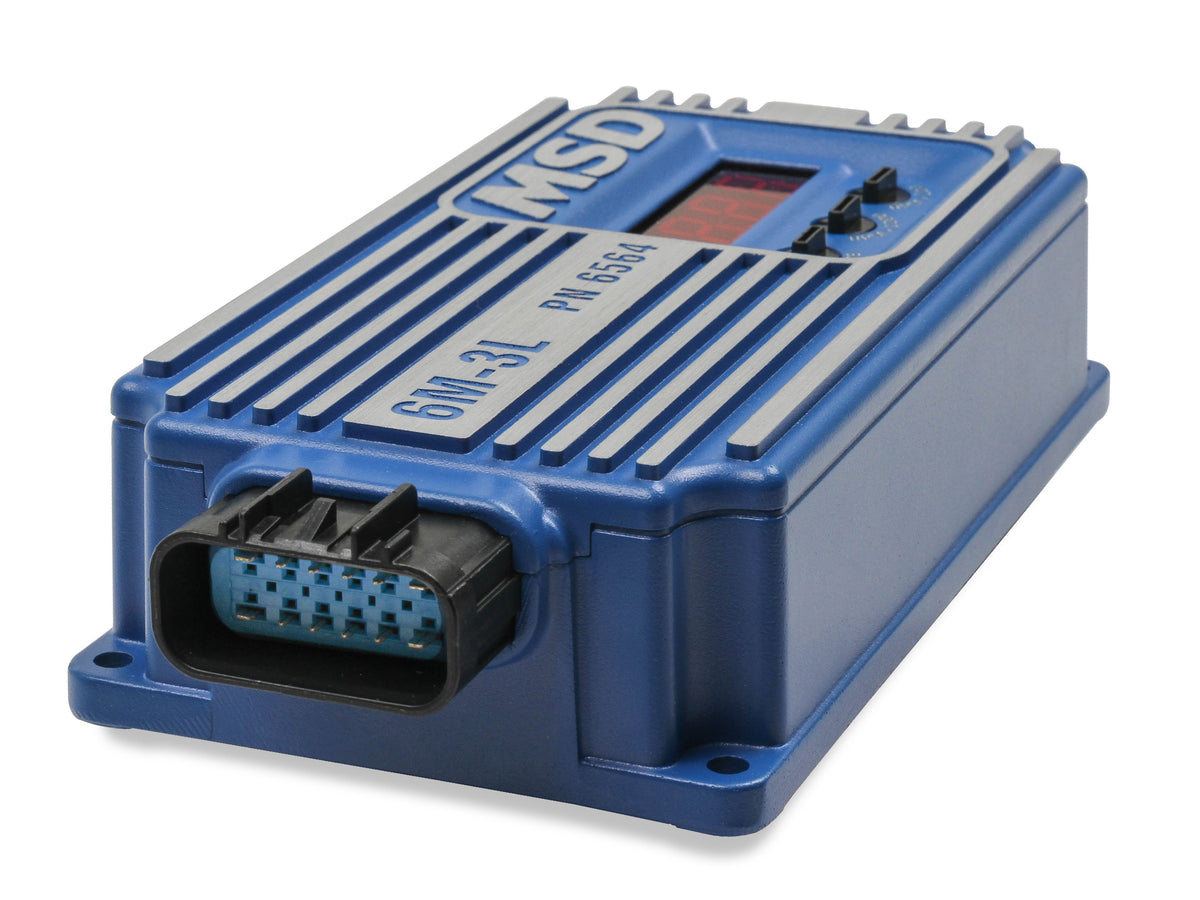

MSD 6564 Digital 6M-3L Marine Ignition

Genuine MSD part.

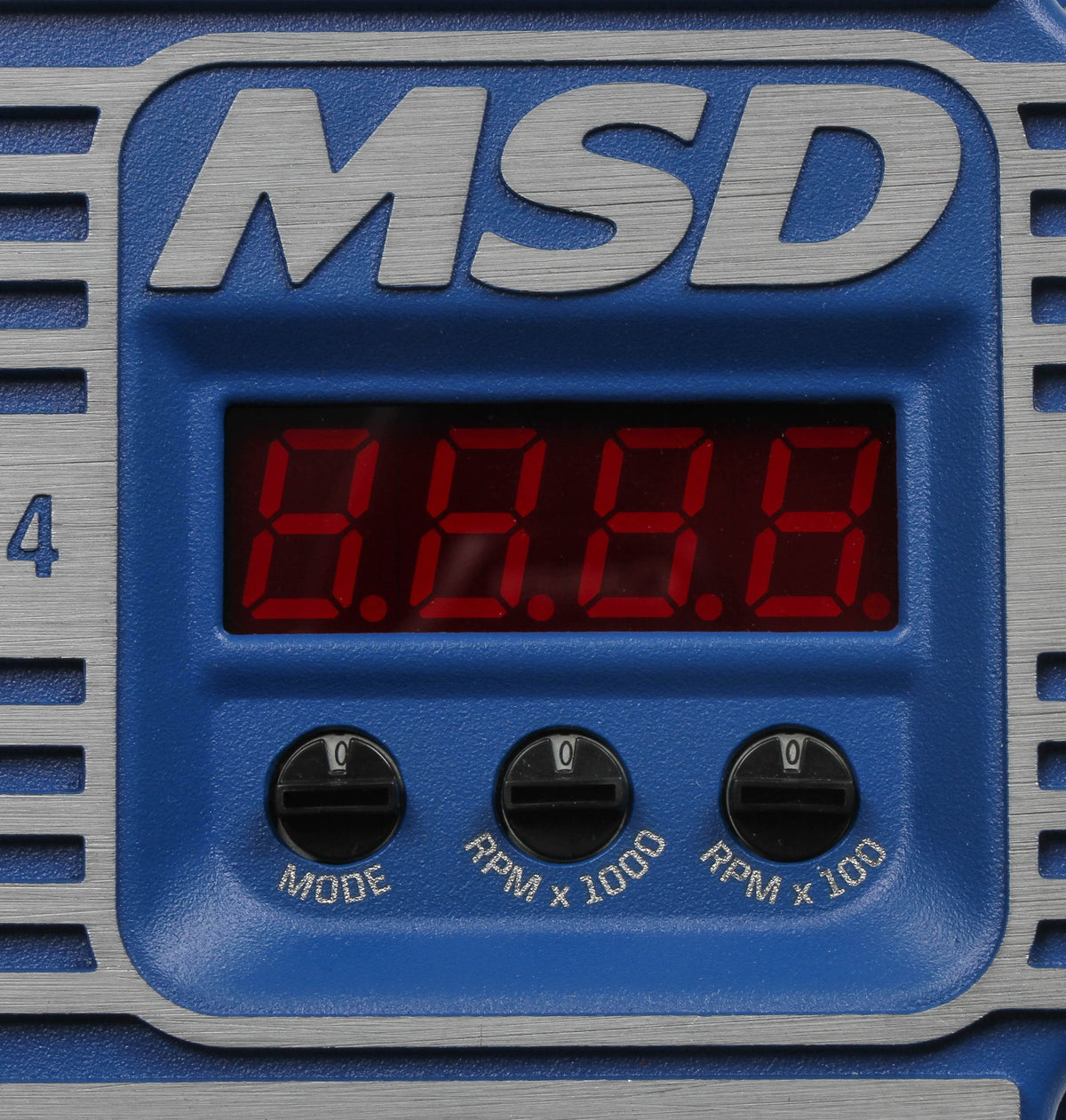

Three rotary dials and an LED display simplfy setting the cylinder select, start retard and rev limiter. Plug-in rev limiter chips and hard to read dials are a thing of the past. For diagnostic purposes, the LED display can also be set to a live tach mode on V8's and even display battery voltage with the turn of a knob.

MSD ignition control box, part number 6564, supplied new.

Key Features

• Highly efficient, low current draw for extended battery life
• Works on 4, 6 and 8 cylinder engines
• Large, easy to read LED display
• Easy setup of features with three rotary dials on the face of the unit
• Records highest RPM the engine turned for last 20 minutes of run time
• LED display shows rev limit, highest RMP turned, cylinder select, start retard, battery voltage and can be set to tach mode

Fitment

• Universal application — check the specification below

This is a universal component sold by specification rather than by vehicle, so there is no year/make/model list for this product. Match the part number and the specification below against your own engine before ordering.

Specifications

• Brand: MSD
• Manufacturer Part Number: 6564
• Item Type: Electrical
• Color: Blue
• Connector Gender: Male Female
• Connector Quantity: 1
• Current Draw: 1000 RPM
• Grade Type: Marine
• Ignition Type: Performance
• Maximum RPM: 12,000 RPM
• Mount Type: Surface Mount

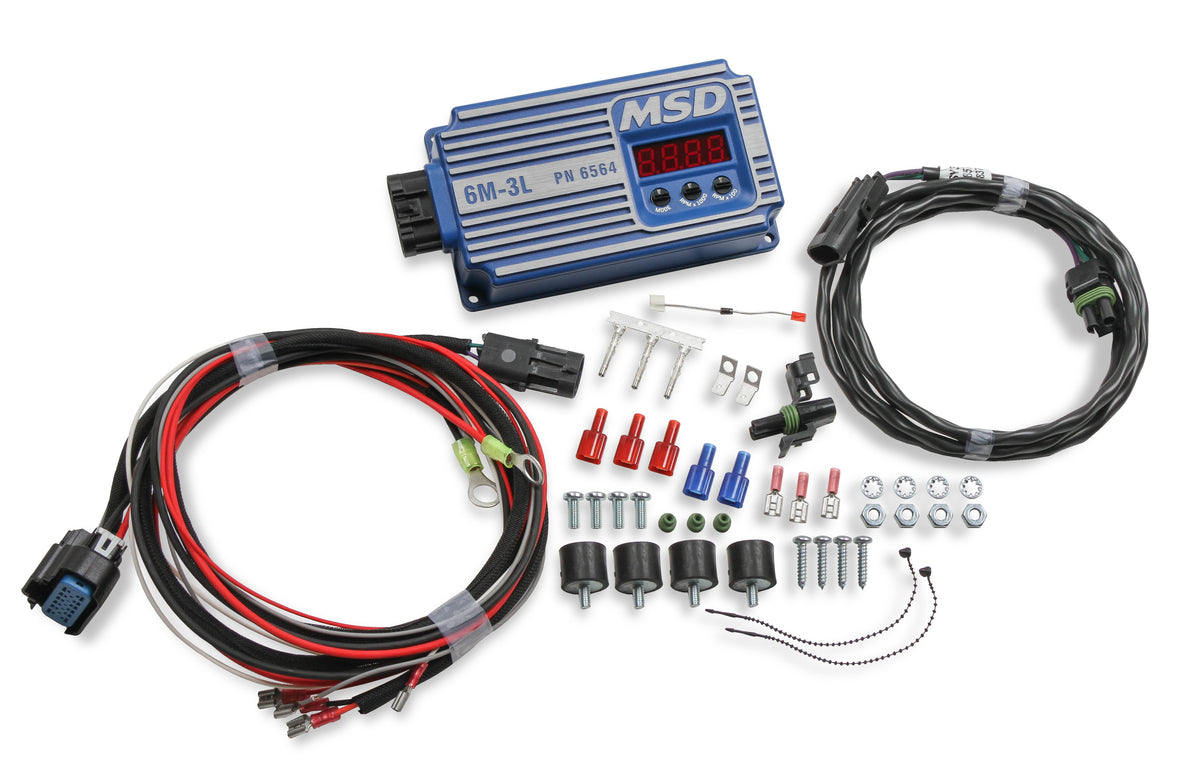

• Mounting Hardware Included: Yes
• Primary Voltage: 535-550
• Product Type: Ignition
• Secondary Voltage: 45,000
• Spark Energy (mJ per spark): 135 w/ Blaster Coil / 150 w/ HVC Coil PN 8250
• Sub Category: Control Modules
• Terminal Gender: Male
• Terminal Quantity: 12
• Voltage Required: 6-18
• Country of Manufacture: United States
• Condition: New
• Shipping Weight: 3.9 lb

Images are for illustrative purposes. The product you receive may differ in finish or packaging from the photograph.
