ICON 2022+ Toyota Tundra 1.25-3.25in Stage 1 3.0 Suspension System (BILLET)
ICON 2022+ Toyota Tundra 1.25-3.25in Stage 1 3.0 Suspension System (BILLET)
Couldn't load pickup availability

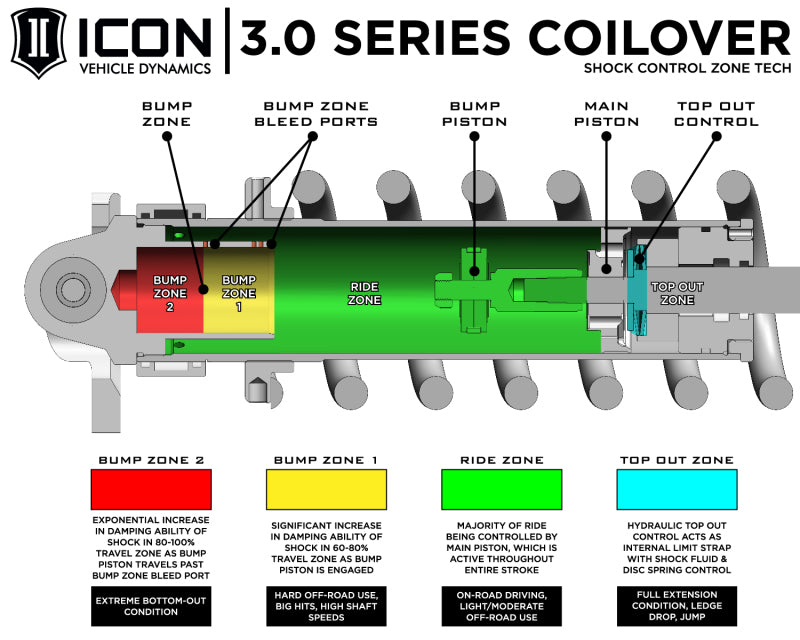

This Stage 1 system features the 2022-2025 Toyota Tundra VS 3.0 Series remote reservoir front coilovers equipped with CDC Valves. These adjustable coilovers allow up to 1.25-3.25” of lift height adjustability over stock when using the ICON billet front upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. The larger 3.0 Series shocks offer 50% more piston surface area in the ride zone of the shock's travel, and 100% in the “Bump Zone”, compared to 2.5 Series shocks. The multi-stage hydraulic Bump Zone exponentially increases bottom-out resistance as the shock travels through the last 40% of travel, keeping vehicle dynamics in check during those hard hits or unexpected obstacles. The included ICON CDC Valves are externally adjustable valves that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. Additionally, ICON’s Vehicle-specific shock length yields the maximum travel possible (up to 40% increase o
Vehicle Fitment
- 2023-2025 Toyota Sequoia
- 2022–2027 Toyota Tundra
Please verify exact fitment for your trim and engine before ordering.
Manufacturer Part Number: K53211
Images are for illustrative purposes only. Actual product may vary.
⚠ WARNING (California Proposition 65): This product can expose you to chemicals which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Share
🛡️
Manufacturer's Warranty — ICON
▾
Manufacturer's Warranty — ICON
ICON Vehicle Dynamics sets warranty by product line. Shock absorbers carry a 1-year warranty against manufacturer defects: a shock that fails within that first year of ownership must be shipped to ICON for inspection and service, and if inspection shows the failure came from neglect, damage caused by improper installation, or any reason other than normal wear and tear, the owner is responsible for all service costs including labor, parts and shipping. ICON's other components are covered by a limited lifetime warranty. Two joint products have their own terms: the ICON Delta Joint carries a five-year warranty and a defective joint is replaced only if the warranty registration was completed within 30 days of purchase (iconvehicledynamics.com/deltajointreg), while the Delta Joint Pro carries one year from the date of purchase — neither applies to a joint used with a non-ICON suspension system, and an unregistered Delta Joint is not covered. Coverage runs to the original retail purchaser who owns the vehicle the product was originally installed on and is not transferable. ICON's obligation is limited to repair or replacement at its discretion; removal, installation or re-installation, freight charges and incidental or consequential damages are expressly excluded, and items subject to wear are not considered defective when worn. Components must be installed as a complete kit as shown in ICON's current application guide — any substitution or omission of required components voids the warranty immediately. Also not covered: finish, alterations, modifications, installation contrary to ICON's instructions, finish damage that occurs during shipping, race or competition use, and police, taxi, government or commercial vehicles. Sales outside the United States and Canada are excluded.
Warranty terms are set by the manufacturer and may change. Contact us if you need help with a warranty claim.
