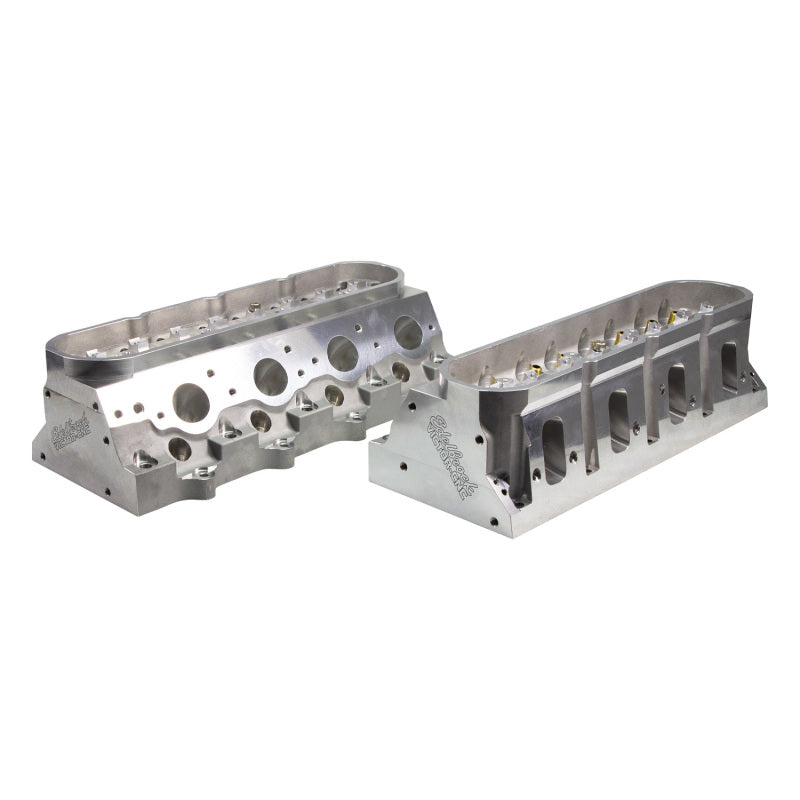

Edelbrock 77689 Victor CNC GM LS7 12 Degree 6-Bolt Cylinder Head 291cc .220 in Intake Port Copper
Edelbrock 77689 Victor CNC GM LS7 12 Degree 6-Bolt Cylinder Head 291cc .220 in Intake Port Copper
Couldn't load pickup availability
The Edelbrock Victor CNC 12 6-Bolt Head for GM LS7 291cc/69cc Individual #77689 is designed for maximum effort naturally aspirated and boosted applications. It features .220 raised intake runners and .100 raised exhaust ports that provide a better line of sight into the cylinders and allow for an improved short turn. The raised intake runner design fits both stock and aftermarket LS7 intake manifolds and can be installed with stock or aftermarket valve trains. The head utilizes the GM LS 6-bolt design, making it compatible with the GM LSX block and all aftermarket iron or aluminum 6-bolt per cylinder LS race blocks. The 6-bolt design offers increased clamping capacity over the standard factory 4-bolt configuration and improves head gasket sealing – ideal for high compression naturally aspirated engines and high boost applications.
Key Features
- Premium 110 BHN aluminum alloy, .220" raised intake port, .100" raised exhaust port, Copper valve seats, 307cc or 291cc intake port volume, 2.250" or 2.200" x 1.615" valve job
This product is not approved for sale or use in the State of California, or in other states that require a CARB Executive Order (E.O.) number. It is intended for use in states that do not require CARB certification.
Fitment
- Fits the engine or application named in the title: confirm the engine and component match before ordering
Not specific to one vehicle. Confirm the application details above before ordering.
Edelbrock warrants this part against defects in material and workmanship for 90 days from the date of purchase, provided it is properly installed and operated under normal conditions. Racing or competition use, marine use unless the part is listed for marine applications, modification, improper installation or maintenance, misuse and excessive wear are excluded. The remedy is repair or replacement of the part, and installation and removal costs are not covered. Warranty claims for this product are handled directly by Edelbrock.
Specifications
- Brand: Edelbrock
- Manufacturer Part Number: 77689
- Type: Heads
- Manufacturer Warranty: 90 Days Limited
- Condition: New
Images are for illustrative purposes. The product you receive may differ in finish or packaging from the photograph.
