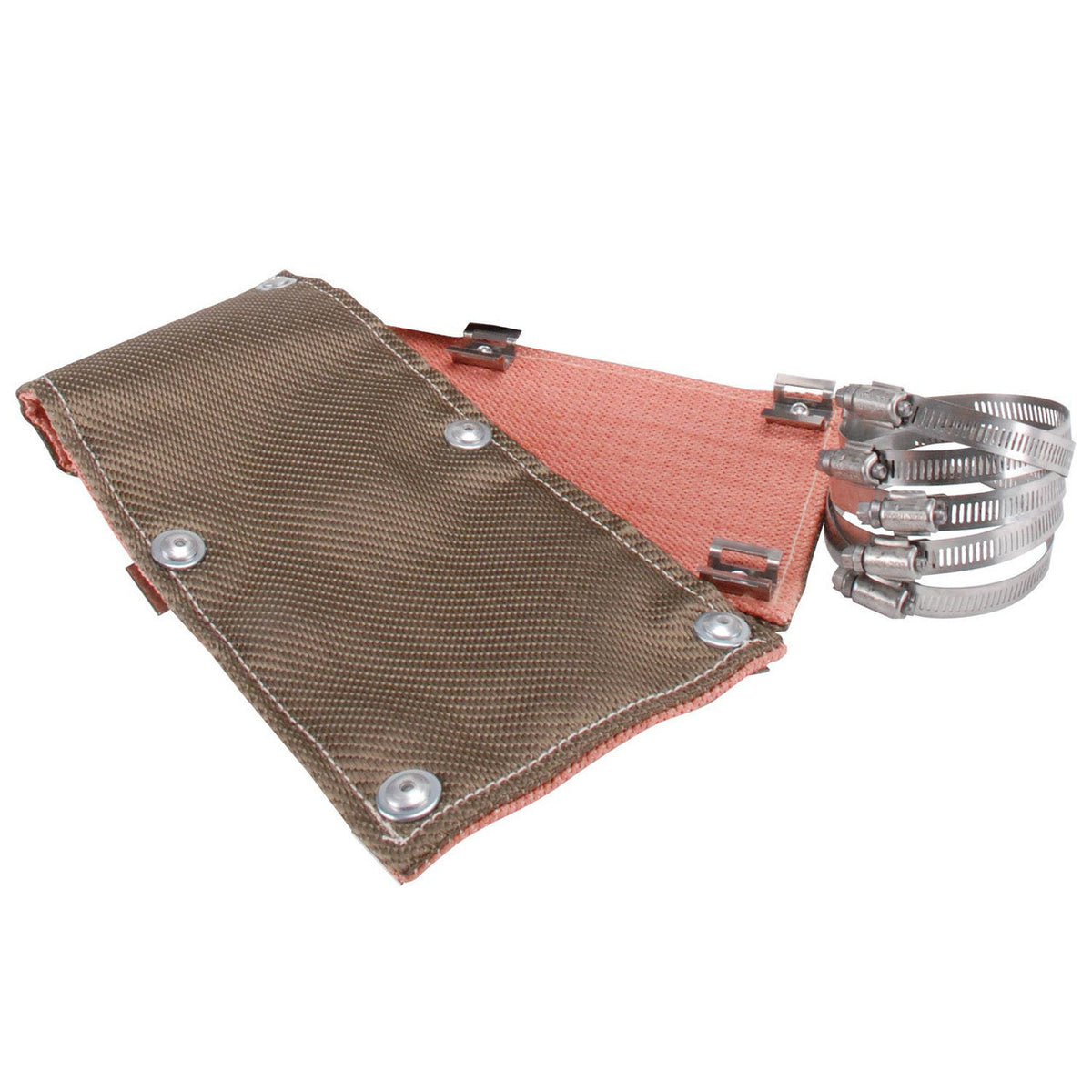

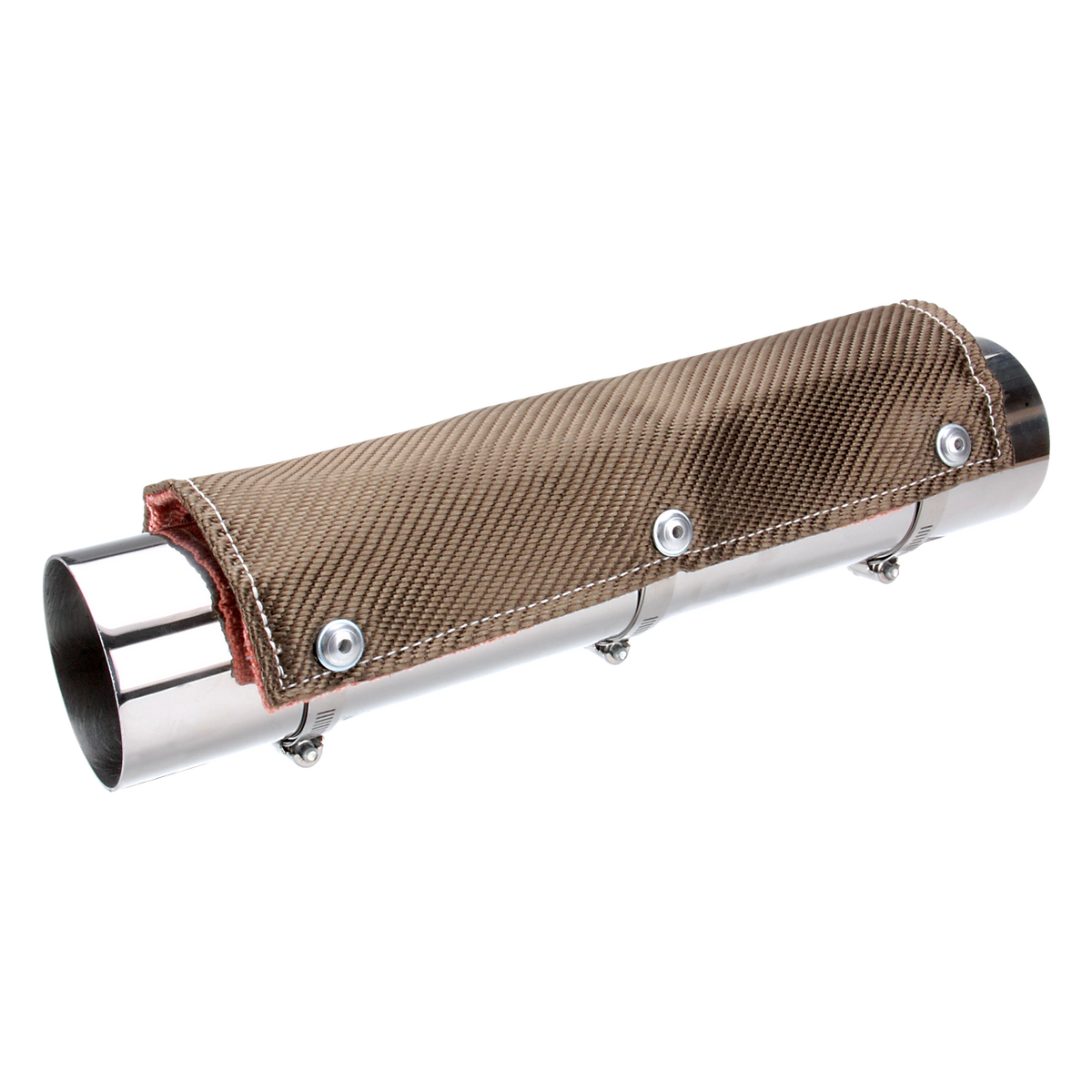

DEI Pipe Shield with Stainless Steel Clamps - 6in x 36in - Titanium

DEI exhaust pipe heat shield, part number 010452.

Pipe Shields solve the problem of needing spot heat protection for exhaust pipes and components.

Extreme heat can rob power and potentially damage engines, transmissions, hoses, and sensitive electrical components. DEI, a market leader in thermal protection, has introduced a revolutionary advancement in pipe shield technology that greatly outperforms Mylar-backed glass fiber shields. DEI's Titanium Pipe Shield combines the high heat tolerance of DEI's TITANIUM LR layer in a proprietary diagonal weave with a unique rivet-based clamp shield design to improve heat dissipation and cooling. Glass fiber shields can begin to fail at 900°F with the Mylar outer material cracking and flaking off. DEI's Titanium Pipe Shield provides heat protection up to 1350°F.

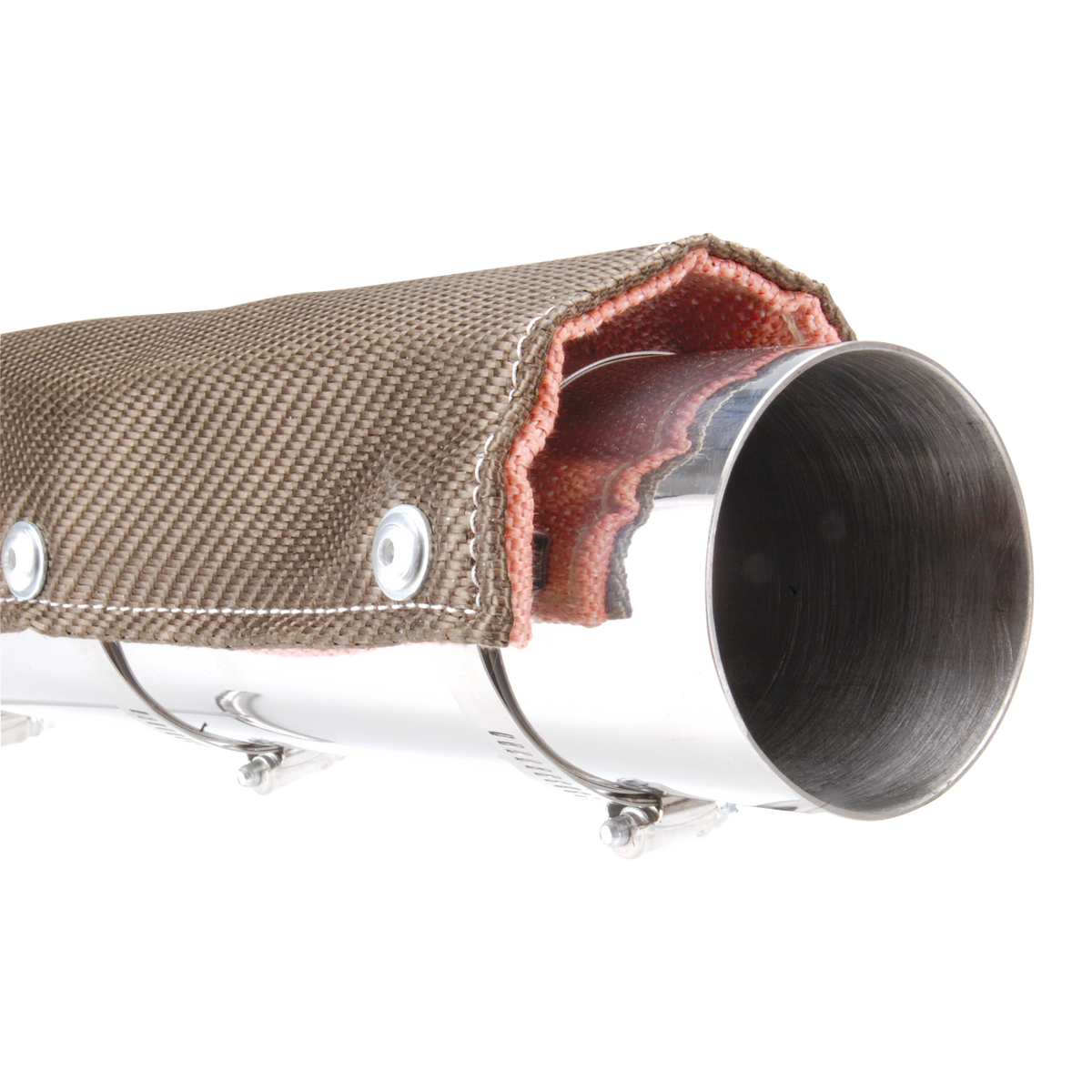

LR fiber technology is a two-ply material. The outer layer is made from pulverized and stranded lava rock into a proprietary tightly woven weave for durability and strength. The inside material is made of a special high temperature resistant fabric (89% silica) designed to withstand 350 degrees more heat than glass fiber. This proprietary fiber technology combined with DEI's unique shield standoff bracket design provides an air gap between the shield and pipe that together provides the maximum potential for cooling and heat dissipation.

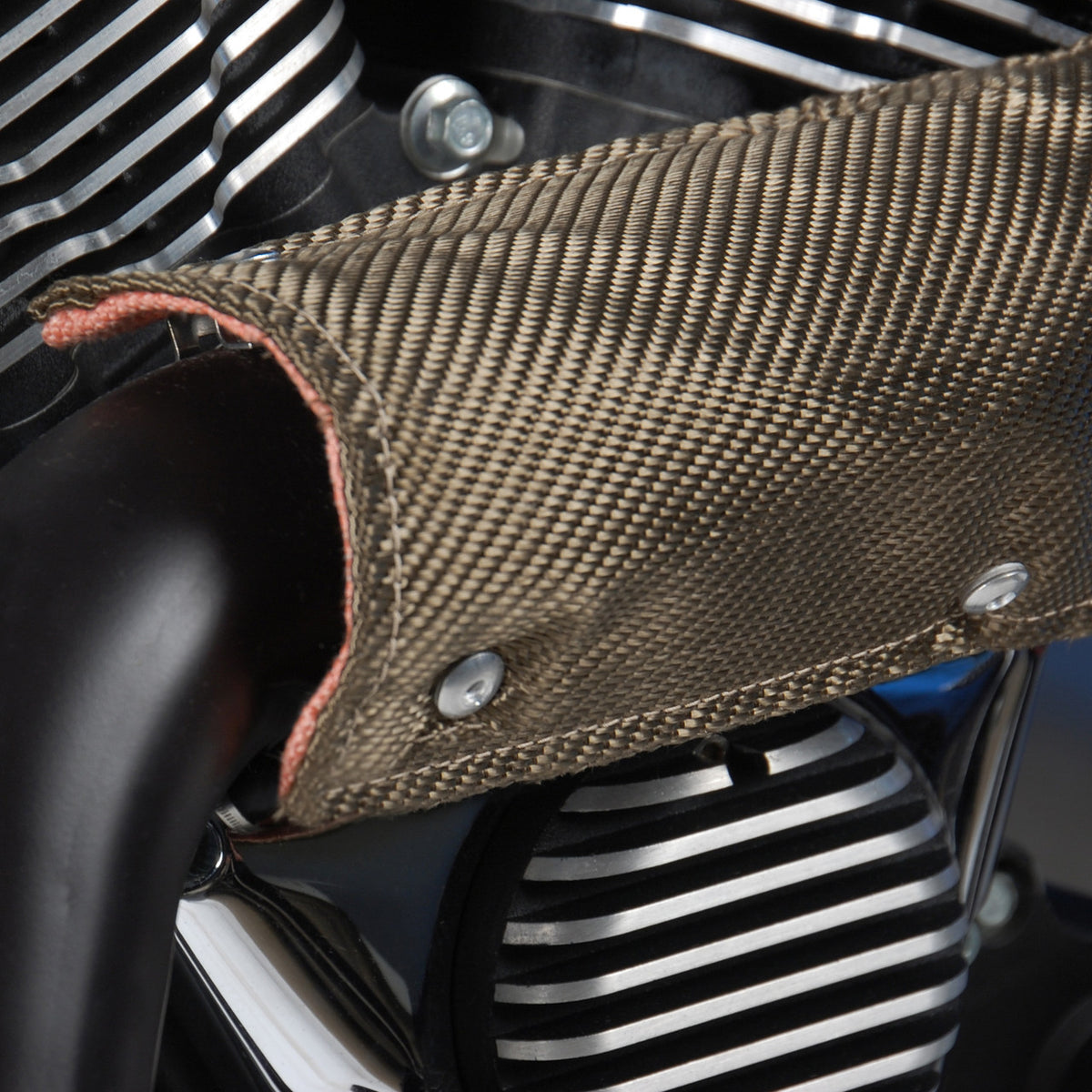

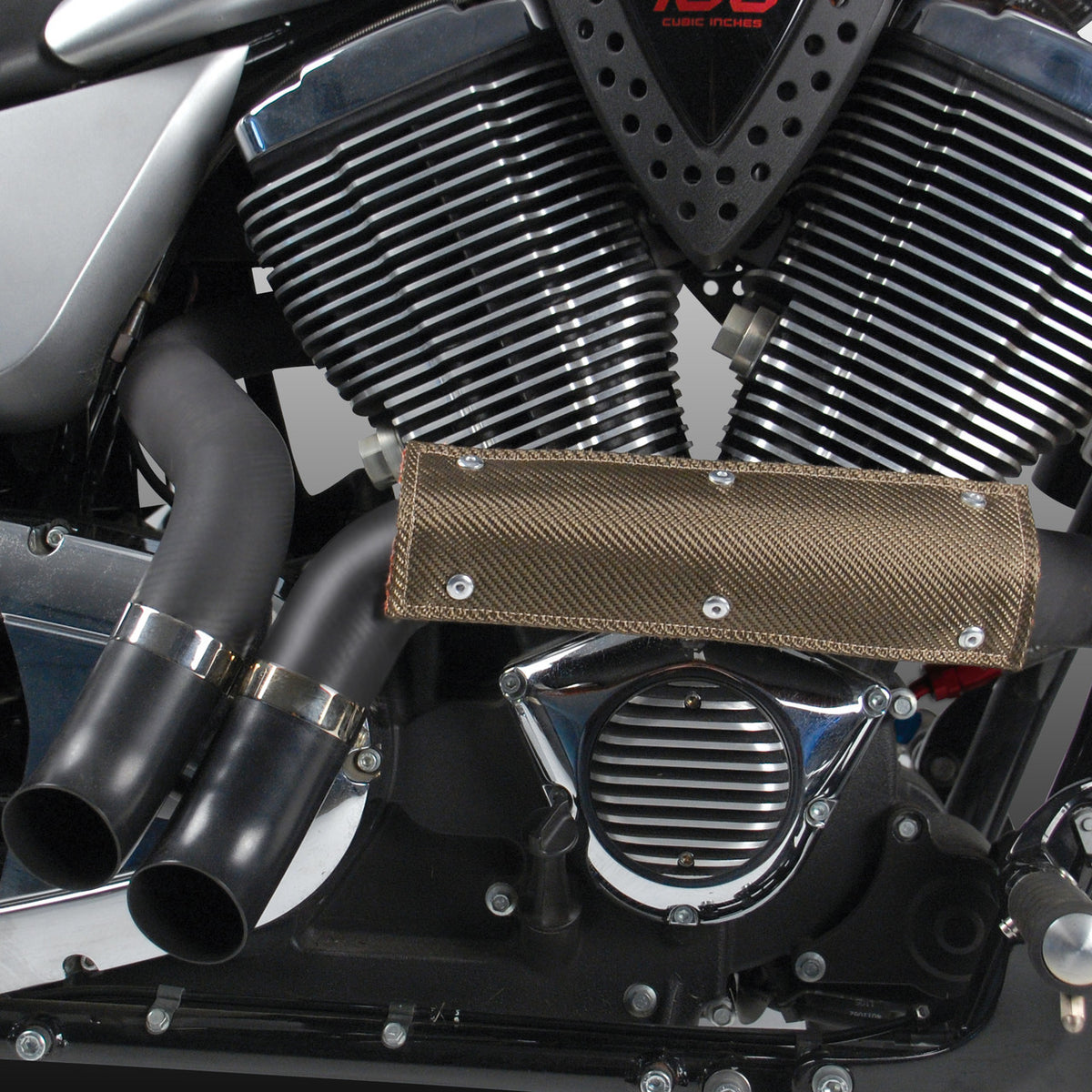

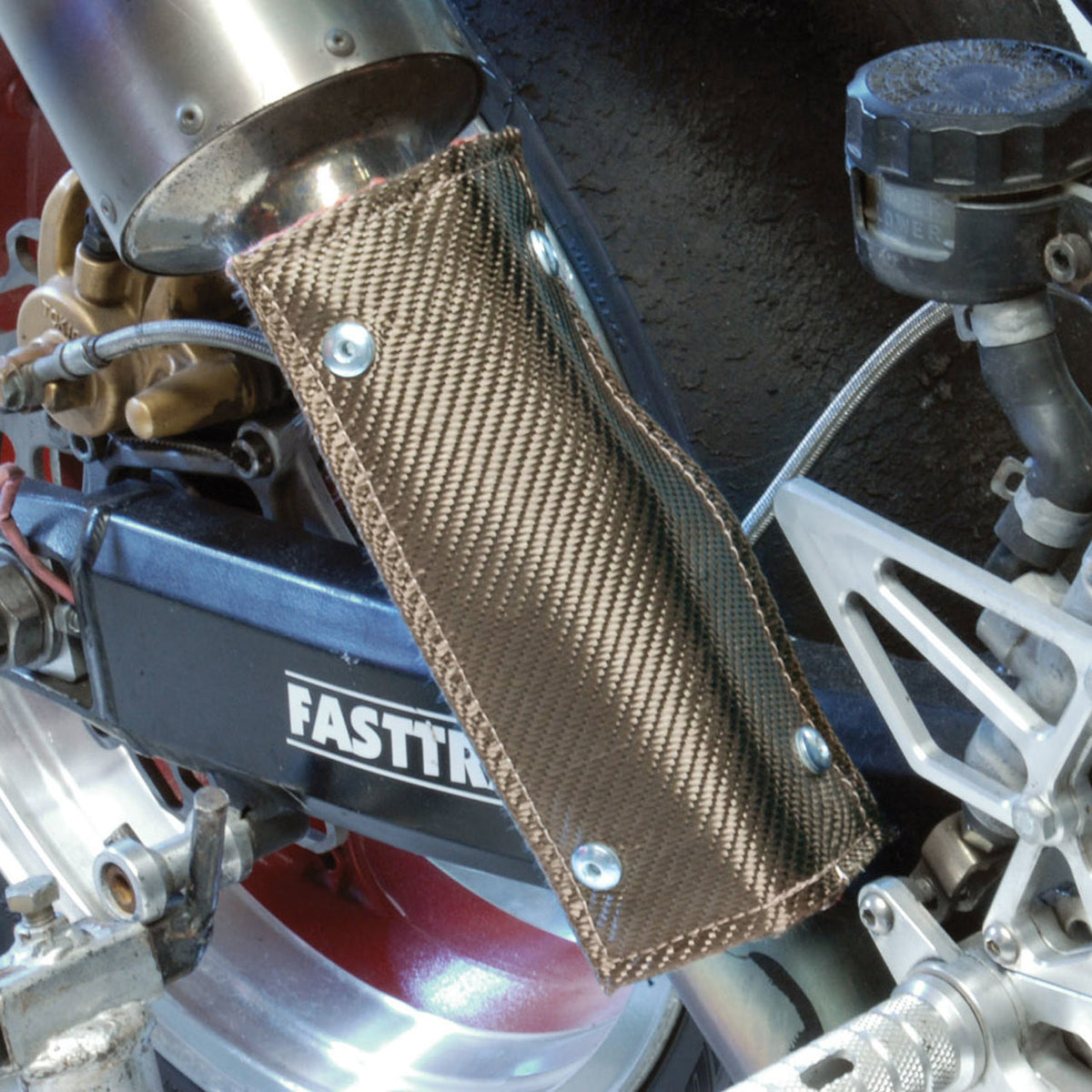

With the strategic placement of DEI's Titanium Pipe Shield near transmissions, brake lines, floorboards, body panels, diesel exhaust stacks or motorcycle pipes, radiant heat can be controlled for maximum protection and performance. Other uses include isolated areas such as sections of the exhaust pipe after the collector, an area that can heat transmission fluid, or along the path of an exhaust system in proximity of gas tanks, differentials and rear facias. The shield is designed for multiple automotive applications as well as marine, powersports, diesel and industrial applications where heat dissipation and thermal control is needed.

Key Features

• Heat protection up to 1350°F
• LR fiber technology is a two-ply material
• Outer layer - pulverized and stranded lava rock woven for durability & strength
• Inside material - high temp resistant fabric (89% silica) designed to withstand 350°F more heat than glass fiber
• Includes 3.5" clamps for pipe diameters up to 3"

Fitment

• Universal application — listed by part number and specification. Confirm the size and specifications below against your application.

Confirm the model year, the configuration and the part number against your vehicle before ordering.

DEI warrants this product to the original retail purchaser to be free from defects in material and workmanship for as long as the purchaser owns the vehicle on which it was originally installed. Coverage is limited to repair or replacement of the defective part, or a refund of the original purchase price, at the manufacturer's option. The warranty does not cover finish wear, misuse, accident, alteration, installation contrary to the instructions, or products installed on vehicles for race or competition.

Specifications

• Brand: DEI (Design Engineering)
• Manufacturer Part Number: 010452
• Type: Exhaust Pipe Heat Shield
• Direct Heat Resistance: 1350°F
• Width: 6 inch
• Length: 36 inch
• Manufacturer Warranty: Limited Lifetime
• Condition: New
• UPC: 607078104526
