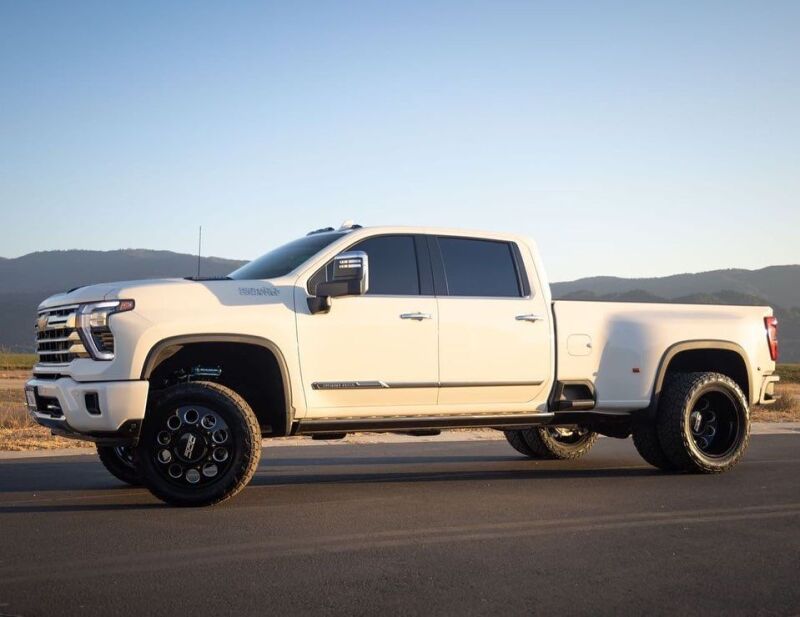

Cognito Motorsports 510-P0931 3-Inch Elite Leveling Kit with King 2.5 Reservoir Shocks for 2020-2024 Chevrolet Silverado / GMC Sierra 2500 HD / 3500 HD
Cognito Motorsports 510-P0931 3-Inch Elite Leveling Kit with King 2.5 Reservoir Shocks for 2020-2024 Chevrolet Silverado / GMC Sierra 2500 HD / 3500 HD
Couldn't load pickup availability
The Cognito Ball Joint SM Series Upper Control Arms add style, function, and performance to your vehicle by correcting the ball joint angle for lifted and leveled applications and improving the allowable droop travel for a better ride quality. The control arm kit features boxed sheet metal arms that are welded, and powder coated semi-gloss black. Pre-installed maintenance free ball joints and pivot bushings are included. Heavy duty ball joints are included as well as new crush sleeves and polyurethane bushings. The Cognito SM Series Upper Control Arms provide ample droop travel that is required for optimal ride quality and all suspension components to last and work properly. Cognito Torsion Bar Keys levels the front with the rear of the truck. Their forged construction makes them practically indestructible and they bolt in for easy installation.
Key Features
- Yields 3 inches of front lift
- Cognito Ball Joint SM Series Upper Control Arm Kit
- Cognito Pitman and Idler Arm Support Kit
- Cognito Torsion Bar Adjuster Key Kit
- King 2.5 Reservoir Shocks with compression adjusters
- Improved ball joint angle
- Maintains adequate droop travel to optimize ride quality
- PISK improves drivability, fuel economy, and tire wear
- Allows for up to a 35 x 12.5-Inch tire on a 9-inch wide wheel with 5-inch backspacing
- 5-hour DIY install time
Fits These Vehicles
- Fits 2020-2024 Chevrolet Silverado 2500 HD
- Fits 2020-2024 Chevrolet Silverado 3500 HD
- Fits 2020-2024 GMC Sierra 2500 HD
- Fits 2020-2024 GMC Sierra 3500 HD
Confirm the model year, the trim and the part number against your vehicle before ordering.
Fits both 2WD and 4WD models.
Cognito Motorsports warrants its suspension products to the original retail purchaser against defects in workmanship and materials for as long as the purchaser owns the vehicle on which they were originally installed. Bushings, bump stops, tie-rod ends, heim joints and limiting straps are wear items and are covered against defects in workmanship for 60 days from the date of purchase. Components that are modified (painted, powder coated, plated or welded), improperly installed, or put into racing or exhibition service are not covered, and the costs of removal, installation and freight are excluded. Shocks and other components made by third-party manufacturers are covered by their own manufacturer warranty.
Specifications
- Brand: Cognito Motorsports
- Manufacturer Part Number: 510-P0931
- Type: Leveling Kit
- Material: Steel
- Manufacturer Warranty: Limited Lifetime (original retail purchaser)
- Condition: New
Images are for illustrative purposes. The product you receive may differ in finish or packaging from the photograph.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Share
🛡️
Manufacturer's Warranty — Cognito Motorsports
▾
Manufacturer's Warranty — Cognito Motorsports
Cognito Motorsports warrants its suspension products to the original retail purchaser against defects in workmanship and materials for as long as the purchaser owns the vehicle on which they were originally installed. Bushings, bump stops, tie-rod ends, heim joints and limiting straps are wear items and are covered against defects in workmanship for 60 days from the date of purchase. Surface finish on undercar components may be considered for up to one year from the date of purchase. Cognito components must be installed as a complete system; mixing in non-Cognito hardware or leaving out required parts voids the warranty. Not covered: parts that have been modified (painted, powder coated, plated or welded), improperly installed, damaged in a collision, misused or put into racing, stunt or exhibition service; police, taxi, government or commercial vehicles; products sold outside the USA; minor cosmetic marks from shipping; and removal, installation, reinstallation, freight, incidental or consequential costs. Components made by other manufacturers (such as shocks) are covered by their own manufacturer. Coverage is limited to repair or replacement of the defective part, and claims are handled directly by Cognito Motorsports through its online warranty claim form.
Warranty terms are set by the manufacturer and may change. Full details and claims are handled directly by Cognito Motorsports. Contact us if you need help with a warranty claim.
