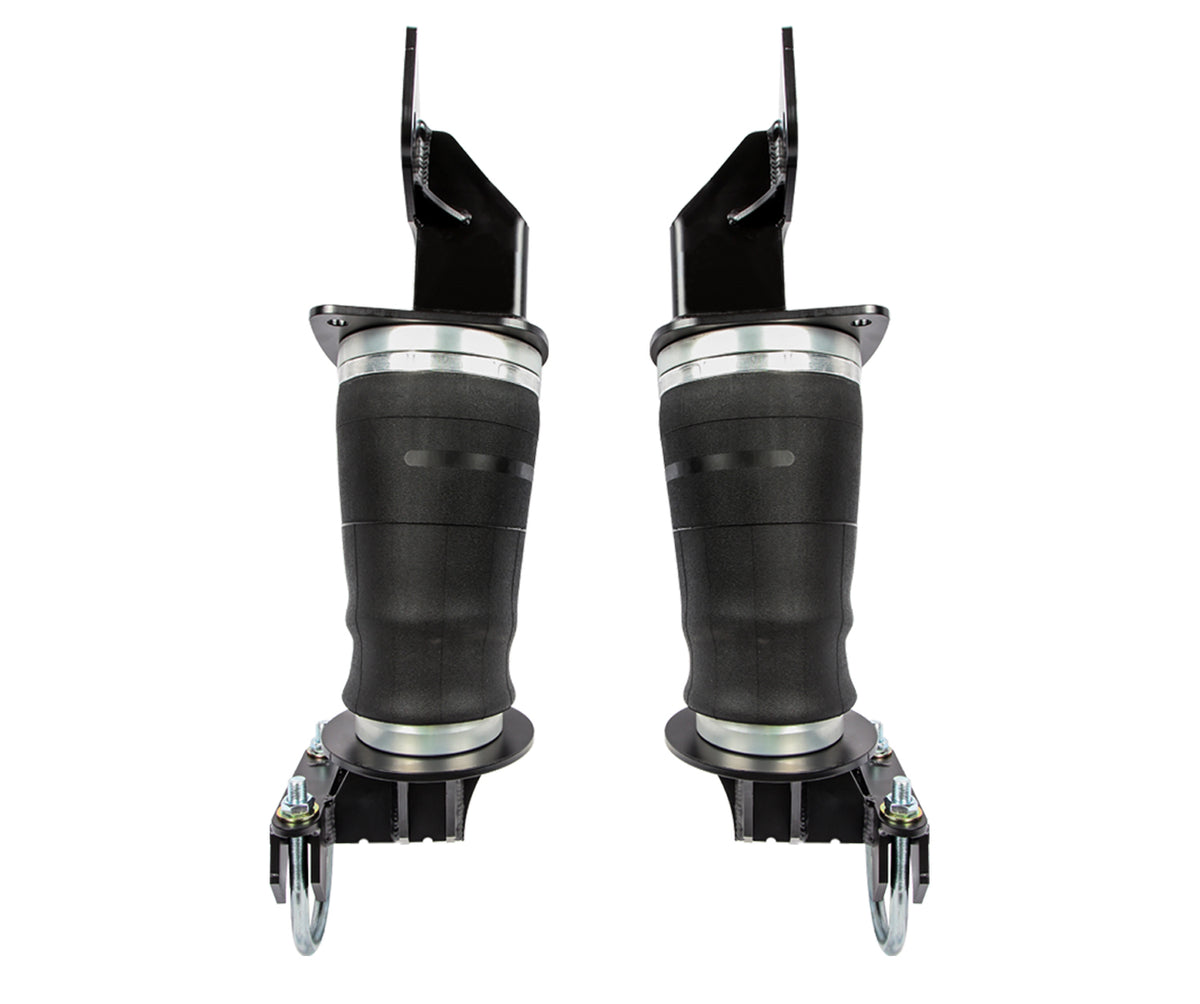

Carli Suspension CS-FLTB-17-35 Long Travel Airbags 3.5 in Axle Tube for 2017-2022 Ford F-350 Super Duty 4x4
Carli Suspension CS-FLTB-17-35 Long Travel Airbags 3.5 in Axle Tube for 2017-2022 Ford F-350 Super Duty 4x4
Couldn't load pickup availability
3.5 in Axle Tube should be confirmed prior to ordering. Our airbags work with up to 12 in of suspension travel and are 100% bolt-on DIY. You can install onboard air or use them manually. These are heavy-duty and rated at 2,000lbs each (up to 4,000lbs of capacity at 100 psi) with a normal operating range of 5 to 75 psi, suitable for big 5th wheels, work trucks, campers, boats, bumper pull trailers and hauling. These were designed to work in conjunction with our Full Progressive Leaf Springs to regain the lost payload capacity and create an adjustable solution for varying loads. These will work with add-a-packs as well but the factory bump-stop tang will need to be cut off the factory block. We recommend 2 in of lift in the rear over trucks with 3 in factory blocks.
Key Features
- Supports up to 12 inches of travel
- Compatible with Carli 4.5 in-5.5 in Suspension Systems ONLY
- Restore Factory Payload to Full Progressive Springs
- Adjustable Rear Loaded height, 2,000lb Capacity per bag at 100psi
- Use Manually (included) or with onboard air System (1/4 in airline compatible)
Fits These Vehicles
- Fits 2017-2022 Ford F-350 Super Duty
Confirm the model year, the trim and the part number against your vehicle before ordering.
4x4 / 4WD models only.
Confirm your rear axle tube diameter before ordering.
What's Included
- Long Travel Air Bag Axle Bracket (4.5 in Lift, 3.5 in Axle) (CS-FLTB-17-BTM-35)
- Long Travel Airbags Upper Frame Brackets & Hardware (CS-FLTB-17-UPR)
Specifications
- Brand: Carli Suspension
- Manufacturer Part Number: CS-FLTB-17-35
- Type: Air Spring Kit
- Condition: New
Images are for illustrative purposes. The product you receive may differ in finish or packaging from the photograph.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Share
🛡️
Manufacturer's Warranty — Carli Suspension
▾
Manufacturer's Warranty — Carli Suspension
Carli Suspension warrants the products it manufactures against defects in workmanship and materials with a limited lifetime warranty for the original purchaser, counted from the date of purchase. Parts made to Carli’s specifications by other manufacturers carry their own coverage: Carli-SPEC shocks and Carli stainless steering stabilizers are covered for 1 year from purchase and serviced by Carli; Carli Signature Series shocks carry a limited lifetime warranty serviced by Carli; King shocks are covered for 90 days from purchase and serviced by King Shocks; E-Venture shocks and electronics are covered for 1 year from purchase and serviced by Suspension Direct; Deaver leaf springs are covered for 30 days from installation against material or manufacturing defects. CS-DBJP ball joints carry the limited lifetime warranty when both the upper and lower Carli ball joints are installed. Not covered: wear items (bushings, heim joints, uniballs, airbags and limit straps); rust or corrosion; coil springs on trucks with heavier-than-stock setups such as winch bumpers or snow plows; parts that have been altered or installed incorrectly; and removal, installation, freight, incidental or consequential costs. Coverage is limited to repair or replacement of the defective part. Claims require proof of purchase from the original purchaser and are handled directly by Carli Suspension, or by King Shocks or Suspension Direct for their shocks.
Warranty terms are set by the manufacturer and may change. Full details and claims are handled directly by Carli Suspension. Contact us if you need help with a warranty claim.
