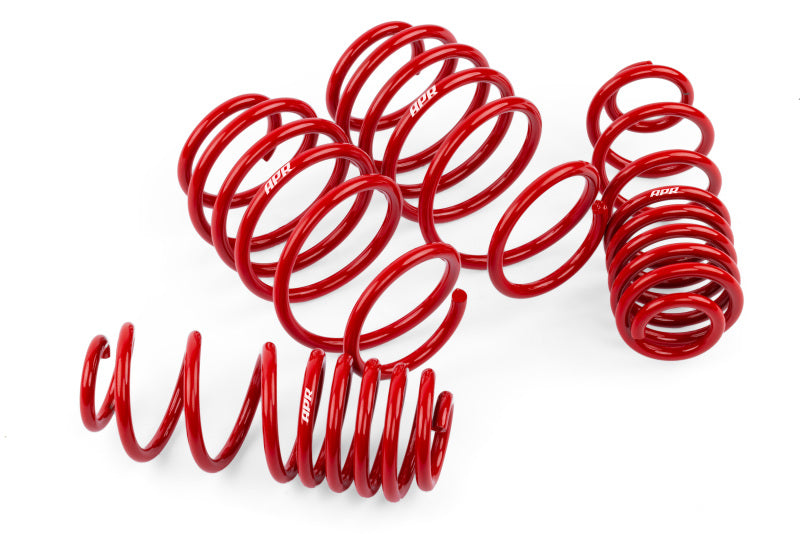

APR 15-21 Volkswagen Golf R/GTI (MK7/MK7.5) Roll-Control Lowering Springs - Red

These springs were designed in house and manufactured in the USA using a premium high tensile chrome silicon steel for excellent resilience against sagging and failure for years to come. Each spring comes powder coated in our signature red color, further protecting the spring from the elements. The front and rear springs are a dual rate spring that will operate as a single rate, linear spring, under normal loaded driving situations. All center of wheel to fender (CF) measurements were recorded on our in-house US Spec 2017 MK7 GTI (Non-DCC), US Spec 2018 MK7.5 GTI (DCC), and US Spec 2018 MK7.5 Golf R (DCC) test vehicles and may vary slightly from vehicle to vehicle. Lastly, while this system was designed specifically for the MK7 / MK7.5 GTI, it will fit other similar platform vehicles.

Many lowering springs on the market today simply lower your vehicle and give a false sense of improvement by feeling overly stiff. We took a different approach with our design. We extensively track and street tested several iterations to deliver a system that not only makes your GTI and Golf R look great, but does so while delivering a comfortable experience that doesn't constantly compress and ride on the bump stops or crash and bottom out the dampers. Through a proper ride height configuration, we're able to greatly increase spring rates for improved handling, but do so without leaving the ride harsh, bouncy, and uncomfortable. Your GTI will be planted with a minimal impact on comfort. It's a system you'll love the second you're behind the wheel!

APR Roll-Control Lowering Springs greatly improve the looks and handling of your Volkswagen MK7 / MK7.5 GTI and Golf R without greatly sacrificing comfort or your wallet! Designed for use with DCC or Non-DCC dampers, our performance lowering springs are a direct plug-and-play upgrade that offer a lower center of gravity and increased spring rates to reduce body roll.

216 lbs/in (OEM) vs 323 lbs/in (APR) or a 50% increase in Spring Rate

245 lbs/in (OEM) vs 362 lbs/in (APR) or a 48% increase in Spring Rate

226 lbs/in (OEM) vs 362 lbs/in (APR) or a 60% increase in Spring Rate

250 lbs/in (OEM) vs 362 lbs/in (APR) or a 45% increase in Spring Rate

184 lbs/in (OEM) vs 323 lbs/in (APR) or a 76% increase in Spring Rate

215 lbs/in (OEM) vs 323 lbs/in (APR) or a 50% increase in Spring Rate

362 mm (OEM) vs 340 mm (APR) or a 22 mm reduction in CF Height

370 mm (OEM) vs 333 mm (APR) or a 37 mm reduction in CF Height

368 mm (OEM) vs 350 mm (APR) or a 18 mm reduction in CF Height

367 mm (OEM) vs 335 mm (APR) or a 32 mm reduction in CF Height

356 mm (OEM) vs 333 mm (APR) or a 22 mm reduction in CF Height

346 mm (OEM) vs 341 mm (APR) or a 5 mm reduction in CF Height

US 2019 MK7.5 Golf R (DCC) Front:

US 2017 MK7 GTI (Non-DCC) Front:

US 2019 MK7.5 Golf R (DCC) Rear:

US 2017 MK7 GTI (Non-DCC) Rear:

US 2018 MK7.5 GTI (DCC) Front:

US 2018 MK7.5 GTI (DCC) Rear:

Specifications:

Features

• Increases Spring Rate 50% or +107 lbs/in at 323 lbs/in Front / 48% or +117 lbs/in at 362 lbs/in Rear (MK7.5 Golf R DCC)
• Increases Spring Rate 76% or +139 lbs/in at 323 lbs/in Front / 45% or +112 lbs/in at 362 lbs/in Rear (MK7 GTI Non-DCC)
• Increases Spring Rate 50% or +108 lbs/in at 323 lbs/in Front / 60% or +136 lbs/in at 362 lbs/in Rear (MK7.5 GTI DCC)
• Made from a high tensile chrome silicon steel that resists sagging and failure
• Lowers 18 mm or 0.71 in Front / 32 mm or 1.26 in Rear (MK7 GTI Non-DCC)
• Lowers 5 mm or 0.20 in Front / 22 mm or 0.87 in Rear (MK7.5 Golf R DCC)
• Does not constantly compress or ride on the OEM progressive bump stops
• Lowers 22 mm or 0.87 in Front / 37 mm or 1.46 in Rear MK7.5 GTI DCC)
• Operates as a single rate “linear” spring during loaded usage
• Powder coated red finish protects springs from corrosion
• Dual Rate Spring (185 lbs/in to 323 lbs/in Front)
• Designed for use with DCC and Non-DCC OEM dampers
• Dual Rate Spring (155 lbs/in to 362 lbs/in Rear)
• Greatly improves vehicles stance and appearance
• Lowers the vehicle’s center of gravity
• Does not easily bottom out dampers
• Remains comfortable on the street
• Direct plug-and-play
• Reduces body roll
• Improves handling
• Made in the USA

Vehicle Fitment

• 2015-2019 Volkswagen Golf R
• 2015-2021 Volkswagen GTI
• 2019 Volkswagen GTI
• 2017 Volkswagen GTI

Please verify exact fitment (engine, submodel, and trim) before purchasing.

Manufacturer Part Number: SUS00014

Images are for illustration purposes only; actual product may vary.
