• Aeromotive Fuel Pump - Phantom Trifekta Universal In-Tank - 450lph - 6-10in Depth
1 5

Aeromotive

Aeromotive Fuel Pump - Phantom Trifekta Universal In-Tank - 450lph - 6-10in Depth

Aeromotive Fuel Pump - Phantom Trifekta Universal In-Tank - 450lph - 6-10in Depth

$ 1,996.93
$ 2,216.58 $ 1,996.93
✓ In Stock • Ready to Ship
Shipping calculated at checkout.

NEW RETURNLESS STYLE KIT OPTION: Introducing the New Aeromotive Returnless Phantom Fuel System Kits. Engineered Specifically for use with the Vaporworx Fuel Pump Controllers. Utilizing the Vaporworx controller, we are able to completely eliminate the need for a fuel pressure regulator and return line. The Vaporworx fuel pump controller instantly varies the speed of the fuel pumps based on demand with use of a simple MAP sensor, creating an OEM+ style system, like all late model cars. This reduces the amount of heat introduced by the pump, creates quieter operation and improves overall efficiency. Please note: Requires the use of VaporWorx Fuel Pump Controller to run Returnless Style (#66142). Kit does not include fuel pump controller, but does include an additional 85psi in-tank overpressure fail safe valve.

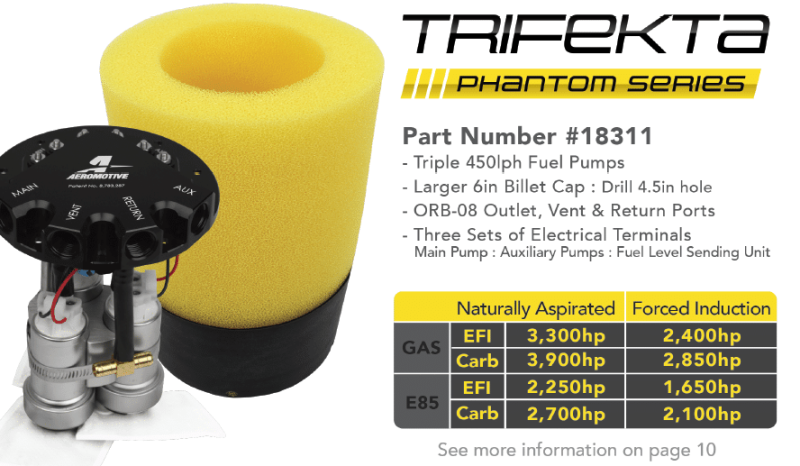

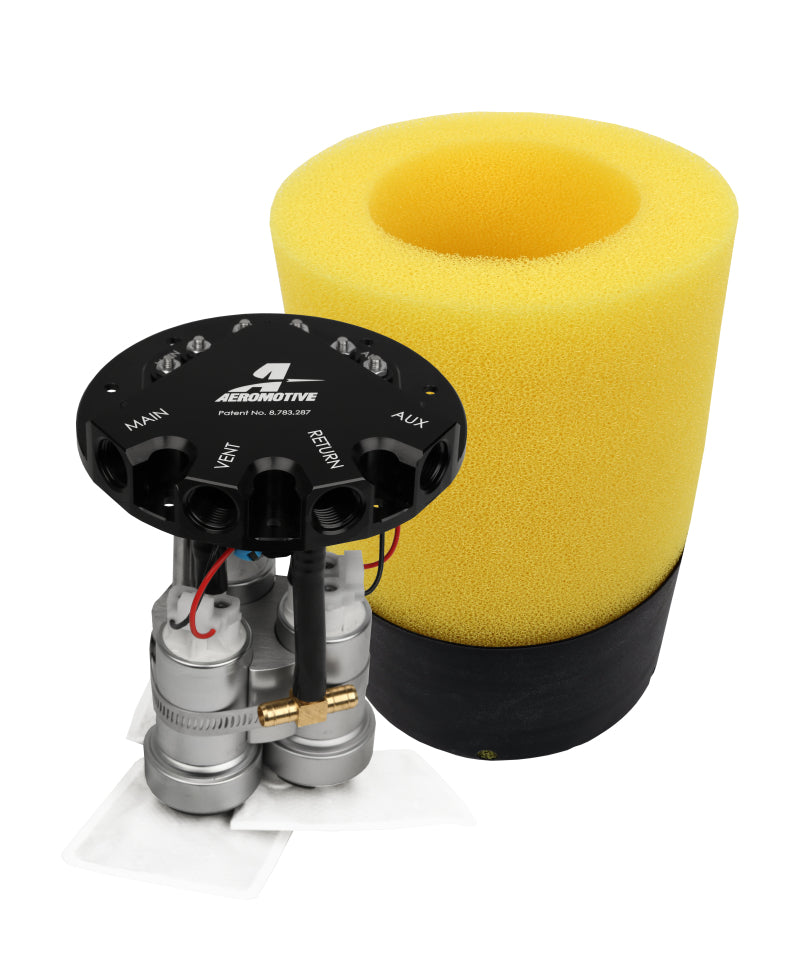

Aeromotive’s Phantom Trifekta is designed to extend the patented Phantom technology into the realm of ultra-high horsepower street/strip applications. Equipped with triple 450lph, E85 friendly Walbro pumps, the new Aeromotive Trifekta supports staged pump control to reduce recycling and improve continuous duty capability. The Trifekta is ready to feed blown EFI applications making a whopping 1,650 FWHP on E85 and as much as 2,400 FWHP on gas.

Fuel Injected: GAS

Up to 3,300 FWHP - naturally aspirated

Up to 2,400 FWHP - forced induction

Carbureted Engines: GAS

Up to 3,900 FWHP - naturally aspirated

Up to 2,850 FWHP - forced induction

Fuel Injected: E85

Up to 2,250 FWHP - naturally aspirated

Up to 1,650 FWHP - forced induction

Carbureted: E85

Up to 2,700 FWHP - naturally aspirated

Up to 2,100 FWHP - forced induction

  • Triple 450lph Walbro Fuel Pumps
  • Patented Phantom Bladder technology

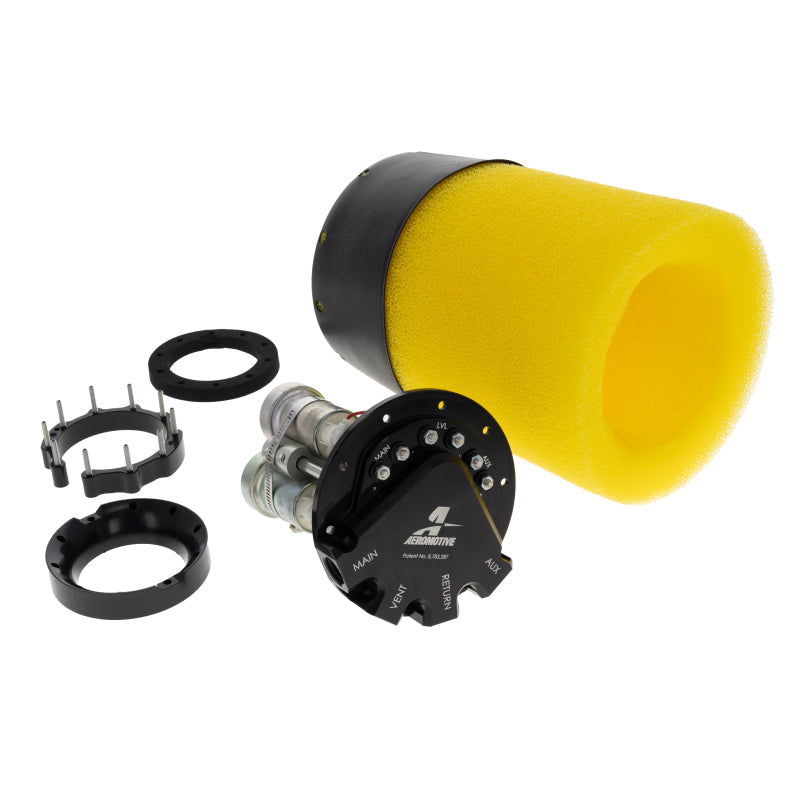

  • Includes everything required to mount in-tank
  • ORB-08 Outlet, Vent & Return Ports
  • 6in Billet Top Cap : Requires Drilling 4.5in hole
  • Three Sets of Electrical Terminals : Main Pump, Auxiliary Pumps and Fuel Level Sending Unit
  • Must be used with a return style system (or returnless with the Returnless Style Kit option). If you run the Returnless Style Kit, you must also purchase the VaporWorx #66142 Fuel Pump Controller separately.
  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

Manufacturer Part Number: 18311

CARB / Emissions Note: This product is not CARB approved for sale or use on pollution-controlled motor vehicles. Legal for off-road/racing use only where applicable.
