• Aeromotive Brushless Pro+-Series Fuel Pump External In-Line
1 5

Aeromotive

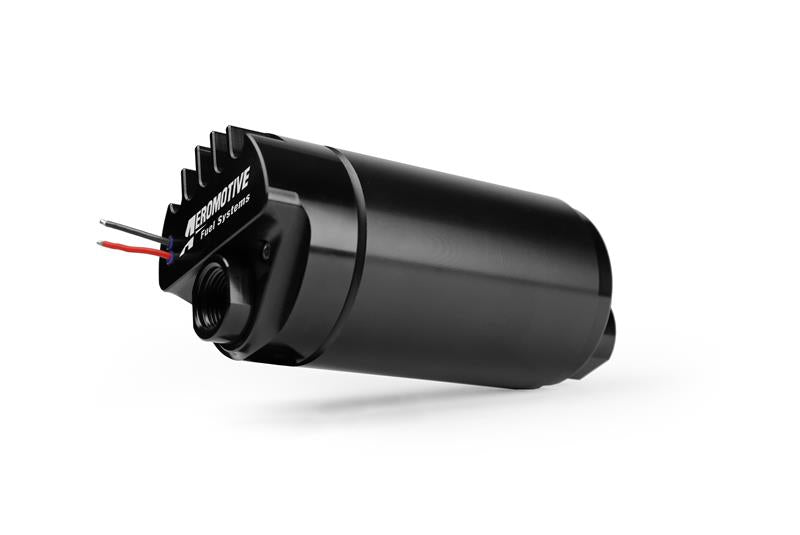

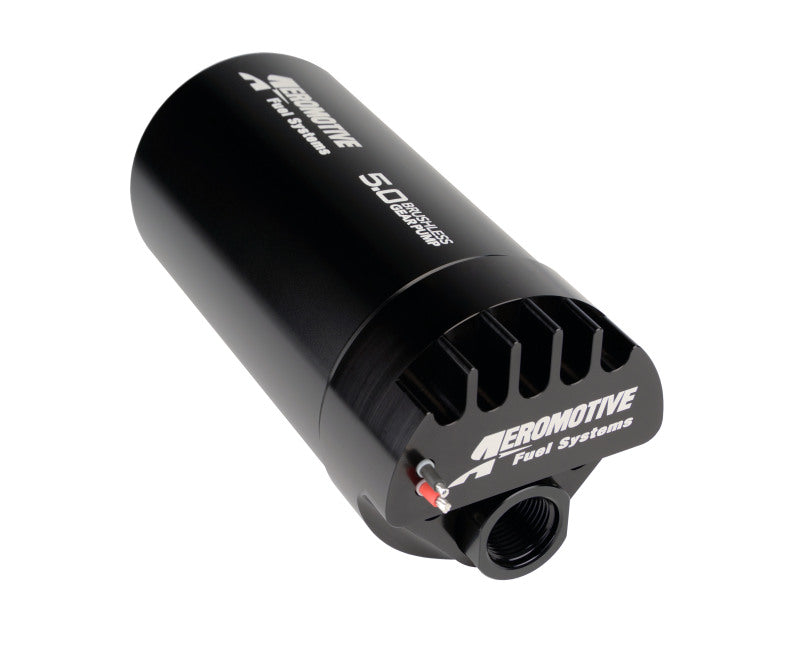

Aeromotive Brushless Pro+-Series Fuel Pump External In-Line

Aeromotive Brushless Pro+-Series Fuel Pump External In-Line

$ 1,824.50
$ 2,025.19 $ 1,824.50
✓ In Stock • Ready to Ship
Shipping calculated at checkout.

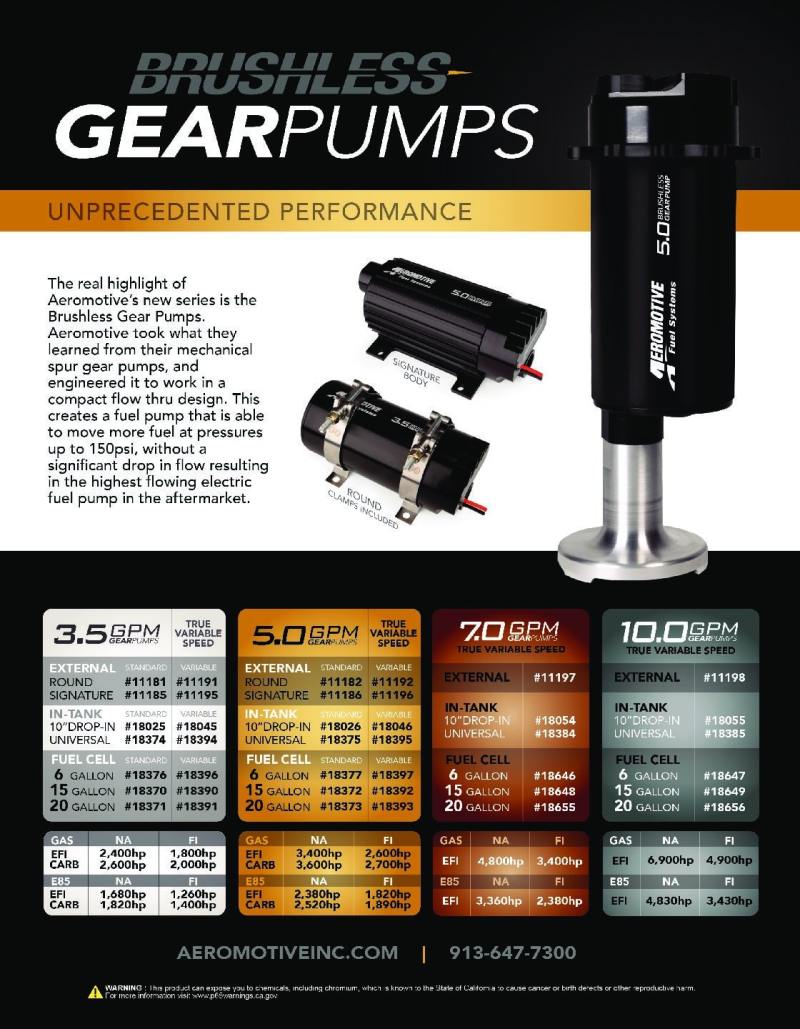

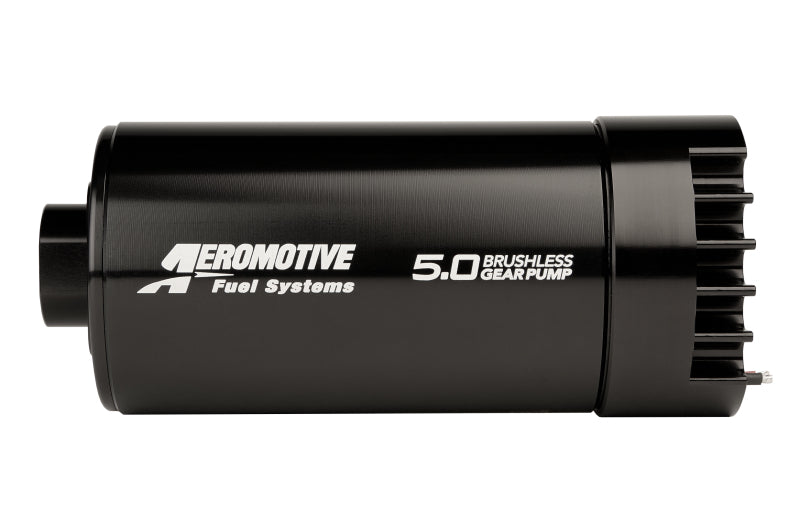

5.0 Brushless Spur Gear Pump

Ground Shaking Performance - Advanced Technology

EFI Rated flow of 1,700 lbs./hr. @ 40 psi, 13.5 volts

Carb Rated Flow of 1,850 lbs./hr. @ 9 psi, 13.5 volts

  • Supports Fuel injected engines: GAS up to 3400 FWHP - naturally aspirated up to 2600 FWHP - forced air induction Carbureted engines: GAS Up to 3600 FWHP - naturally aspirated Up to 2700 FWHP - forced air induction Fuel injected engines: E85 up to 2380 FWHP – naturally aspirated up to 1820 FWHP – forced air induction Carbureted engines: E85 Up to 2520 FWHP – naturally aspirated Up to 1890 FWHP – forced air induction Fuel injected engines: METHANOL up to 1,190 FWHP – naturally aspirated up to 910 FWHP – forced air induction Carbureted engines: METHANOL Up to 1,260 FWHP – naturally aspirated Up to 945 FWHP – forced air induction
  • Lighter than the traditional external mount pumps.
  • Reduced current draw at higher, EFI pressures.
  • Extended service life in methanol and ethanol.
  • New integral spur-gear pumping mechanism.
  • 90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost.
  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
  • Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.
  • ORB-12 inlet and ORB-10 outlet ports.
  • Requires straight 12-VDC to 16-VDC power supply. Aeromotive Brushless pumps are not designed for use with 16v charging systems, typically operating in the 16-18v range. If you are running a 16v charging system, the use of a voltage regulator or step down to typical 12v charging system voltages will be necessary.
  • Not compatible with pulse modulated systems or fuel pump speed controllers.

Manufacturer Part Number: 11182

CARB / Emissions Note: This product is not CARB approved for sale or use on pollution-controlled motor vehicles. Legal for off-road/racing use only where applicable.

⚠ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Manufacturer's Warranty — Aeromotive

Aeromotive warrants its products to the original U.S. retail purchaser to be free from defects in materials and workmanship for one (1) year from the date of purchase or delivery, whichever is later. Coverage applies only to products purchased from Aeromotive or its authorized dealers, and a valid dated proof of purchase is required. If a covered product is found defective, Aeromotive will repair or replace it; this remedy is limited to the product's sale price, and Aeromotive is not liable for incidental or consequential damages (some states do not allow such limitations, so this may not apply to you). To start a warranty claim, contact Aeromotive for a Return Goods Authorization (RGA) with your part, a description of the issue, and proof of purchase. Returns of new, resaleable items are accepted within 90 days of purchase with prior authorization; a restocking fee may apply and return shipping is the buyer's responsibility.

Warranty terms are set by the manufacturer and may change. Full details and claims are handled directly by Aeromotive. Contact us if you need help with a warranty claim.
