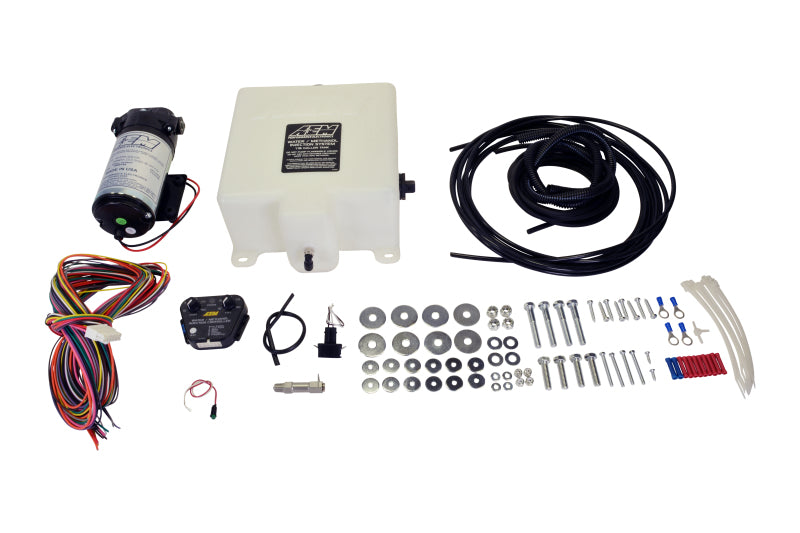

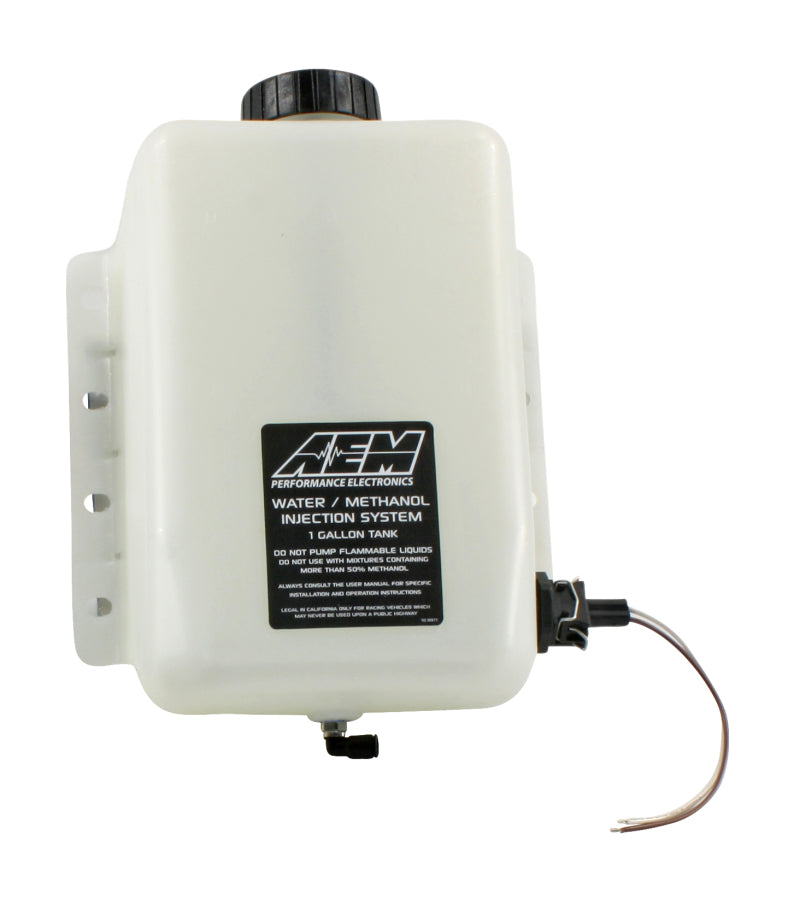

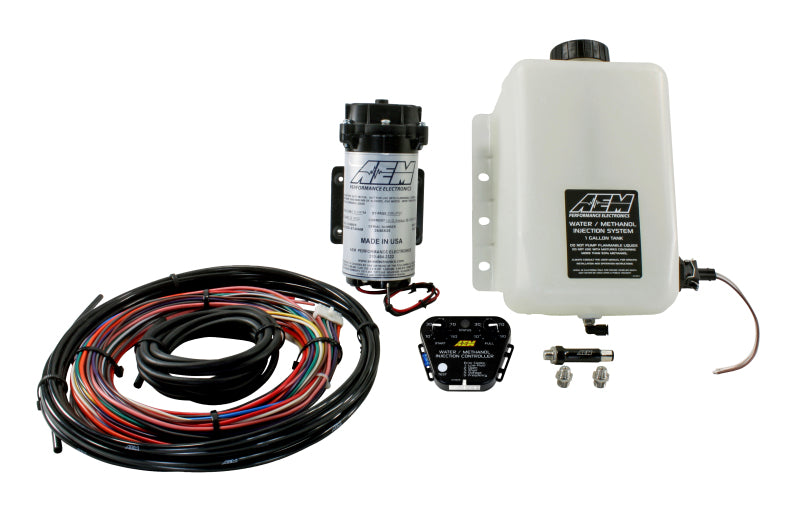

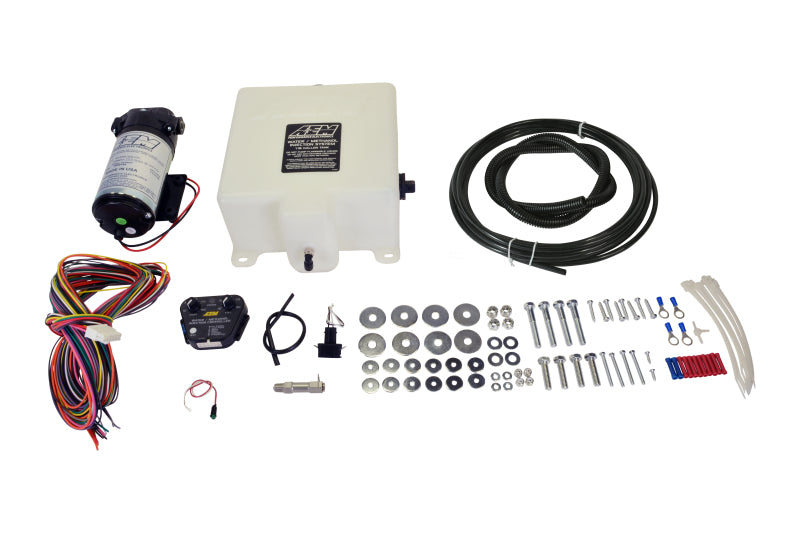

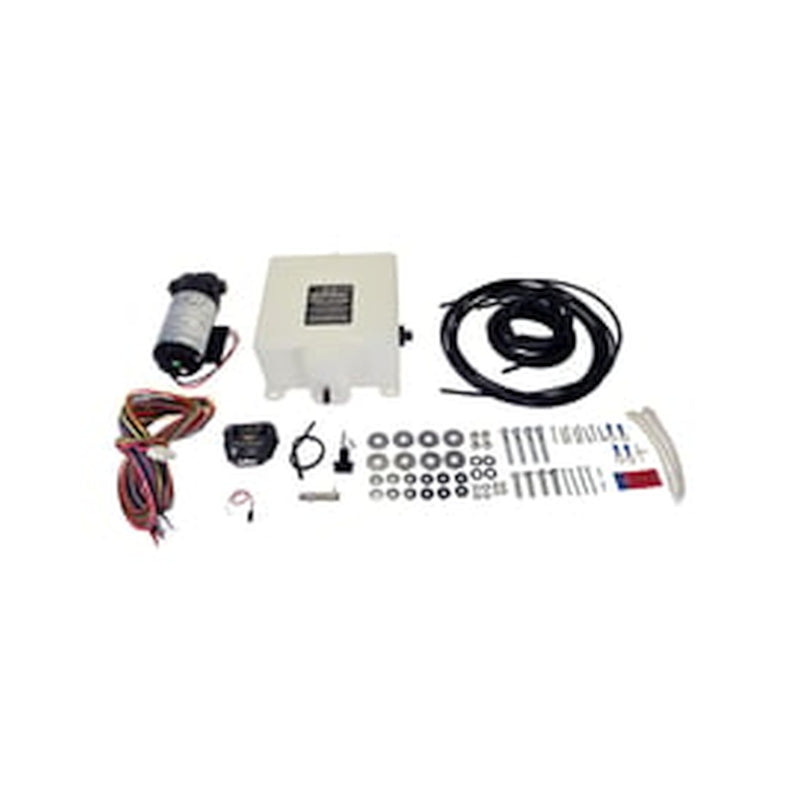

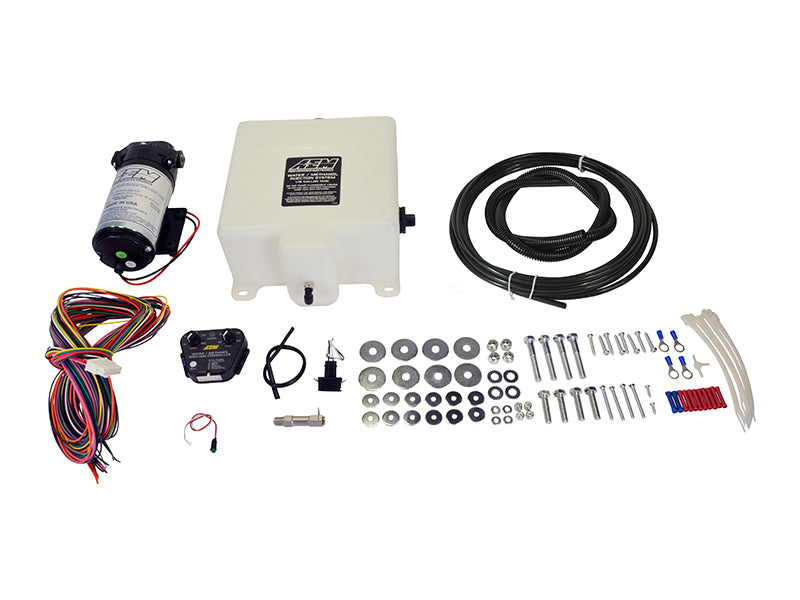

AEM V3 One Gallon Water/Methanol Injection Kit - Multi Input

THE AEM WATER/METHANOL INJECTION SYSTEM ADVANTAGE

Water/methanol injection for forced induction (turbocharged or supercharged) gas-powered race engines is a proven means for effectively reducing engine inlet air temperatures and suppressing harmful detonation. This allows racers to reliably increase boost and advance ignition timing-without using high-octane racing fuel-for power gains of up to 20%. AEM's Water Injection Kits utilize robust hardware and deliver more advanced features than any other comparably priced water/methanol injection system.

Water/Methanol for All Boost Levels of Forced Induction Gas Race Engines

AEM offers two different water/methanol controller designs for gas vehicles:

One is boost dependent for forced induction vehicles up to 35 PSI of boost (kit PN 30-3300). The Boost Dependent controller has an on-board manifold absolute pressure (MAP) sensor with a molded-in nipple for a boost hose pickup.

The second controller (Kit PN 30-3350) features a multiple input design that enables users to install AEM's Water/Methanol Injection Kit on ultra-high boost vehicles (above 35 PSI) using a 0-5v voltage-based external MAP sensor.

Note: FOR OPTIMUM RESULTS, ALL WATER/METHANOL INJECTION SYSTEMS AND FLOW GAUGES SHOULD BE RUN WITH AN WMI INLINE FILTER (PN 30-3003). For additional insurance against unintended flow, particularly when the pump and tank must be installed higher than the injections nozzle, we recommend adding our optional High-Flow Low-Current WMI Solenoid (PN 30-3326).

Features

• Terminated harness features positive lock connector with integrated pump ground circuit and additional wire for optional on/off flow solenoid
• Includes "Boost Safe" readiness failsafe system
• One machined billet injector with integral check valve to prevent unintended flow
• Recirculation-style pump with integral fittings for quiet operation

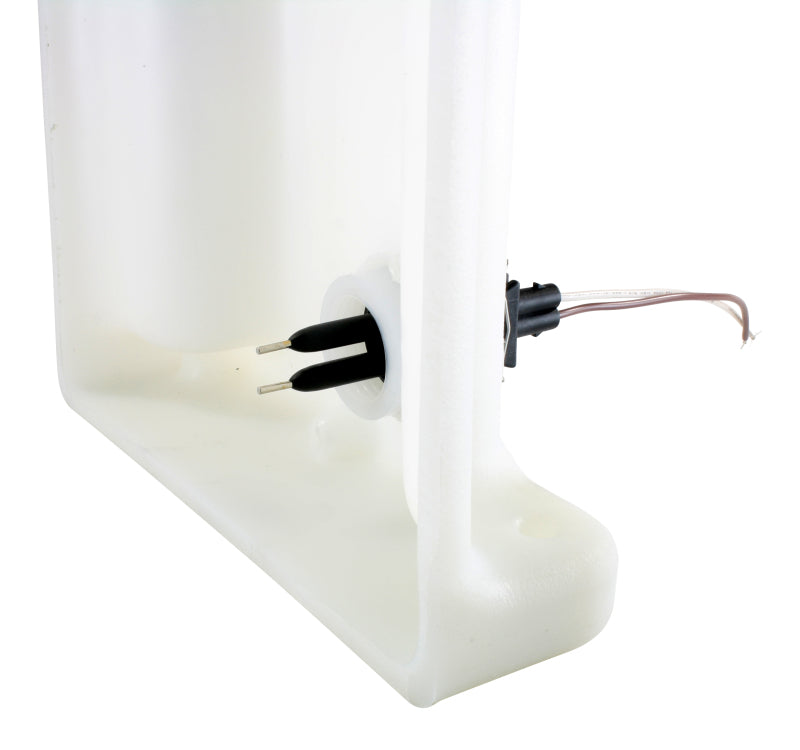

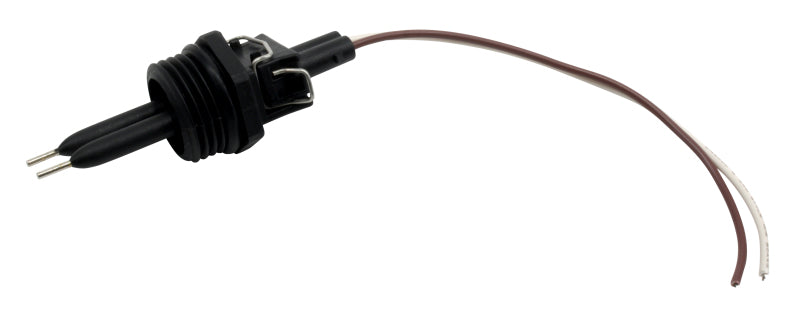

• LED dash light for system status and low fluid warning
• 20 ft. of high-pressure Nylon injection tubing

Application: Universal — verify fitment for your setup. This is a performance/fabrication component not tied to a specific vehicle year/make/model.

Manufacturer Part Number: 30-3350

Images are for illustrative purposes only. Actual product may vary.

Emissions Note: This product is not CARB approved and is not legal for sale or use on pollution-controlled motor vehicles in California, or in states that have adopted California emission standards. It is intended for off-road / racing use only. It is the responsibility of the installer/end-user to ensure compliance with all applicable federal, state and local emissions regulations.
