AEM
AEM 12 Position Universal Trim Pot
AEM 12 Position Universal Trim Pot
Couldn't load pickup availability

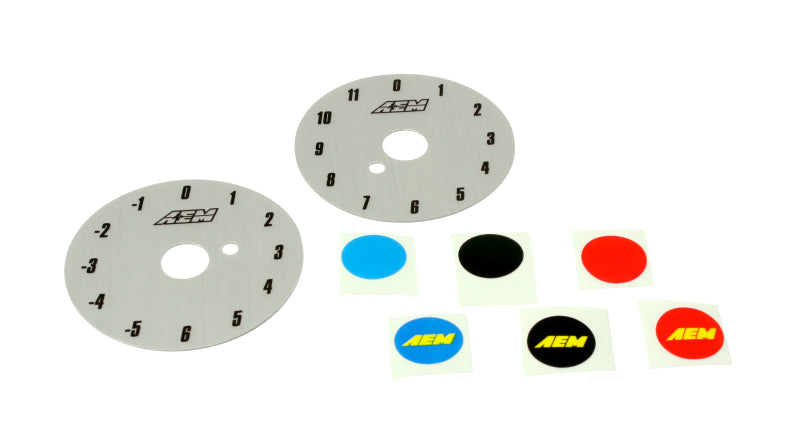

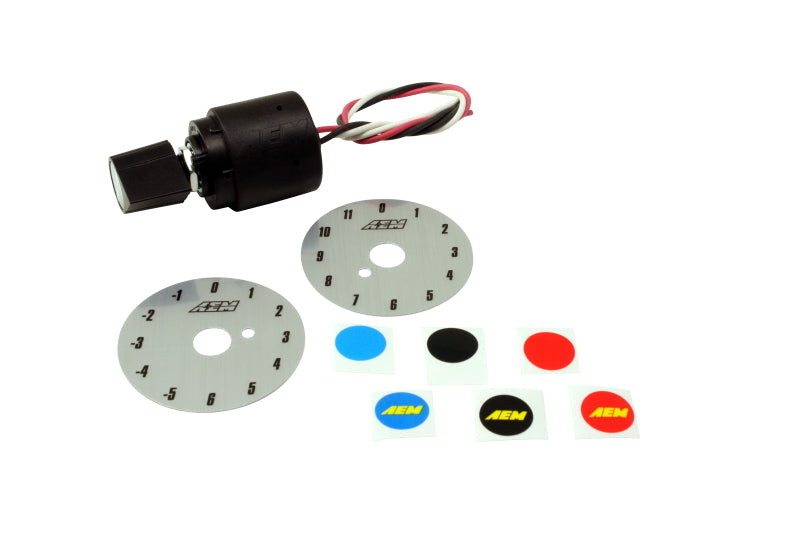

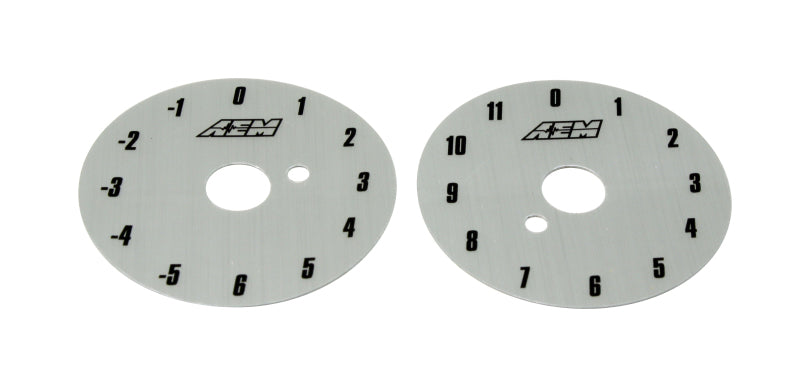

The Universal 12 Position Trim Pot is for use on virtually any Engine Management System, such as the AEM EMS. Use the Trim Pot to adjust a number of trims, including ignition timing, fuel, boost, etc. The Universal 12 Position Trim Pot includes: 12 Position Trim Pot with Flying Lead, 2 Brushed Silver Trim Position Decals with ranges from -5 to +6 and 0 to +11, Blue/Red/Black AEM Logo Knob Decals & Blue/Red/Black Colored Knob Decals.
Trim potentiometer can be used with virtually any engine management system

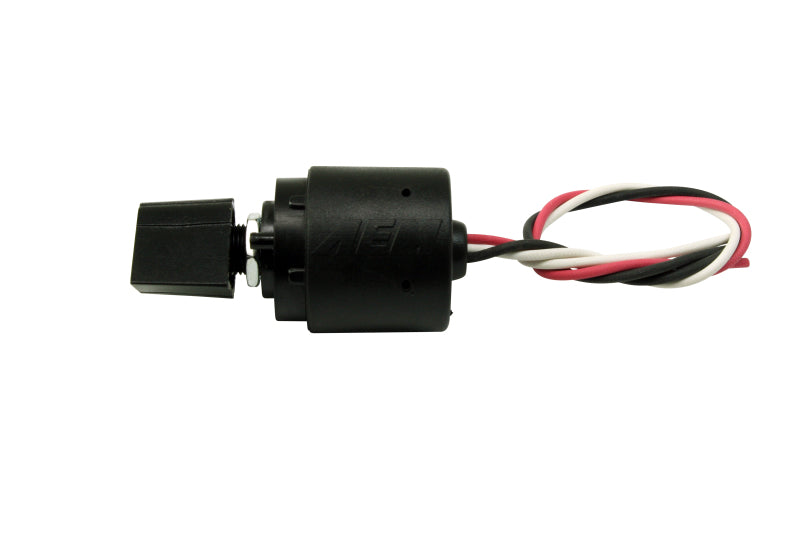

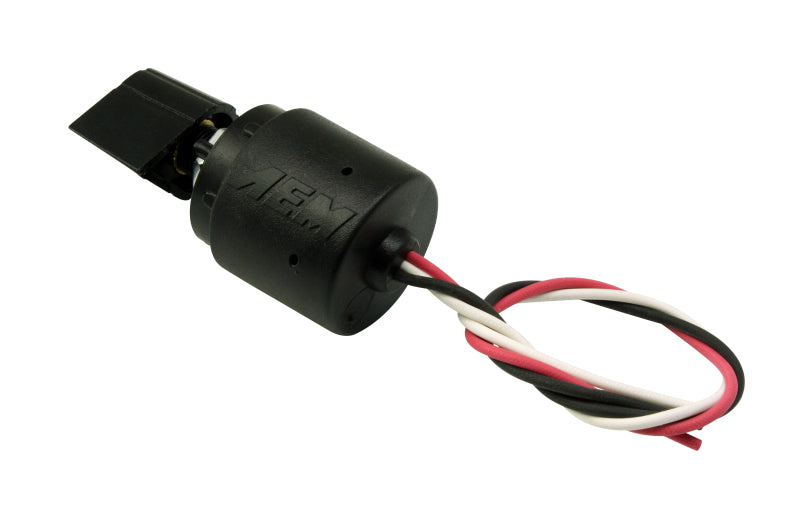

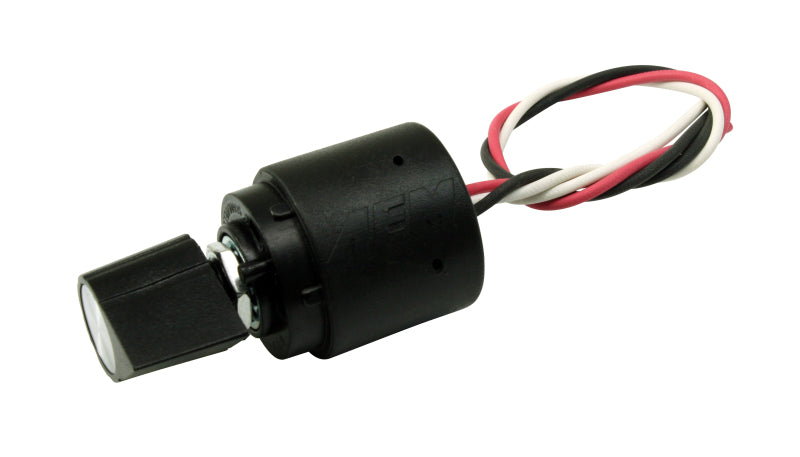

Includes a weatherproof-over-molded flying lead that has 12-inch insulated, color-coded wires, two brush silver Trim Position decals, and black AEM logo adjustment knob
Adjusts a number of trims, including ignition timing, fuel, boost, etc.
Features
- 12 Position Trim Pot Performance Specifications
- Total Resistance: 14.3KO
- Cycles Minimum: 10,000
- Positions: 12
- Degree Rotation: 330
- Mounting: 3/8" Hole
- Jam Nut: 1/2" Hex
- Knob Set Screw: 1/16" Allen
- Supply Current: 5 Vdc
- Over mold weatherproof body with 12" leads, 1 Red (Supply Voltage 5Vdc +/- .5), 1 Black (Ground), 1 White (Output)
Application: Universal โ verify fitment for your setup. This is a performance/fabrication component not tied to a specific vehicle year/make/model.
Manufacturer Part Number: 30-2056
Images are for illustrative purposes only. Actual product may vary.
Emissions Note: This product is not CARB approved and is not legal for sale or use on pollution-controlled motor vehicles in California, or in states that have adopted California emission standards. It is intended for off-road / racing use only. It is the responsibility of the installer/end-user to ensure compliance with all applicable federal, state and local emissions regulations.
โ WARNING (California Proposition 65): This product can expose you to chemicals which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
